Description

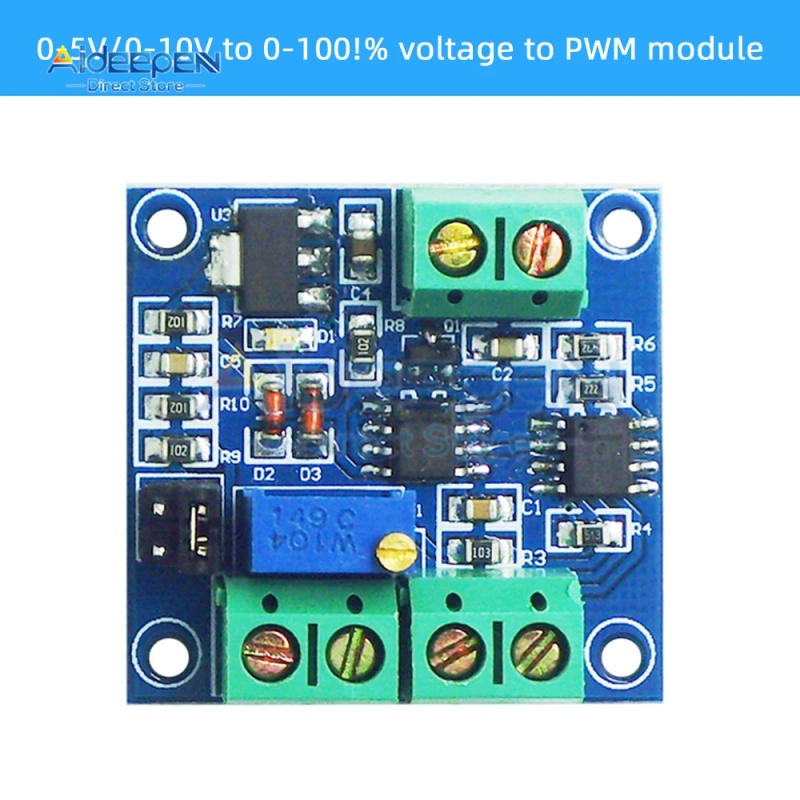

• Product selling level 1: Wide range of functions 2: Easy to operate, can be fine-tuned by means of potentiometer 3: The module is small, clean to hold and easy to use; 4: Adopt single chip embedded technology; 5: Simple and easy to understand Product parameters 1 Adopt single chip embedded technology; 2 Easy to operate, would be fine-tuned through potentiometer; three Select various input voltage ranges through the quick circuit; four The module is small, smooth to carry and use; 5 Module working voltage: DC5V-12V; 6 Conversion range: 0-5V/0-10V voltage is switched over to 0%-100% PWM; 7 Allowable error: 1%-3%; 8 Output PWM amplitude: 5V 9 Output PWM frequency: about 50KHz (1) VCC: Working strength supply 5V-12V (2) GND: working power ground (3) VIN: Input voltage 0-10v (4) GND: Input voltage floor (5) GND: output PWM ground (6) PWM: output PWM (7) Operation instructions Connect the working voltage to VCC and GND, no longer reverse, so as to not damage the board and machine (8) Connect the controllable voltage to the VIN terminal, the voltage range is split into 0-5V and 0-10v in line with the chosen mode (9) The output on the PWM terminal is PWM (10) The obligation cycle would be adjusted through adjusting the voltage (11) The accuracy can be controlled by way of adjusting the potentiometer record 1*Voltage to PWM module

•
•
•
•
•
