Description

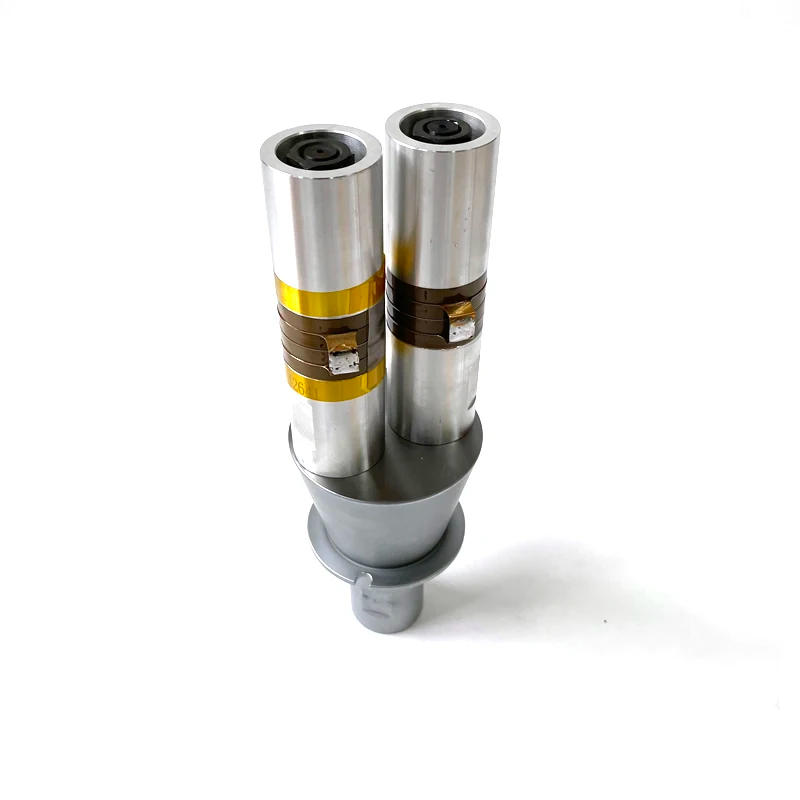

• 20K 3200W High Power Ultrasonic Welding Transducer With Dual Head Ultrasonic transducer is also known as ultrasonic vibrator, and the whole after connecting the transducer and horn is called vibrator. It is a device that realizes the mutual conversion between electricity and mechanical energy (acoustic vibration) by means of technique of the piezoelectric influence of piezoelectric ceramics, and is amplified throughout the front and rear radiation conceal blocks that match the acoustic impedance the horn is a passive device, it does not produce vibration itself, but transmits the enter vibration after changing the amplitude, completing the impedance transformation transducers can produce regular vibration under the excitation of electrical field, however the amplitude is always about 10μm. Such amplitude is rarely satisfactory to immediately total the welding and processing procedures, after the transducer is attached to a fairly designed horn, the amplitude of the ultrasonic wave would be changed in a massive range. As prolonged because the materials power is sufficient, the amplitude can exceed one hundred μm. Ultrasonic transducer composition:1. Middle piezoelectric ceramic detail 2. Front and rear steel hide 3. Prestressed screw 4. Electrode sheet 5. Insulating tube form of sandwich transducer generates stable ultrasonic waves when the load changes, which is a comparatively basic and leading strategy to obtain an influence ultrasonic power supply to numerous designs, the key varieties of ultrasonic transducers are:1. Column variety 2. Inverted horn range three Steel again hide diversity 4. Intermediate aluminum sheet type The ultrasonic transducer conducts ultrasonic waves to the plastic processing components through the welding head, just so the two plastic joints are subjected to ultrasonic waves to supply violent friction, and the friction warm temperature melts the plastic joints to complete the gluing. This technology has some super advantages of prompt velocity and agency welding seams, and more importantly, it's going to automate the manufacturing and processing of plastic products. Ultrasonic plastic welding mechanical device can perform plastic welding, embedding, forming, riveting, spot welding, cutting, stitching and other operations. As prolonged because the welding head is changed, one mechanical device can be used for a number of applications. Our company makes a speciality of the manufacturing of ultrasonic welding transducers. This product has immoderate performance, lengthy life, and good welding effect. The ultrasonic used in plastic processing, the existing working frequencies are 15KHZ, 18KHZ, 20KHZ, 40KHZ. The precept is to use the peak function of the longitudinal wave to transmit the amplitude to the distance of the plastic part. Under pressure, the two plastics The molecules within the touch elements of the elements or diverse components and the plastic substances collide with each other to melt, in order that the plastic in the contact operate is fused, and the processing objective is achieved. Ultrasonic welding transducer for the ultrasonic processing of thermoplastic glue makes use of the high-frequency friction between the operating joints to quickly generate heat between molecules. When the warmth is sufficient to melt the work, the ultrasonic vibration is stopped. At this time, the working joint The noodles are melted and solidified to complete the processing procedure. The frequencies veritably used for plastic processing are 20KHZ and 15KHZ, and their frequencies are outside of human hearing, so they are known as ultrasonic waves. Ultrasonic welding machines needs to be utilized in the electronics industry, stationery industry, transportation equipment, toys, cosmetics, motors and diversified supplies reminiscent of PP, PE, ABS, and acrylic. （External sizes）（Electeomachanical characteristic） SpecificationConnect ScrewCeramic diameter（mm）Quantity of Ceramics（pcs）Resonance Frequency（KHZ）Resistance（Ω） Yellow Ceramic Black Ceramic Input PowerMax Displacement（um）PLS-6015-4C-SiM16*1*1 420011PLS-6015-4C-QuM16*1*1 260011PLS-5020-4C-SiBS3/8504201511500-1200013500-1400015008PLS-5020-4C-SiBS3/8504201519000-21000 20008PLS-5020-4C-TrM16*1 32008PLS-5020-4C-TrM16*1 17500-1800032008PLS-3828-4C-SiBS3/838428158000-8500 10005PLS-3035-4C-SiM8 8004PLS-3040-4C-SiM10*1 8002

•
•
