Description

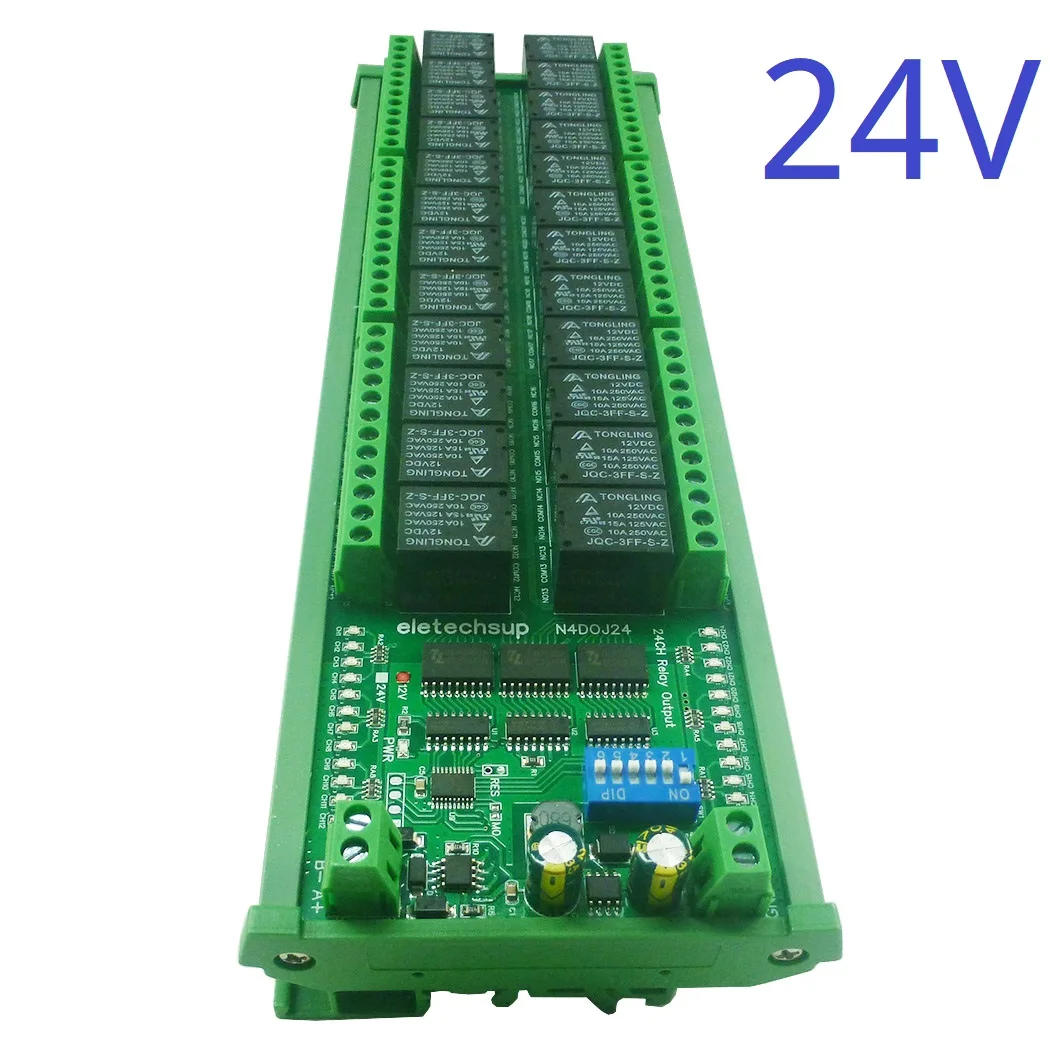

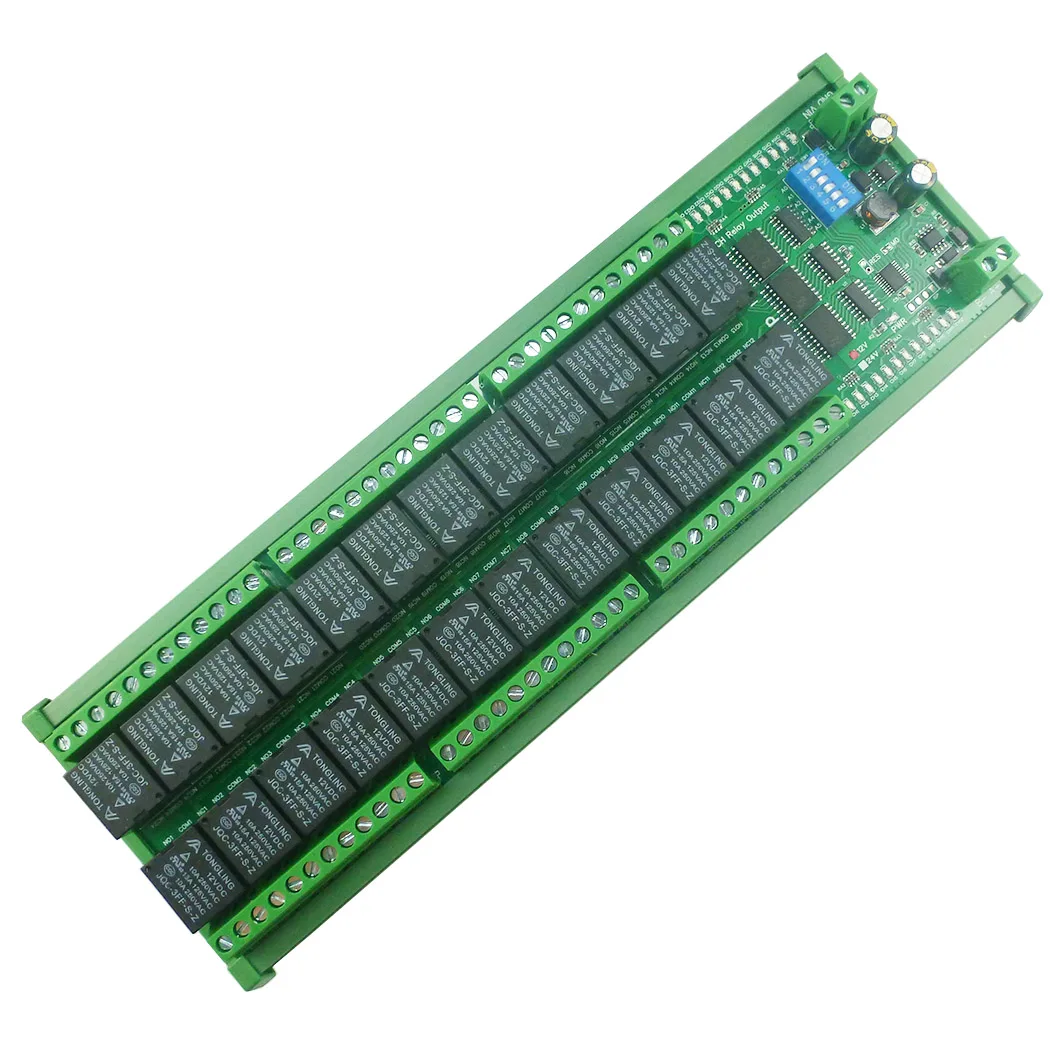

• N4DOJ24 is a 24-channel RS485 relay module designed and produced by eletechsup It has the ensuing features: 1 RS485 deal with is set through DIP switch, which is handy for atmosphere and viewing leading parameters 2 Using the traditional Modbus Rtu protocol, it may be utilized in commercial management conditions comparable to laptop PLC touch screens 3 RS485 interface with TVS anti-surge protection, strength overcurrent protection, anti-reverse connection defense four Using 10A excessive recent relay, it would directly pressure maximum loads five NC COM NO 3 touch outputs, can be utilized in more circumstances 6 Two MODBUS RTU commands would be chosen through the M0 jumper Features: 1:DC 12V (12V Version),DC 24V (24V Version) 2 recent (all relays closed) 12MA, 1 relay open 40MA, 2 relays open 69MA, three relays open 95MA,4 relays open 122MA,5 relays open 149MA,6 relays open 174MA, 7 relays open 200MA,8 relays open 226MA,and so on 3: 24channels 10A relay switch outputs 4: Support typical Modbus RTU command, function code: Command 1 (default): write 06/16 read/03; Command 2 (solder M0 jumper): write 05/06/15/16 learn 01/02/03/04 5: With hardware Reset function, with TVS anti-surge defense 6 Under the MODBUS command mode, it will help up to 64 devices in parallel 7 The default baud price is 9600BPS The baud price can be chosen by way of Conmand 2400 4800 9600 19200 38400 57600 115200BPS 8 The parity could be none parity, even parity and abnormal parity 9 The data sending and returning time would be set,with a maximum cost of 1000ms 10 Size: 257 * 82*40mm(with Din Rail Box) 11 Weight: 515g(with Din Rail Box) 12 Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC DIN rail Box parameters: Product model: UM72 Color: Green Width: compatible for PCB board width UM72(72mm) Insulation grade: flame-retardant VO grade Backplane length: appropriate for 254 mm PCB forums Net weight: 165g Installation: DIN35 and C45 rail For more information, please contact me Application PLC DO growth board Smart Home,Home Automation ,Wiser Home; PTZ CCTV Camera Security Monitoring Identification system; Automatic curtain control

•
•
