Description

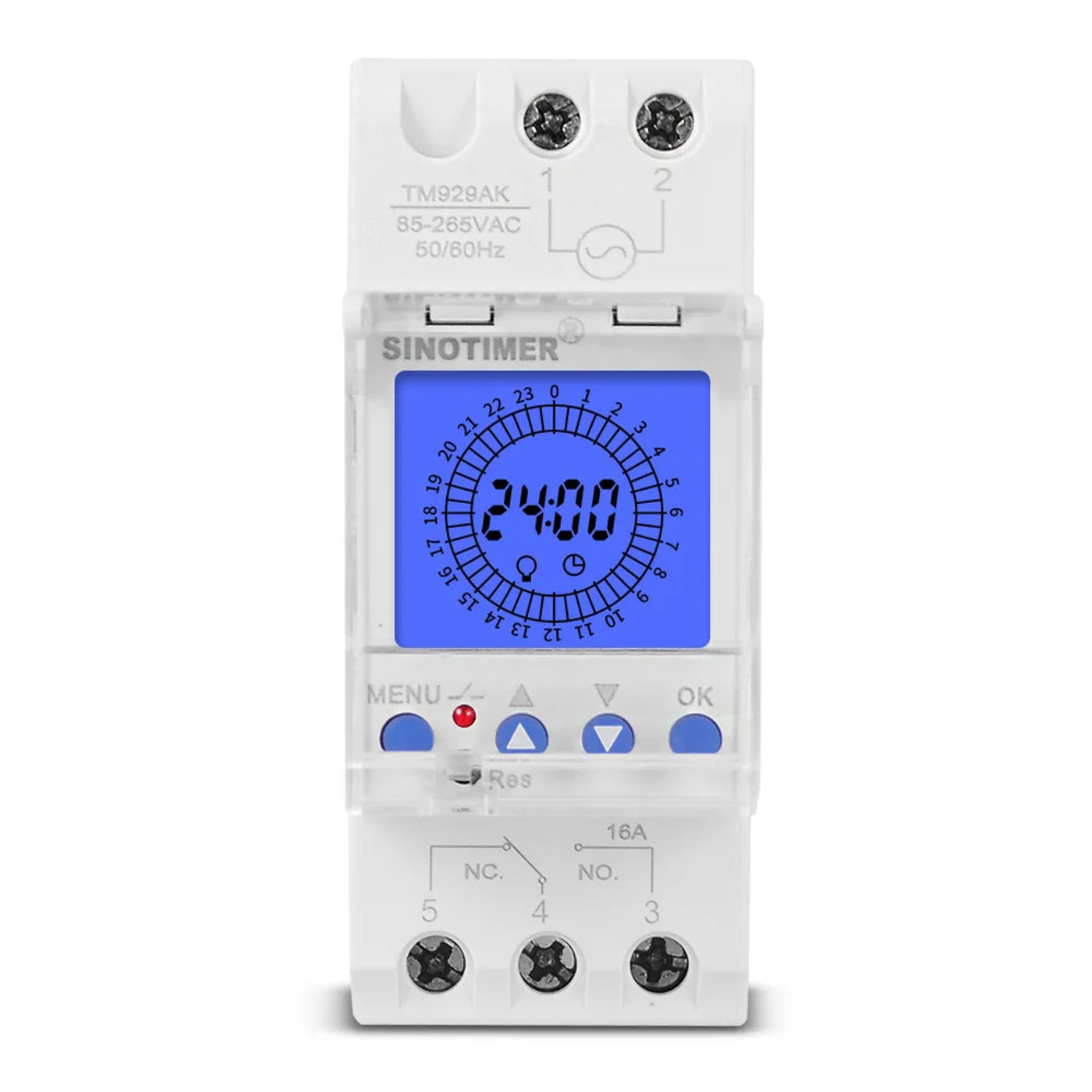

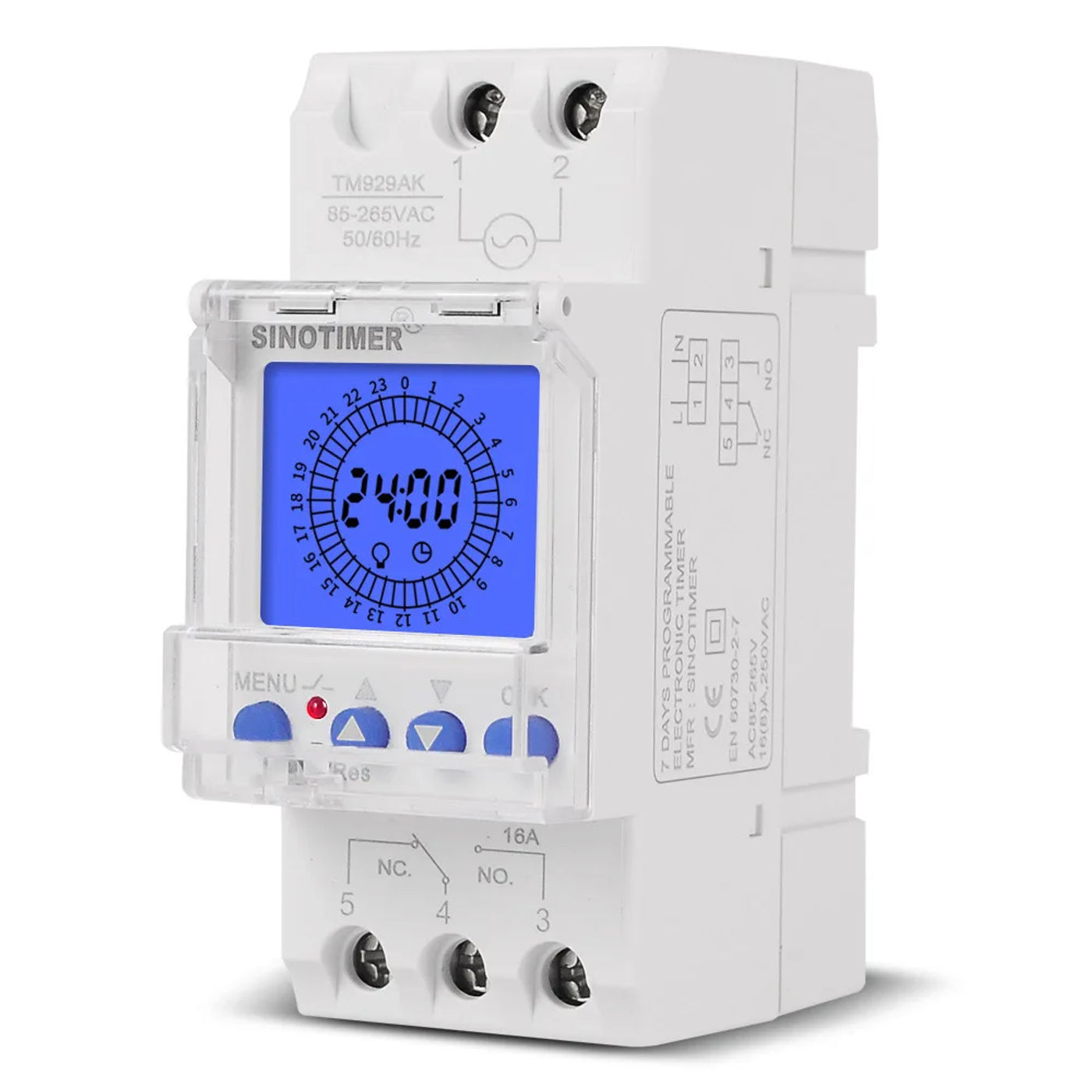

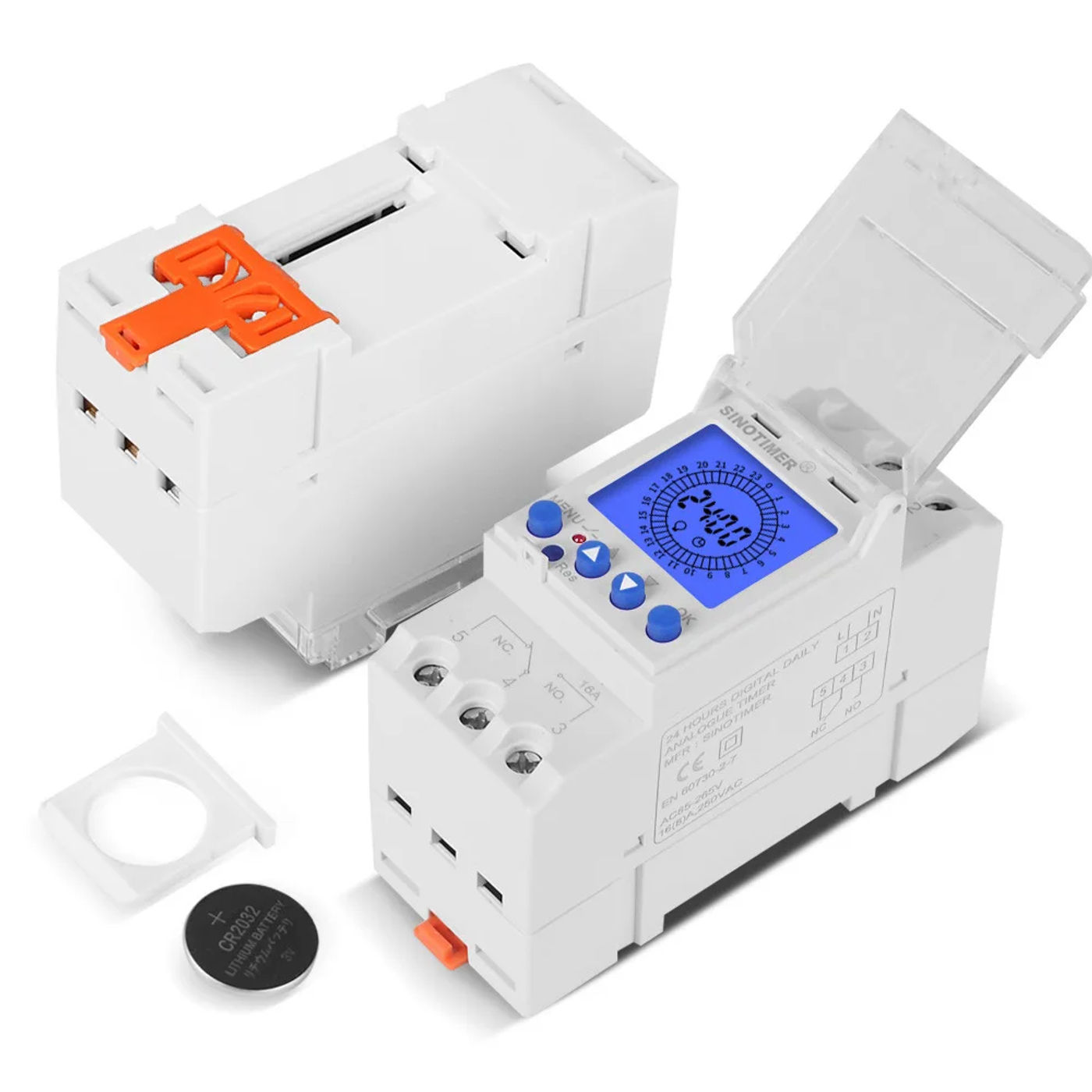

• 24hours Digital Analogue Din Module Time Switch AC85-265V Backlight Large LCD Display Industrial Timers Controller 16A 30A Relay Specifications: Model quantity : TM929AKL/TM929BKL Power delivery : 85~265V 50/60Hz Load : 16A/30A Programs : 96 on/off Setting range : 15 minutes to 24 hours Setting Min period : 15 minutes Display : LCD backlight Dimensions : 86*36*68 Installation : 35mm DIN Rail Functions: 1 reveal 2 Timer 3 backlight(when the timer is on,there is no backlight,but when the timer is off,there is the backlight on it,and after 5s the backlight will disappear) Note: TM929AKL 16A is with replaceable battery CR2032 30A is with within battery and the battery isn't replaceable wiring diagram is assorted 1 Due to the light and display screen difference, the item&;s color could also be barely diversified from the images 2 Please allow 1mm-1cm differences due to handbook size Package Included: 1x Timer Switch

•
•
•
•
•
