Description

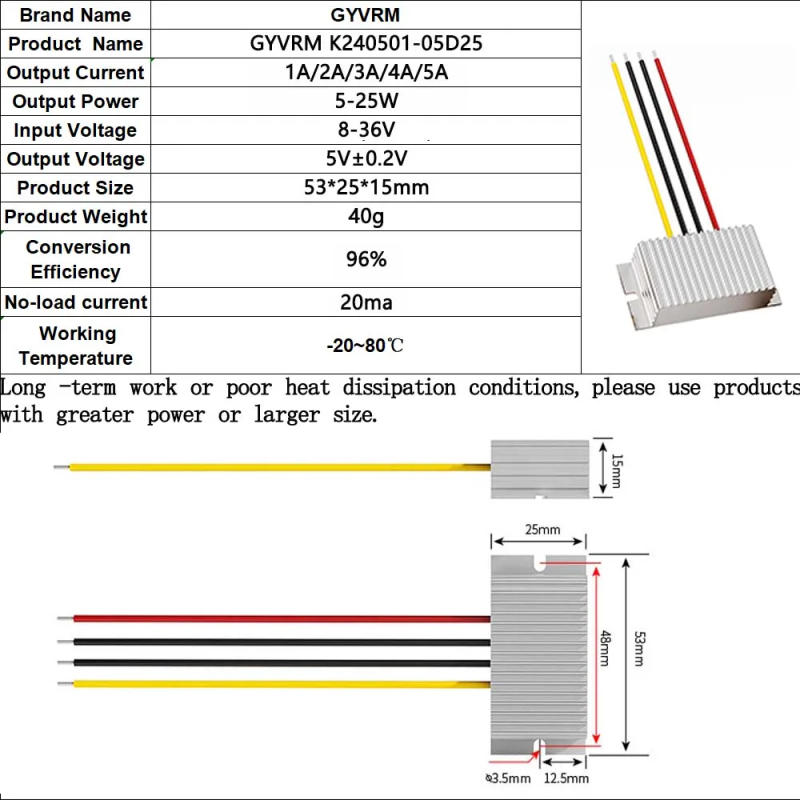

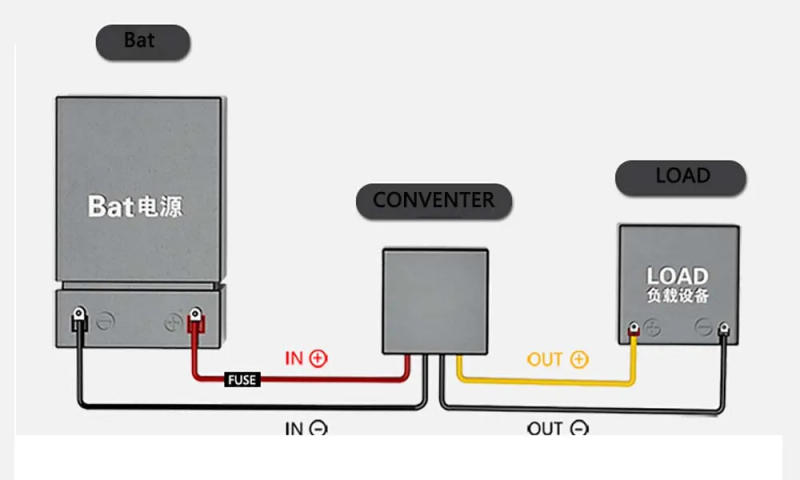

• 24V to 5V1A-5A 12V to 5V 5A 25W Power Converter Input Voltage of 8-36V DC DC Step-down Module Instructions Instructions Applications Wide fluctuate of applications: Industrial automation management Research equipment, LED lighting, industrial management equipment, automobile equipment, strength equipment, instrumentation equipment, medical equipment, refrigeration empty purifier, Electronic refrigerator, liquid crystal display, LED display, audiovisual product, safety imported pc chassis, electronic merchandise and assorted devices and other fields User's Manual The 12V24V battery voltage is switched over to a 5V DC voltage Precautions (Uncertain installations, please touch our corporation before installation) !!!Long-term use cannot be solely loaded, please lower energy or prefer more powerful products, preferrred 50% of maximum strength 1 Make sure that each one the polarity is correct, and the anti-negative conversion converter (except for enter tape reverse protection) 2 Make sure the cable is natural copper wire, the input and output cables cannot exceed 2 meters, and the output could be eliminated by means of more than 2 meters The voltage will be mirrored If the road is extended, you must increase the line diameter according to the corresponding a number of three The cable needs to be related to the thread, please check with the wire diameter length and securely related four The enter terminal is required to attach the fuse or air switch, and also you should select the corresponding fuse or switch] (except the enter belt fuse) 5 Make sure the battery means is massive adequate to provide satisfactory energy If the enter calories isn't enough, the voltage may be reduced 6 Make yes the installation environment is well ventilated, so as not to preserve over temperature protection, restrict recent output 7 Cannot connect directly to photo voltaic panels or wind wind mills 8 Non-charged models cannot be charged battery and lithium batteries 9 When connecting the input verify with DC strength supply, the enter should not exceed the voltage range of the battery, and no overvoltage protection (can be customized) Installation step (four lines or 4 / five terminals) 1 Turn off all power materials and cargo switches 2 Before the wiring, pay attention to all fantastic and detrimental poles three Connection (OUTPUT-) to load negative, connection (OUTPUT +) to load wonderful 4 Connect the fuse or air switch to (Input +) input the fantastic cable, then connect (Input +) to the battery positive, connect (Input-) to the battery unfavorable electrode 5 Make yes all superb and unfavorable connections are right (do no longer reverse, reverse the burnback converter), turn on the ability and cargo swap (Note: If the ACC port is connected, connect the ACC to the ignition switch: If you would not have to apply the ACC function, connect the ACC to the (Input +) battery "positive) troubleshooting 1 Output no voltage, please verify if all traces are connected firm, the battery is enough, whether the fuse is burning 2 Output the voltage, test if the weight beginning recent is too large, the ventilation is good, whether the outer casing is heated, whether the cable and the thread are selected and installed, whether it's less than 2 meters, and the enter battery has enough energy

•
•
