Description

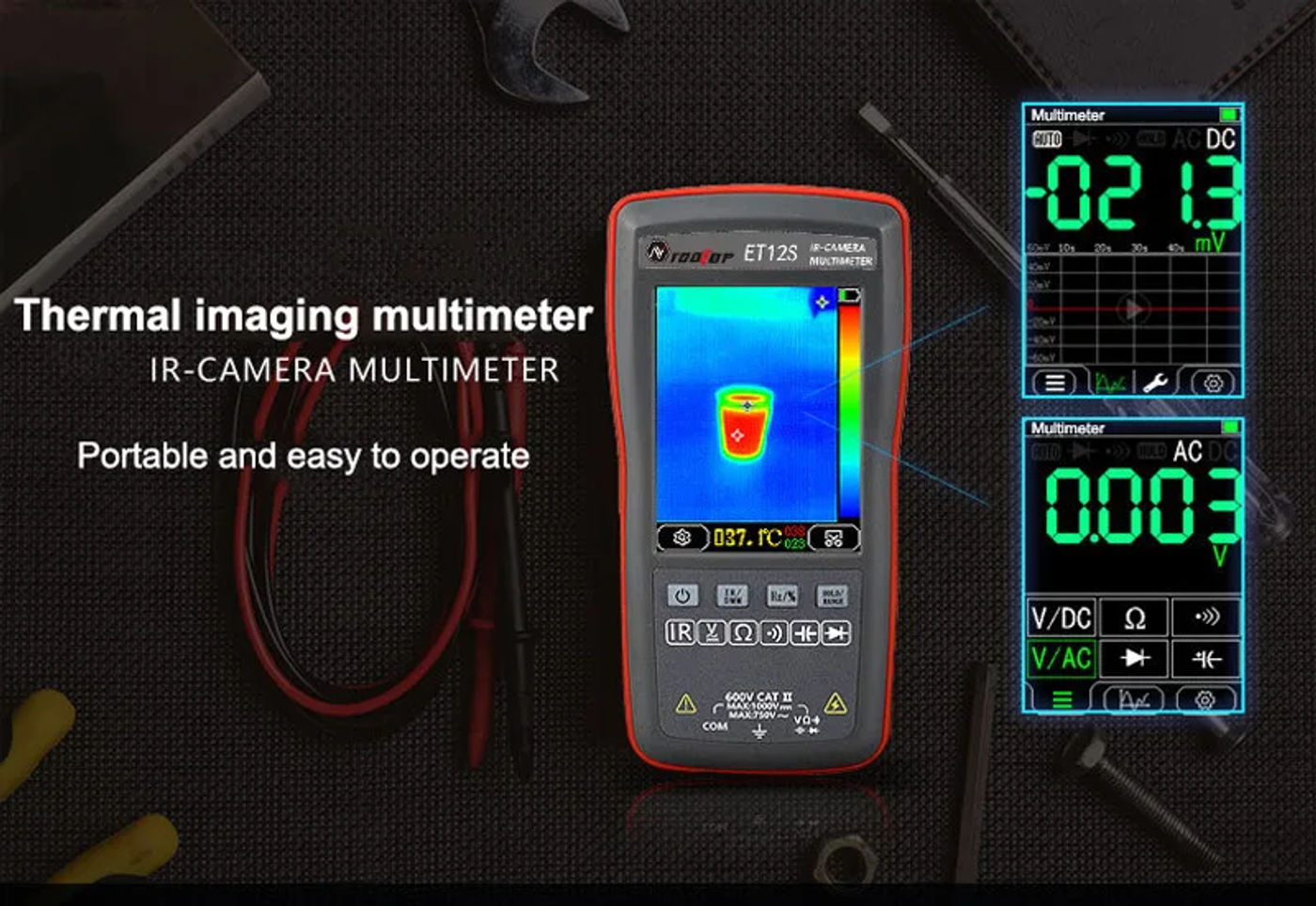

• This meter is incorporated the function of thermal imager and multimeter, with 2 coloration display, with 320*480 high resolution, which makes it would relevant to varied measurements under advanced surroundings Support the multimeter functions of AC/DCvoltage, resistance, capacitance, diode measurement, and circuit on-off check With high accuracy, excessive speed, high sensitivity, and can be extensively utilized in trying out and debugging paintings in the fields of electronics, communications, computers, etc, is a nice desire for electricians and upkeep technicians Features: 【2 Color Display】: 2 shade display, with 320*480 excessive resolution, resistive touchscreen operation, with one click on operate 【2in1 Design】: 2in1 design, hand-held thermal imager with excessive thermal imaging pixel, 6000 counts electronic multimeter, help thermal imager and multimeter dual modes switching 【Multifunctional Design】: Support AC/DCvoltage, resistance, capacitance, diode measurement, and support circuit on-off check Both Chinese and English would be set depending on your reading desire 【PC Connection】: Under USB mode, it's possible to move domestically stored thermal imaging photos and the multimeter mensurement data recording by records chart And displayed at the computers via PC utility for extra handy to again up and analyze 【Battery Management】: It is built-in 850mAh li-thium battery which is supporting USB charging, with computerized display screen flip off and automatic strength off functions 【Wide Applications】: With excessive accuracy, high speed, high sensitivity, and a number of dimension modes, and may be extensively utilized in checking out and debugging work in the fields of electronics, communications, computers, etc Specifications: Name: Thermal Imager Multimeter Model: ET11S, ET12S (optional) Thermal Imager Parameters: Sensor: Uncooled focal aircraft lmage seize frequency：16Hz(ET11S) ; 20Hz(ET12S) Thermal imaging pixel: 24*32(ET11S) ; 90*120(ET12S) FOV:55°(H)*35°(V) Emissivity: zero adjustable Measuring ranges：-40~ +300℃(ET11S); -20~ +400℃(ET12S) Mode:automatic achieve Temperature dimension error：>0℃:+2℃/+2%; ≤0℃: +5℃/+5% Display temperature accuracy：0°C/0°F Multimeter Parameters: Maximum input voltage：1000VDC Maximum AC input voltage：750V Maximum measured resistance：40MΩ Maximum measuring resistance of capacitance：100uF Duty cycle dimension ranges：0%-99% Diode measuring ranges：0V-1 Maximum resistance of on-off detection：30Ω Counts： 4000 counts, Refreshes:3 occasions per second (ET11S) 4000counts, Refreshes：6 occasions according to moment (ET12S) Other Parameters: Display screen: 2 inches 320*480 Touchscreen: Resistive touchscreen USB interface: TYPE-C Storage Capacity: 3 Imaging Format: BMP Battery: 1 * integrated 850mAh li-thium battery Storage temperature: -20~60℃(-4~140℉) Working temperature: 0-50℃(32-122℉) Working humidity: <85%RH(non condensing) Item size: 134 * sixty nine * 25mm / 5 * 2 * 0 Item weight: 125g / four Package size: ET11S: 160 * 100 * 50mm / 6 * 3 * 1 ET12S: 185 * 160 * 40mm / 7 * 6 * 1 Package weight: ET11S: 150g / 5 ET12S: 270g / nine Model: ET13S Sensor: Vanadium oxide(VOx) Image seize frequency: 20Hz Thermal imaging pixel:192*192 Display image resolution：240*240 Field of view (Fov): 50(H) × 50(V)/72(D) Emissivity: zero is tunable and 0 is the default Measurement temperature range: -20℃ ~+550℃ Mode: Automatic gain Color Board: iron red, Rainbow, fusion, White Heat, White Heat highlights Temperature size error:±2℃ or ±2% Accuracy temperature display: 0 ℃/0 Multimeter parametars DC easiest input voltage: 1000V AC best input voltage: 750V Resistance best dimension resistance: 99Ω Capacitance best size capacity: 99 Duty cycle dimension range: 0% ~ 99% Diode size range: 0V ~ 3V On-off verify most resistance: 999Ω Display number:9999 counts, up to date about 3 times in line with second Other parameters of the gadget Display Screen: 2 inches, 320 * 480 resolution Touch Screen: Resistive touch display screen USB interface: Type-C USB Storage capacity: 3 picture format: BMP file Battery: Built-in lithium battery Storage temperature: 20~60℃ (-4~140F) Working temperature: 0～50℃ (32～122F) Working humidity: <85%RH (Non-condensing) Product size: 134 mm * 69 mm * 25 mm Product weight 130g (not including accessories) Packing List: 1 * Thermal Imager Multimeter 1 * One Pair Test Leads 1 * User Manual

•
•
•
•
•
