Description

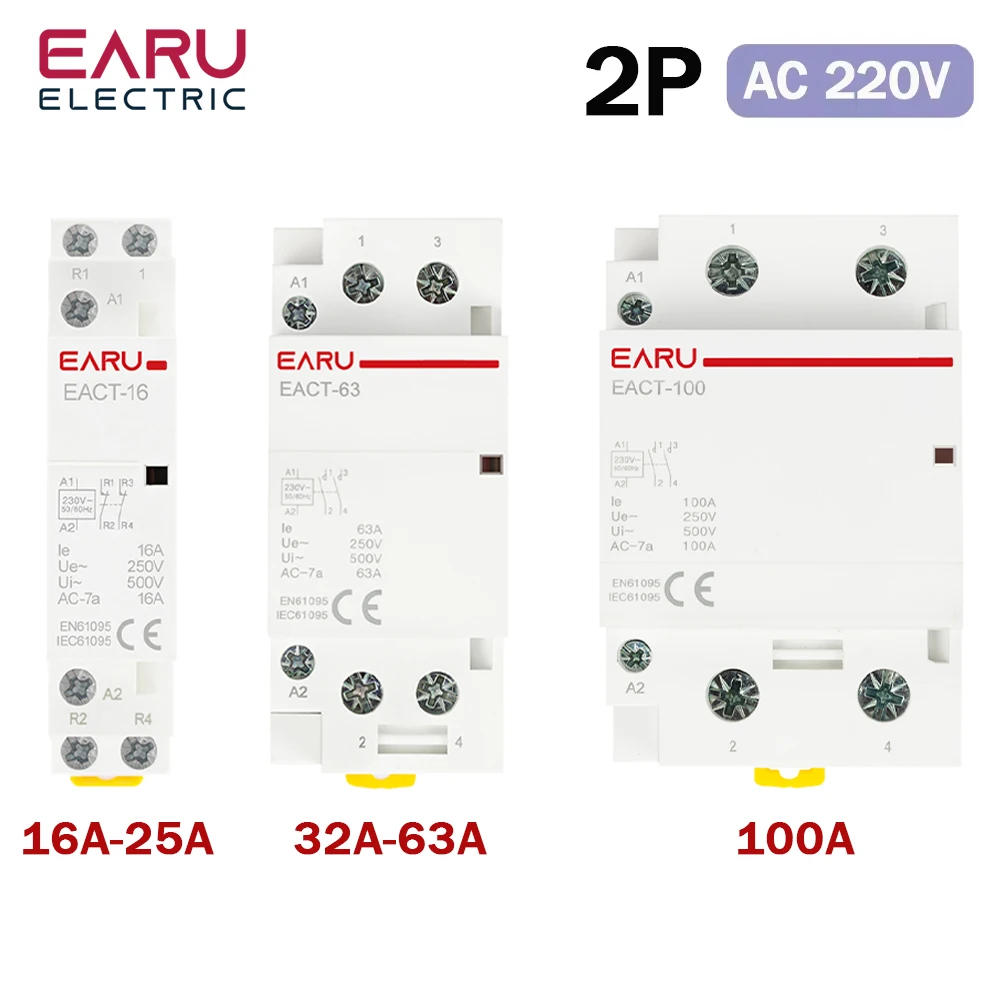

• Descriptions EACT 2P 16A/20A/25A/32A/40A/63A/100A AC220V/230V EACT 4P 16A/20A/25A/32A/40A/63A/100A AC220V/230V House preserve AC contactor is principally designed for AC 50Hz or 60Hz circuits with 230V working voltage in AC7a usage ,rated working voltage up to 230V, rated operating latest as much as 25A, Rated working voltage in AC7b usage , rated recent to 10A Using in breaking capacity under 6kA circuit For distance join or ruin the circuit Application :for home, apartment, hotel, automatic cut off or connect the ability Normal working and set up circumstances Ambient temperature:-5°C to +40°C,the common temperature not more than +35°C in 24 hours Altitude:no greater than 2000m Atmospheric conditions: the relative humidity of the set up position should be not more than 50% when the maximum temperature is +40°C:if under a decrease temperature,a larger relative humidity is permitted The monthly average minimum temperature within the wettest month shouldn't exceed +25°C and the monthly common maximum relative humidity of this month no more than 90%,the dew at the surface of goods brought on by temperature replace must be taken into account Class of pollution: class 2 Installation condition: class II Application instruction 1 Check whether or not the contactor concurs with the scope of utility and the operating condition before set up 2 During the process of putting in pull down the motion preventing element and put the contactor at the safe orbit then push up the motion,stopping factor to fix the contactor on the safe orbit avoid loosening and shedding pull down the motion,stopping aspect if you want to remove the contactor Caution a) sure the right mode of connection b) down the binding screw in the course of the connection

•
•
•
•
•
