Description

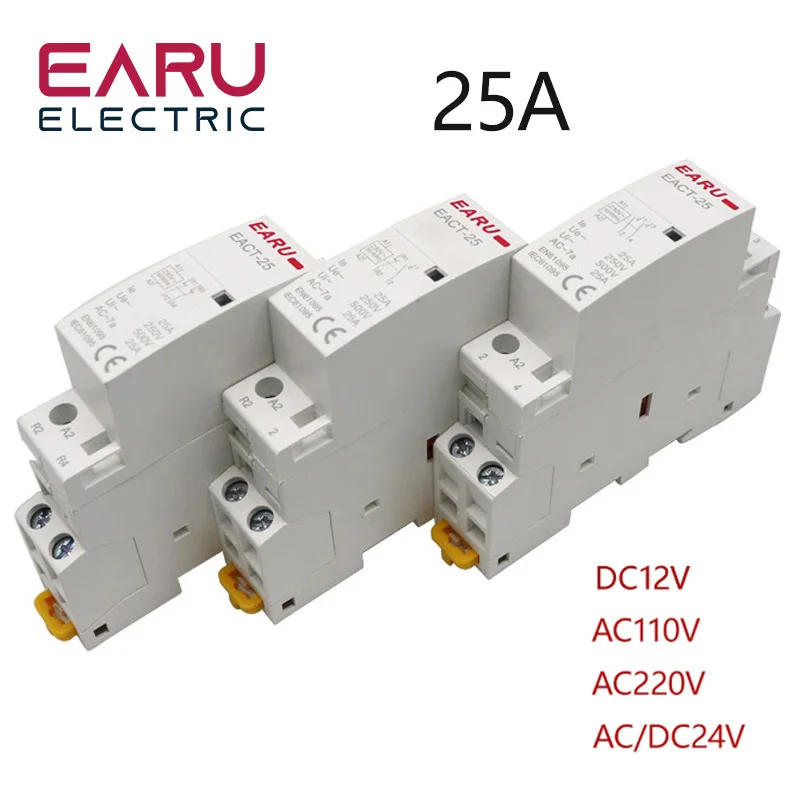

• Descriptions EACT25 House keep AC contactor is especially designed for AC 50Hz or 60Hz circuits with 230V operating voltage in AC7a usage ,rated working voltage up to 230V, rated operating current up to 25A, Rated operating voltage in AC7b usage , rated current to 10A Using in breaking means beneath 6kA circuit For distance connect or destroy the circuit Application :for home, apartment, hotel, automatic cut off or connect the flexibility Normal operating and set up conditions Ambient temperature:-5°C to +40°C,the average temperature not more than +35°C in 24 hours Altitude:no greater than 2000m Atmospheric conditions: the relative humidity of the installation position must be no more than 50% when the maximum temperature is +40°C:if below a lower temperature,a greater relative humidity is permitted The month-to-month common minimal temperature within the wettest month should not exceed +25°C and the monthly average most relative humidity of this month no more than 90%,the dew at the surface of products attributable to temperature exchange needs to be taken into consideration Class of pollution: category 2 Installation condition: category II Application instruction 1 Check whether the contactor has the same opinion with the scope of application and the working condition before installation 2 During the process of installing pull down the movement stopping element and put the contactor on the safe orbit then push up the motion,stopping factor to repair the contactor on the safe orbit avoid loosening and shedding pull down the motion,stopping factor if you want to eliminate the contactor Caution a) yes the right mode of connection b) down the binding screw through the connection

•
•
•
•
•
