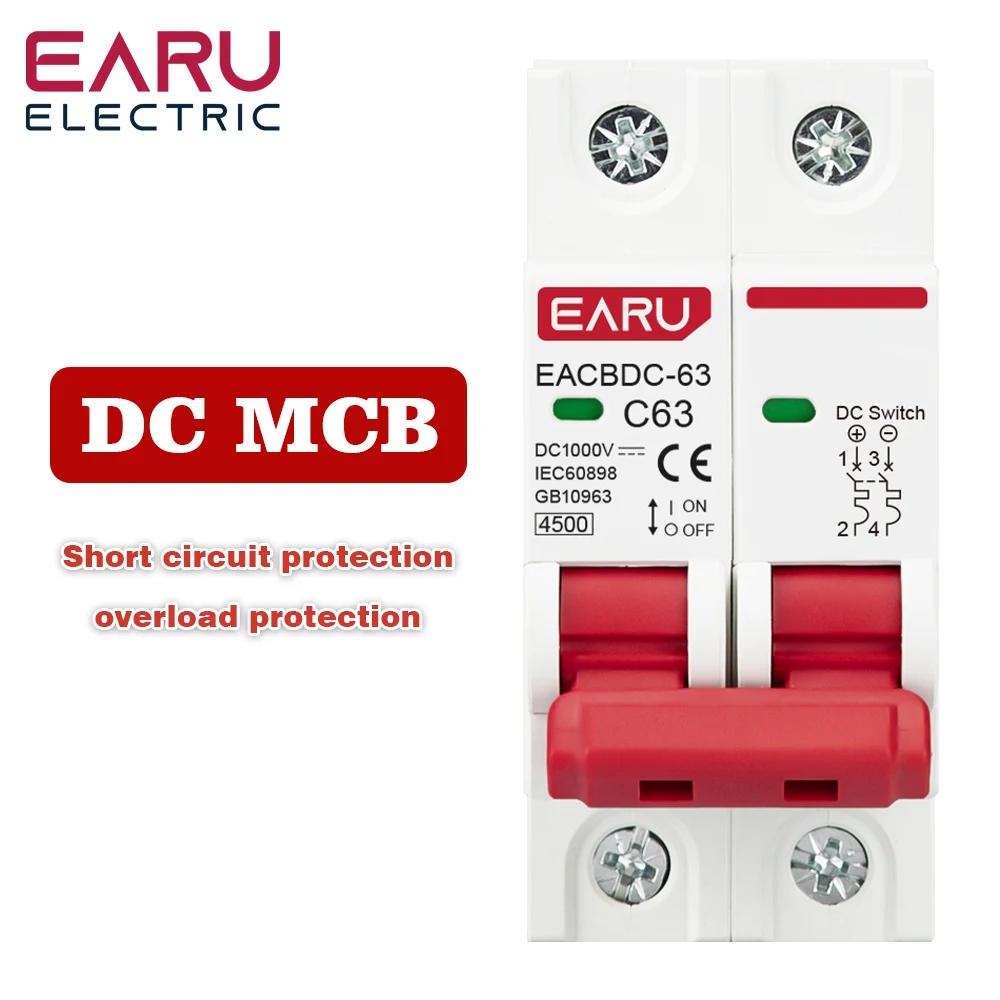

DC 1000V Solar Mini Circuit Breaker Overload Protection Switch 2P DC1000V Photovoltaic MCB PV
Our manufacturing facility can provide OEM/ODM Service,
if you need to circuit breaker together with your logo,
be happy to contact the seller!
Application
EACBDC-63 Series DC Miniature Circuit Breaker, observe to ranking recent 63A or less, Direct current rating voltage is 250V
for 1 Pole It is principally used for the overloading and short circuit protection in DC distribution system Equipment and
electric equipment It can be widely utilized in electric, post, traffic, mining enterprise and other forms of fields In
gift China, our merchandise within the case grade rating voltage is highest in comparison with an identical products Products
according IEC60898-1, GB14048 usual

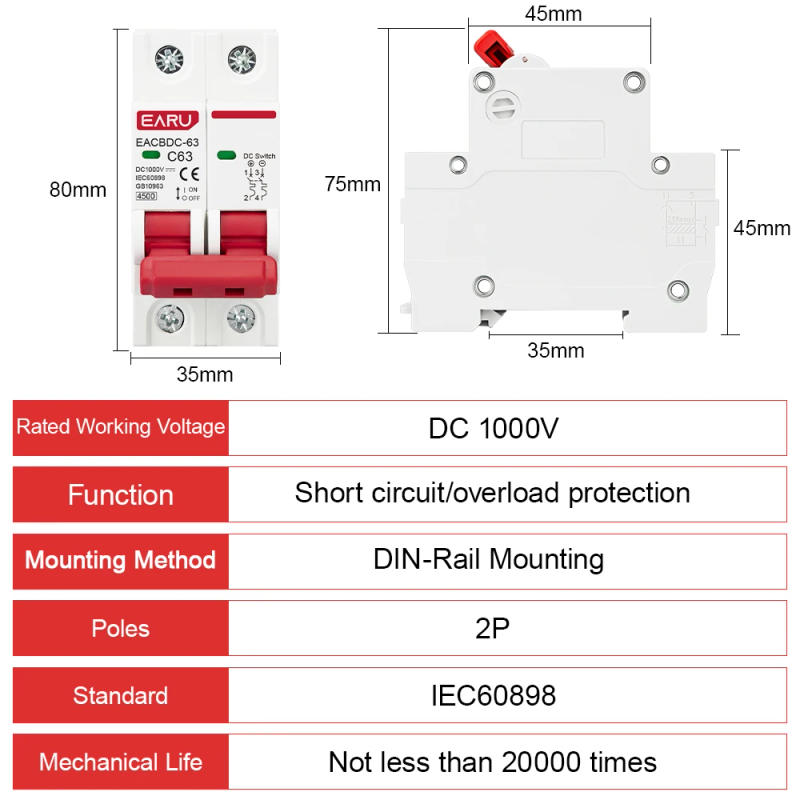

Specificaatios
Standard
EN60898(IEC60898) IEC60947-2
Rated latest
1-63A
Rated Breaking capacity
6 IEC60898(0~63A)
6,10,15kA IEC60947-2(0~63A)
Characteristic curve
B,C,D
Max fuse that may be linked to
100AgL(>10kA)
Selective grade
three
Working ambient temperature
-10℃ ~+40℃
Enclosed protecting class
IP20
Electrical existence
Not less than 8000 instances
Mechanical existence
Not lower than 20000 instances
