Description

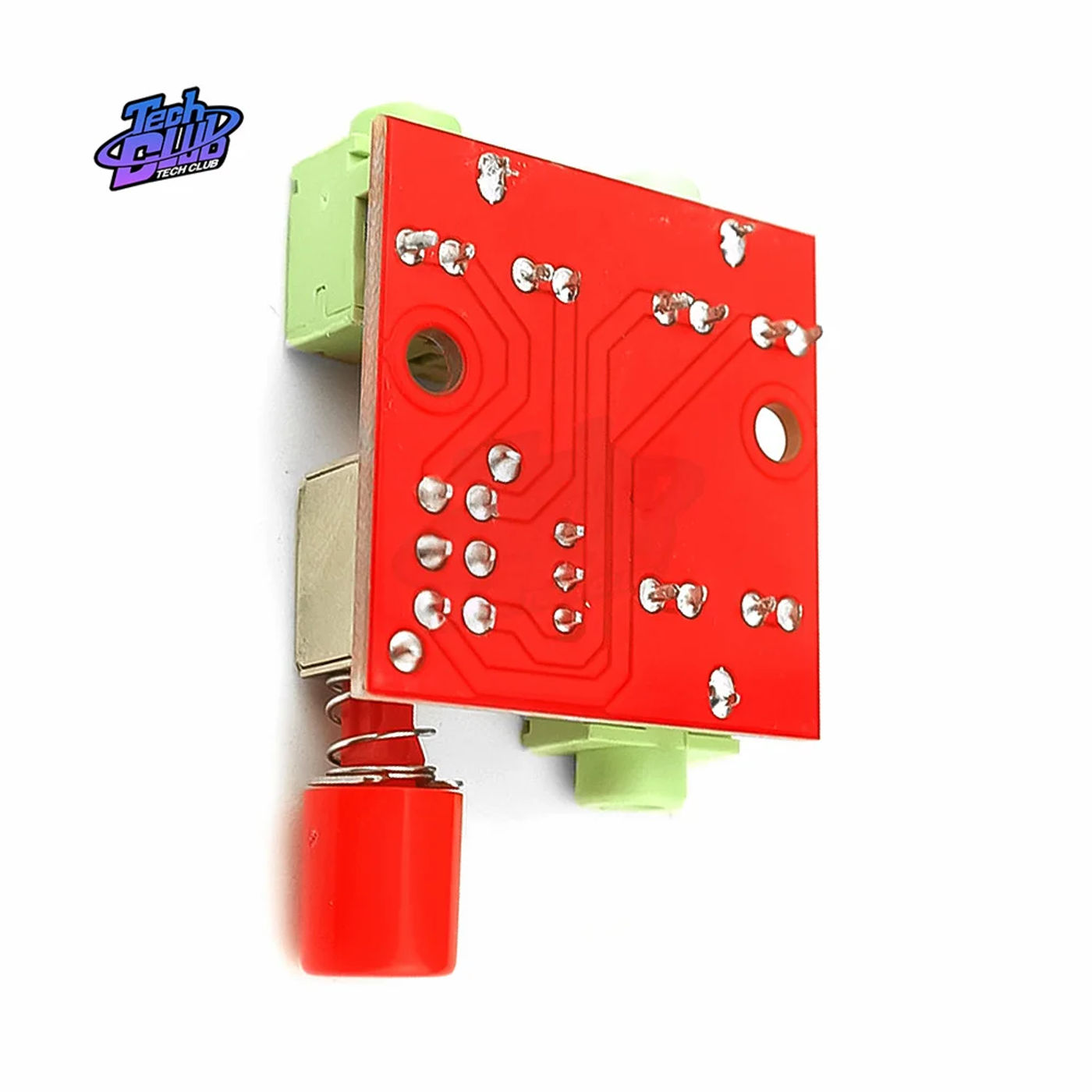

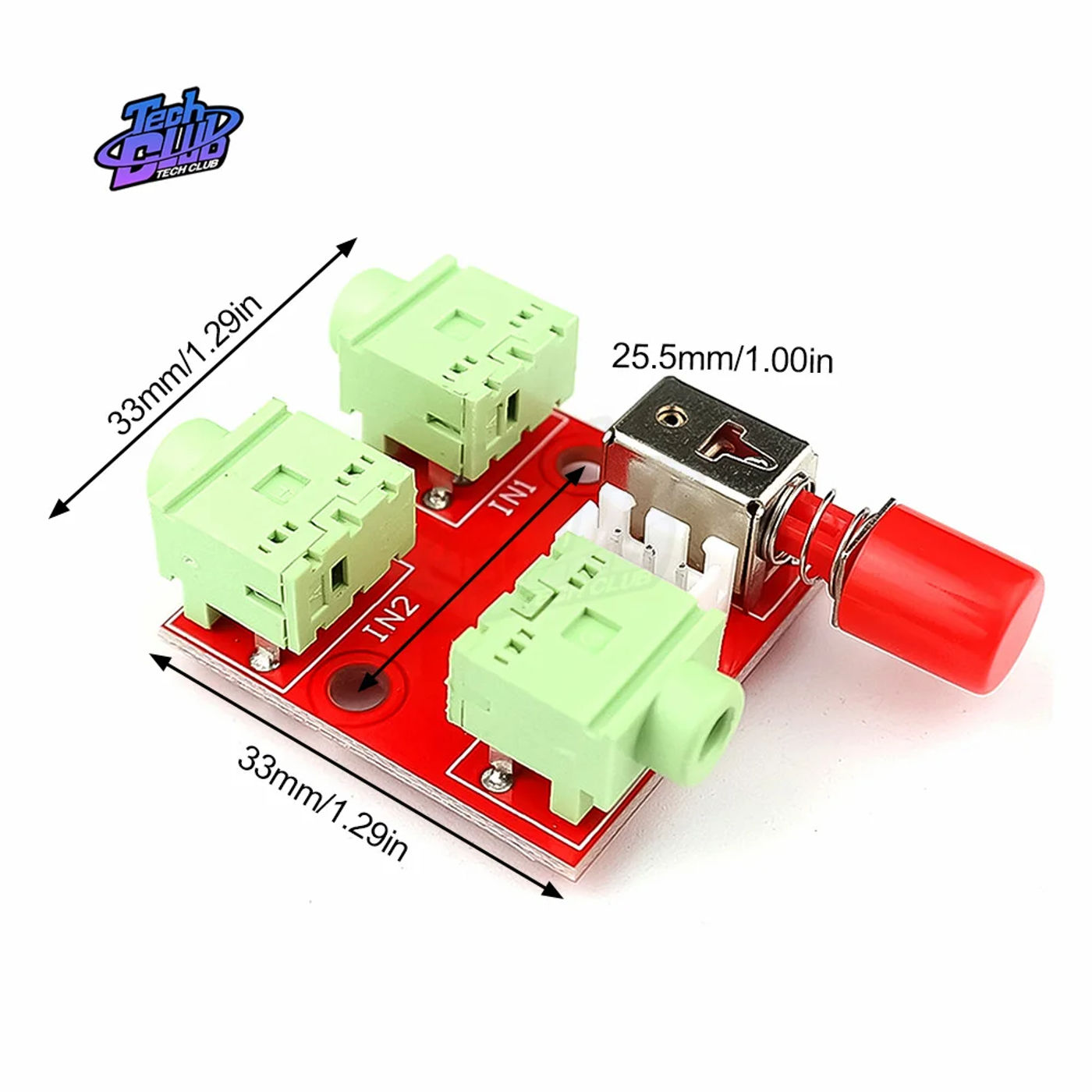

• three Headphone Jack Audio Input Signal SwitchTwo-way Dual-channel Audio Source Switch for Consumer Electronics Accessories Features: Small type factor smooth to function One-to-two mode, two-to-one mode, 2 ways to apply Adopt key swap design, no power supply required, Audio source input and output undertake three headphone socket (out end adopts 2 needle socket + 3 headphone socket, two are connected in parallel) Product parameters: Audio input and output: 3 headphone socket Seat: 2 Switch board pcb size: 33mm*33mm The distance between two screw solving holes is 25 How to use the two-way audio switching board: 1: One-to-two mode (two-channel enter from the OUT terminal, output from two IN terminals through a switch) 2: Choose one of the two (two units of indicators could be input from the two IN terminals, and output from the OUT terminal by switching the switch) Product List: 1X switching board

•
•
•
•
•
