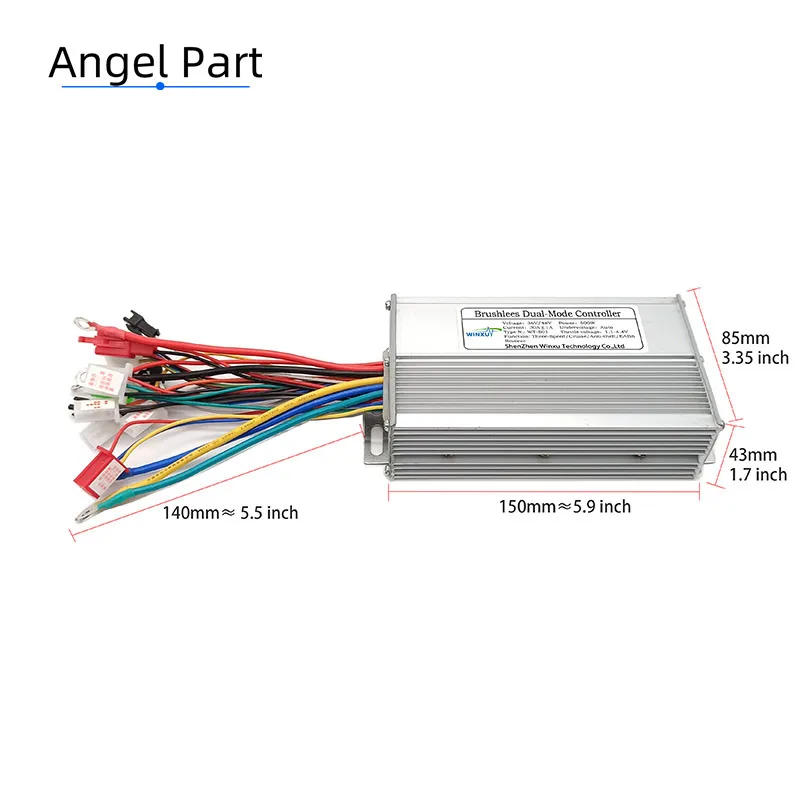

• For extra products, please visit our shop Packing list: 1 PCS of controller We are factory store and assist wholesale If you order a large quantity, please touch our online customer support and we will provide you with wholesale charge Electric Bicycle Brushless Motor Controller WinXu Tech brushless motor drive controller, robotically well matched with all motors on the market PRODUCT DATESHEET ●product size：150x33x80mm ●Rated Voltage：DC 36V 48V or 48V 64V ●Rated Power: 500W ●Rated Current:: 30A ●Low Voltage Protection: 30V 42V ●Standby Power Consumption: ＜5mA ●Housing Materials: Aluminium alloy ●Water proof: IPX6 ●Motor Matching： Brushlees Motor ●Display Matching: Ordinary LED & LCD show FUNCTIONS & FEATURES ●Super low noise: Reduce the motor torque ripple to minimal ;Achieve vehicle noise -Free vibration -Free and Comfortable driving feeling (Imitation torque ) ●High efficiency; Field orientated management (FOC)Driving know-how allows higher system efficiency ,Lower heat loss and longer driving mileage ●Multiple protections; Over-current protection ,Over voltage /Under voltage protection ,Overhead protection runaway protection ,Short-Circuitprotection Phase wire disconnect protection ,Blockage protection ●Flexible configurations; All the applications of the controller depend upon the purposes of shoppers Strong Power and Stable Quality Electric bicycle controller Aluminum Alloy Material/ Smooth Texture/ IPX7 Waterproof/ No Rust AI Intelligent Processing Chip, Stable Operation Automatic popularity of motor mode, automatic compatibility with all brushless motors, multi-automatic defense function High power controller for steady mountaineering 250W To 3000W multi-power mannequin available, stable using motor, excessive hiking performance and fast velocity WinXuTech Brushless Controller Suitable For Various Electric Bicycles/ Scooters/ Tricycles IPX7 deep waterproof, no fear of wind and rain WniXu Tech brushless collection controller adopts deep water resistant seal design, and the water resistant grade can attain IPX7 You do not need to worry about thunderstorm climate or driving in the water Pure aluminum alloy radiator shell, instant cooling and secure operation The controller uses aluminum alloy radiator as shell material Scientific research has came across that aluminum alloy materials can completely realize rapid warmth dissipation and cooling, keep the interior MOS in a low temperature state all the time, and lengthen the service lifetime of the controller Product Size Small figure, huge operate Perfect natural aluminum alloy material, using industry traditional size, compatible with extra electric bicycles/scooters Controller Wiring diagram Support tradition provider Please touch online customer service Controller function description Please stick with the stairs described under to attach the controller to your Ebike motor 1 Motor A Brushless motor are often 3 motor wires (thick blue, green, yellow) and five Hall wires (5P connectors) Please join the three motor wires ABC of the controller for your motor wires, please word that the same colours are linked together 2 Hall sensor In the second step please connect the 6P Hall sensor connector to the Hall wire of your motor, if the connectors are usually not a similar you would cut the wires to attach Please notice that a similar coloration needs to be connected correctly Red is 5V+ Black is 5V adverse three Throttle Red: 5V + pole, white (green): throttle signal, black: 5V - pole 3P male connector Please join the controller throttle wires in your throttle connector, in case your throttle connector isn't the identical because the controller connector you may reduce the wires to connect, please notice the 5V + and - and sign wires Please take care to attach the wires correctly four three speeds Blue: high speed, black: negative, brown: low pace 3P male connector High speed: pace 120%, medium speed: pace one hundred pc Low speed: pace 80% Please hook up with your 3 speed swap wires as described above, the controller uses medium velocity when vacant and never connected If your 3 velocity swap connector is varied you could reduce the wires to connect, please take care to attach wisely five Reverse Grey and black cord 2P male connector Please connect to your reversing switch, in case your connectors usually are not the same, you could minimize the wires to connect This function is when the opposite switch is on, the electric scooter/bike motor will turn in reverse, at a low pace 6 Low level brakes White and black wire 2P male connector The controller has 2 brake twine connectors, please connect with your left and right handbook brakes When the black and white wires are shorted together, the controller will cut off strength to the motor 7 Automatic cruise Pink cord and black cord with black male and female connectors Please connect with your throttle cruise button cable If the connectors are different, you possibly can minimize the wires to connect This function suggests that when switched at the pace might be fixed at the pace you had before you switched at the automatic cruise If you do not use this function then you can leave this connector unconnected 8 Alarms Red, blue, yellow, 3 twine 4p red connector Please hook up with your alarm 4p connector, this is the alarm signal management function connector, if you do not have this function then you definitely can depart it unconnected 9 Alarm power delivery Red:power supply +, black: negative, 2p crimson feminine connector This connector is the alarm strength supply, which is connected to the alarm power supply and is used to strength the alarm 10 Speed reveal Green cord Connected to the speed twine of your ebike/ebike LCD display, this operate uses the motor section cord to measure speed Please use the normal velocity reveal If your ebike doesn't have this function, then you definately can leave it unconnected 10-1 Pointer velocity exhibit This purple bullet female connector is a one cord communique speed exhibit gauge, if your electrical bike uses a one wire protocol pace display, connect the speed cable to this 11 Power lock The thin red cord on the strength input connector Please hook up with your key lock enter and the main lock output wire to the negative terminal If your key lock connector is different, you might lower the twine to connect If you would not have an influence lock to your e-bike Then you may connect it directly to the ability enter + 12 Power enter Thick red: strength input +, black: power input - Thick purple and thick black wires 3P male connector Please connect to your battery, please note that pink is the + pole and black is the unfavorable pole Special care should be taken when connecting, do not join the incorrect energy input + and -, otherwise you will damage the controller Please pay particular consideration to this step thirteen Automatic detection (learning) White wire connector When you have performed all of the above, please go away your Ebike motor wheel putting and turn at the key lock and power input, quick the auto-detect cord for 10 seconds while the controller assessments your motor parameters, after 10 seconds please disconnect the auto-detect If your motor is working in reverse, then you definitely connect the auto-detect cable for one more 10 seconds to retest and select the right motor working course After this operation you've completed all connections You can use your e-bike usually 14 High point brake If your electrical scooter uses high level brakes, you then can use the high point brakes and cancel the low level brakes If you are ordering one among our 24V/36V 350W controllers, please consult with the 250W controller link for directions on learn how to use it Product Process Details Display WinXuTech Controller Size Display

•
•
•
•
•
