Description

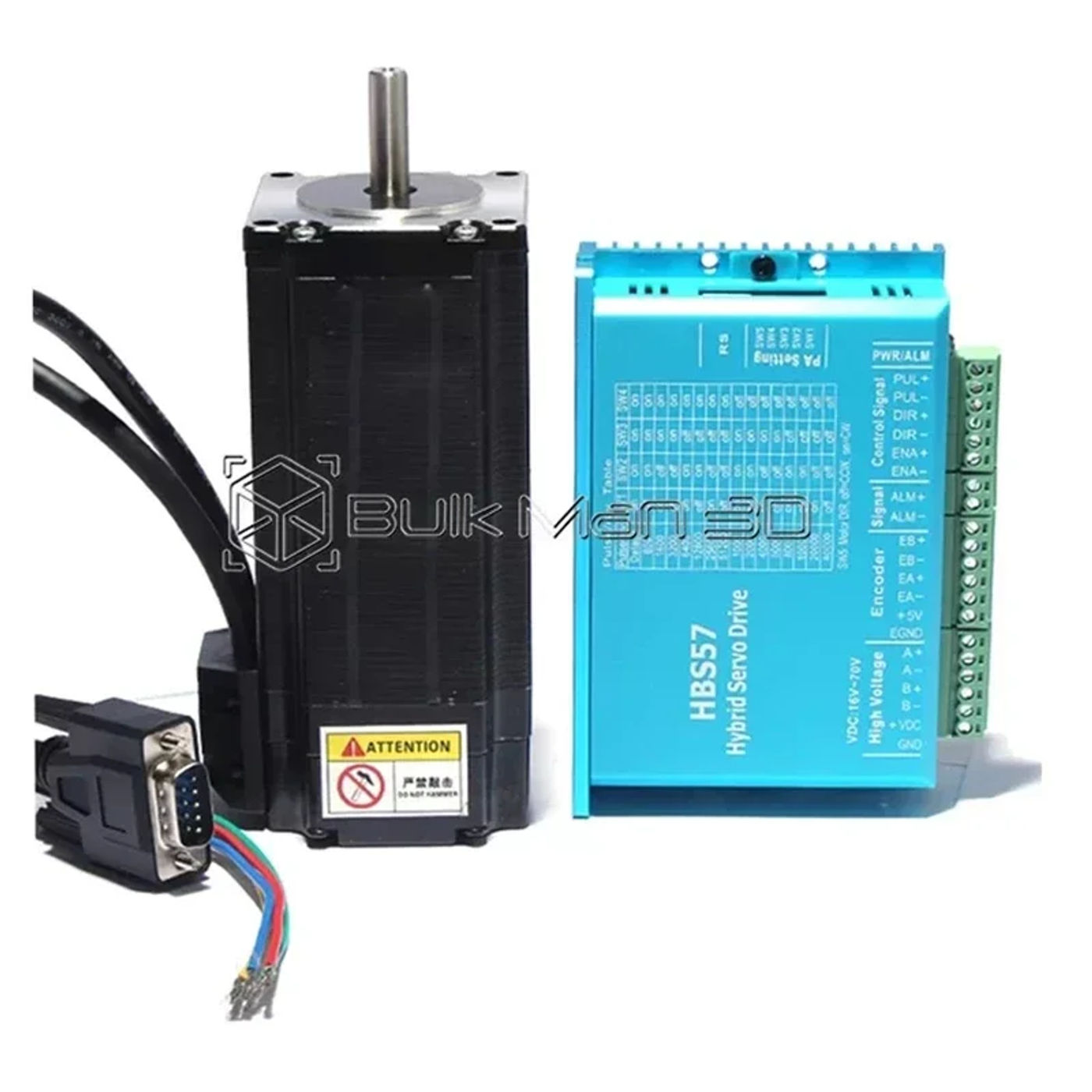

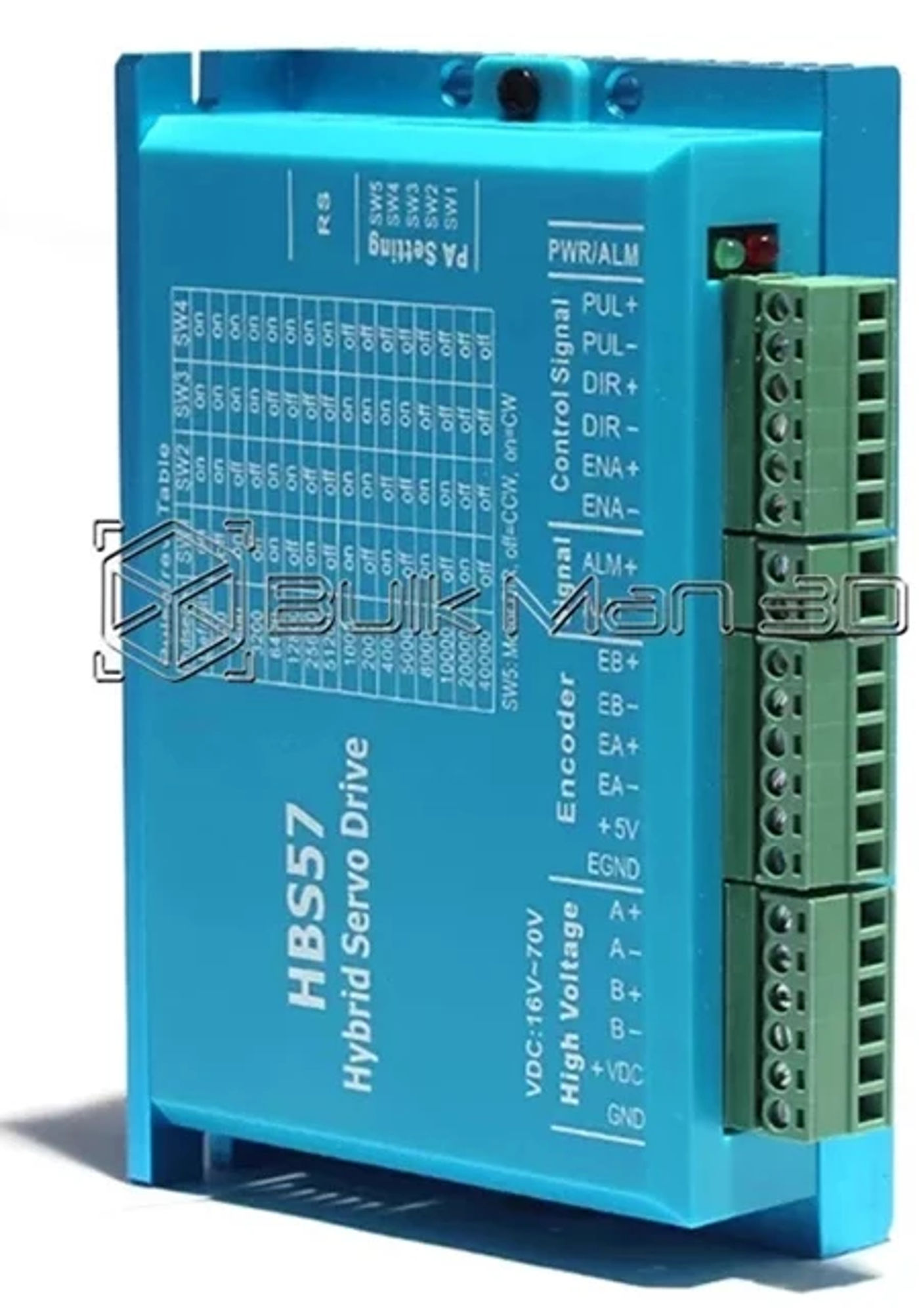

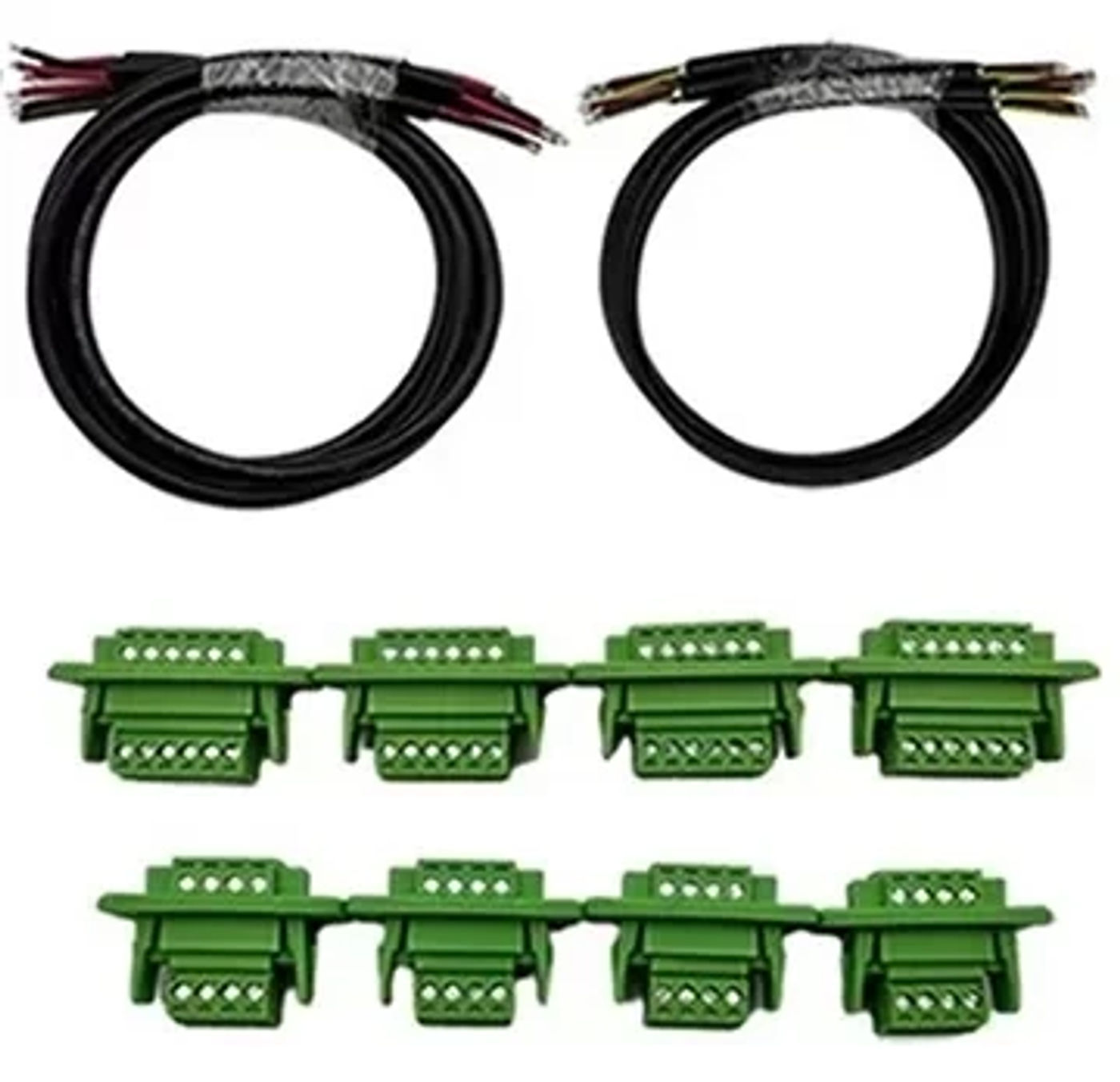

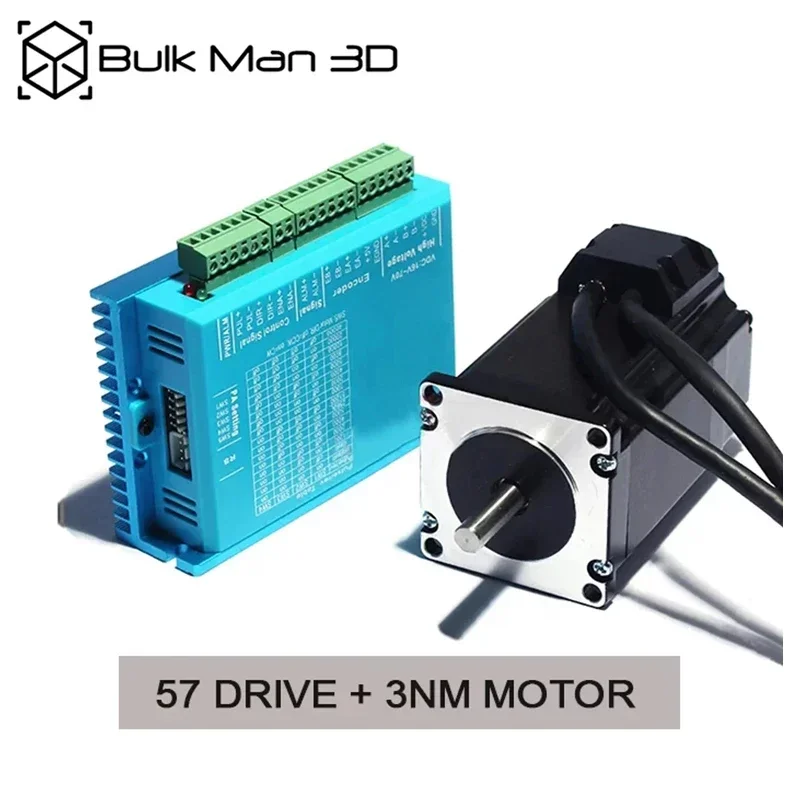

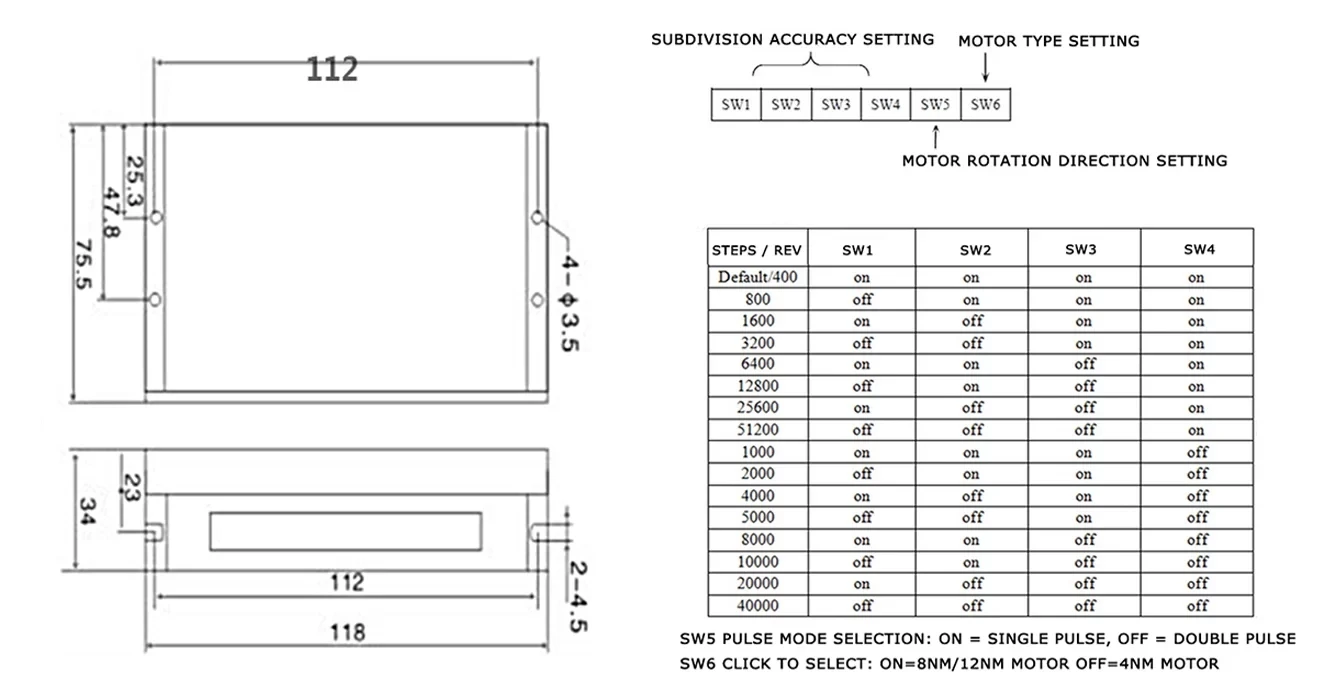

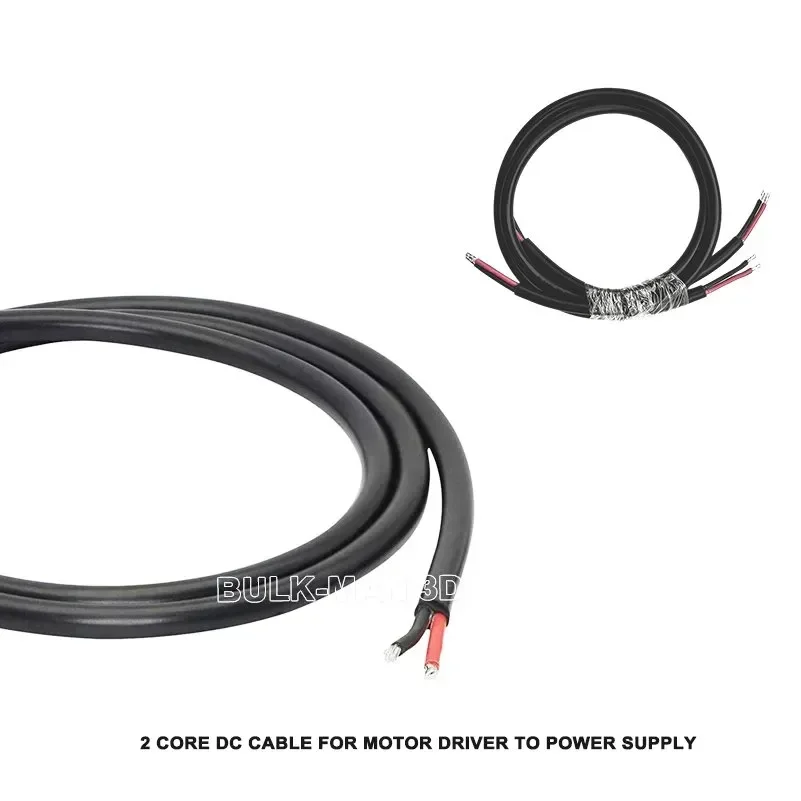

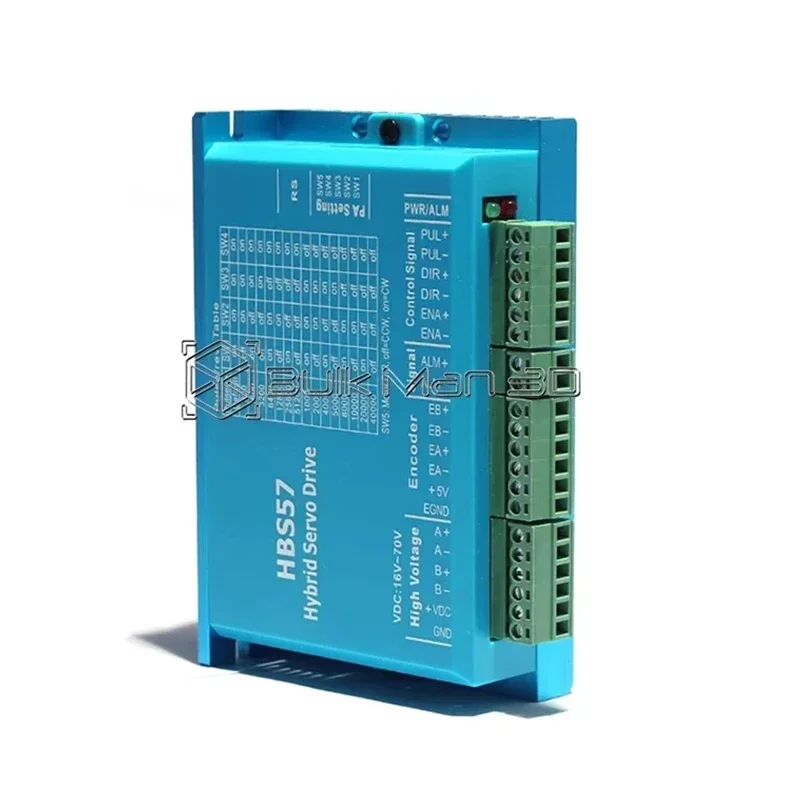

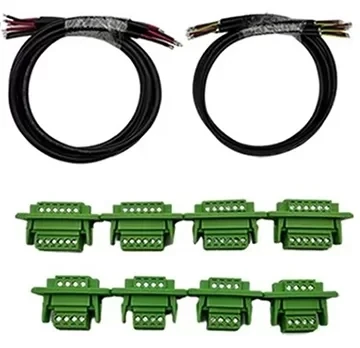

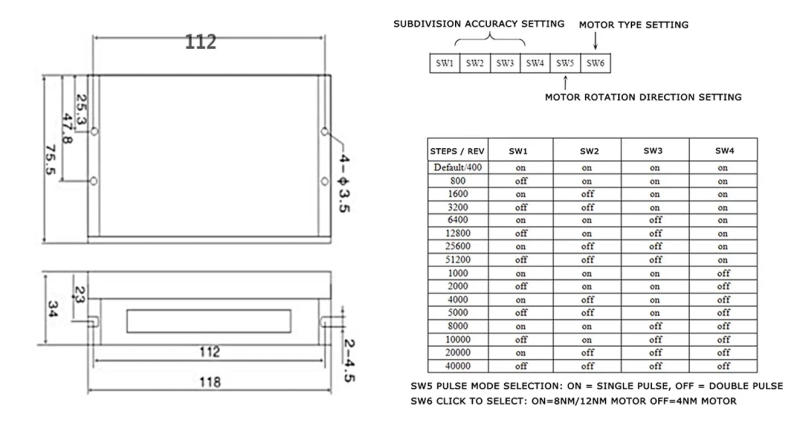

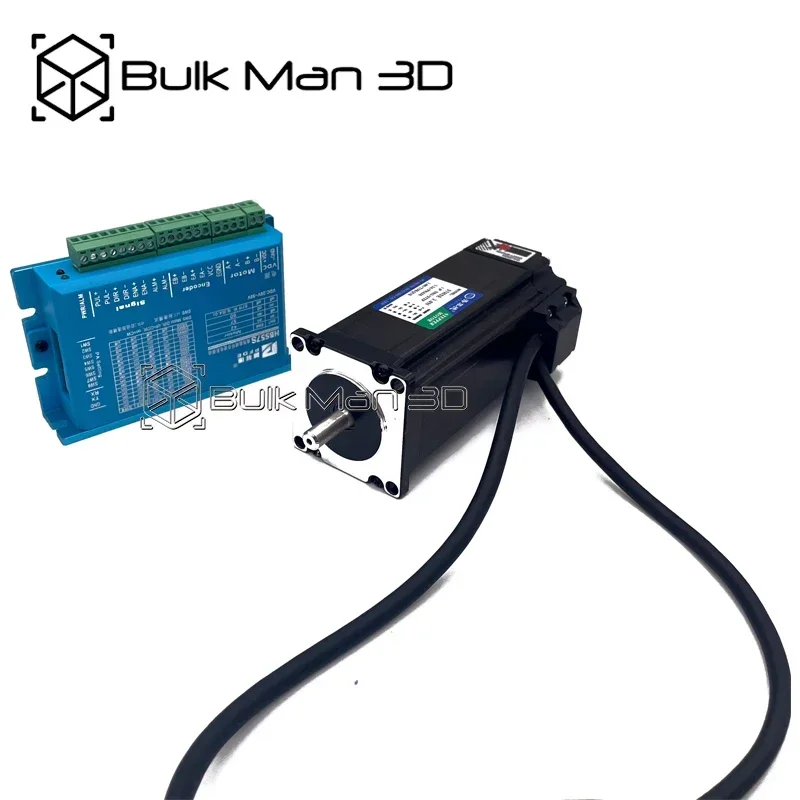

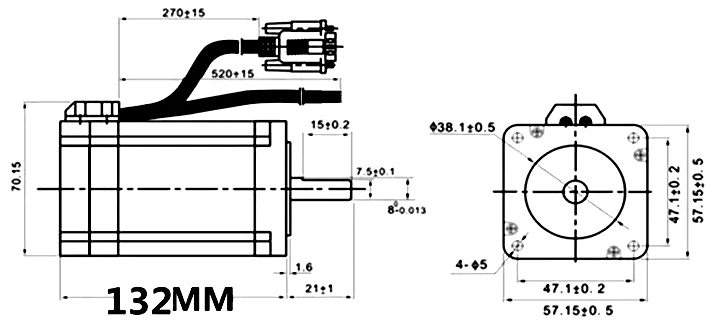

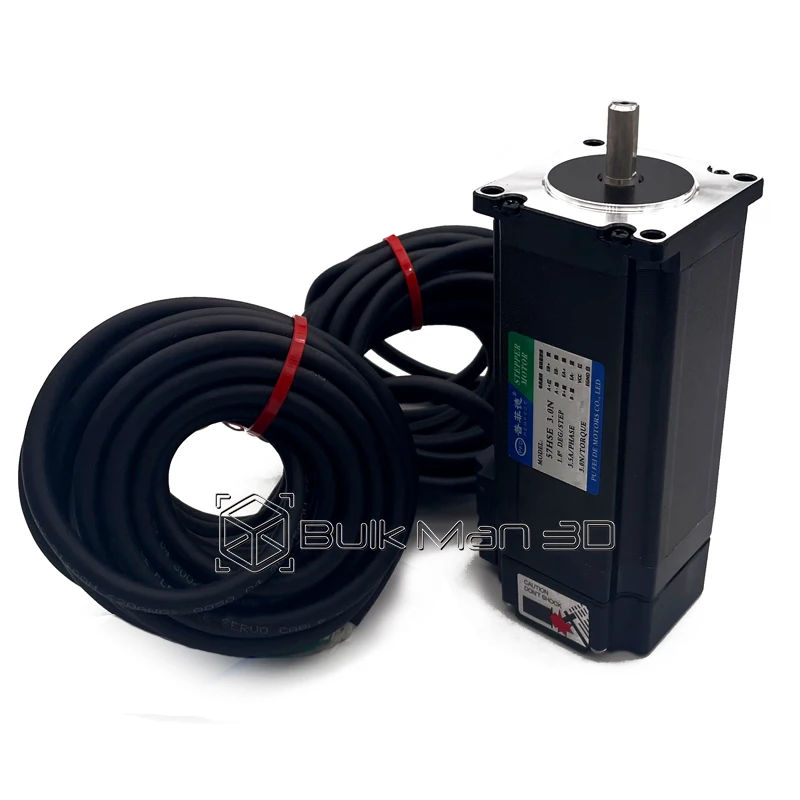

• 3N Close Loop Stepper Motor Bundle This is a High Performance 3N Close Loop Stepper Motor Bundle with HBS57 Stepper Motor Drive This 3N Close Loop Stepper Motor Bundle is available for Ultimate Bee CNC machine This Bundle includes: 4x HBS57 Stepper Motor Drive 4x 57HSE3N 3Nm Motor 4x 6 core shielded encoder cable (X,Y,A,Z) 4x 4 core shielded motor cable (X,Y,A,Z) 4x 2 core DC cable for motor driving force to energy delivery (X,Y,A,Z) 4x four core shielded cable for motor driver to controller (X,Y,A,Z) 4x four Pin EDG through wall connector 4x 6 Pin EDG by way of wall connector Description of Motor: Motor model: 57HSE3N Motor current: three Output torque: 3N Body length: about 132MM Shaft diameter: 8MM, no keyway Outletmode: single output shaft Rated speed: one thousand rpm (no-load speed: 2000 rpm) Outlet mode: two-phase four-wire (must be wired according to motor label) Description of Stepper Drive HBS57: Drive Model: HBS57 (Nema 23, for fifty seven stepper motor) Pulse Signal: 3/5V/24V compatible No string resistor required Voltage Range : DC16-70V (New Version: DC24-80, ship in random) Subdivision Setting: 800-51200 subdivision Cables & Connectors 4x 6 meters 6 core shielded encoder cable (X,Y,A,Z)- Linked with stepper motor 4x 6 meters four core shielded motor cable (X,Y,A,Z)-Linked with stepper motor 4x 1 meter 2 core DC cable for motor driving force to strength delivery (X,Y,A,Z) 4x 1 meter four core shielded cable for motor motive force to controller (X,Y,A,Z) 4x 4 Pin EDG via wall connectors 4x 6 Pin EDG through wall connectors Features: 1 Low warmth (static, the current is nearly zero, no heat) 2 (based at the suggestions vector space vector recent management algorithm and vector smoothing filtering technology, the ancient stepping motor afflicted low frequency resonance has a great resistance) 3 Applicable industry: dispenser / woodworking machine / welding machine / screw machine / zipper mechanical device / winding machine / placement machine / packaging machine / engraving mechanical device / laser mechanical device / LED / digital equipment four Large torque output in some instances can simplify the complexity of the mechanical device

•
•
•
•
•
