Description

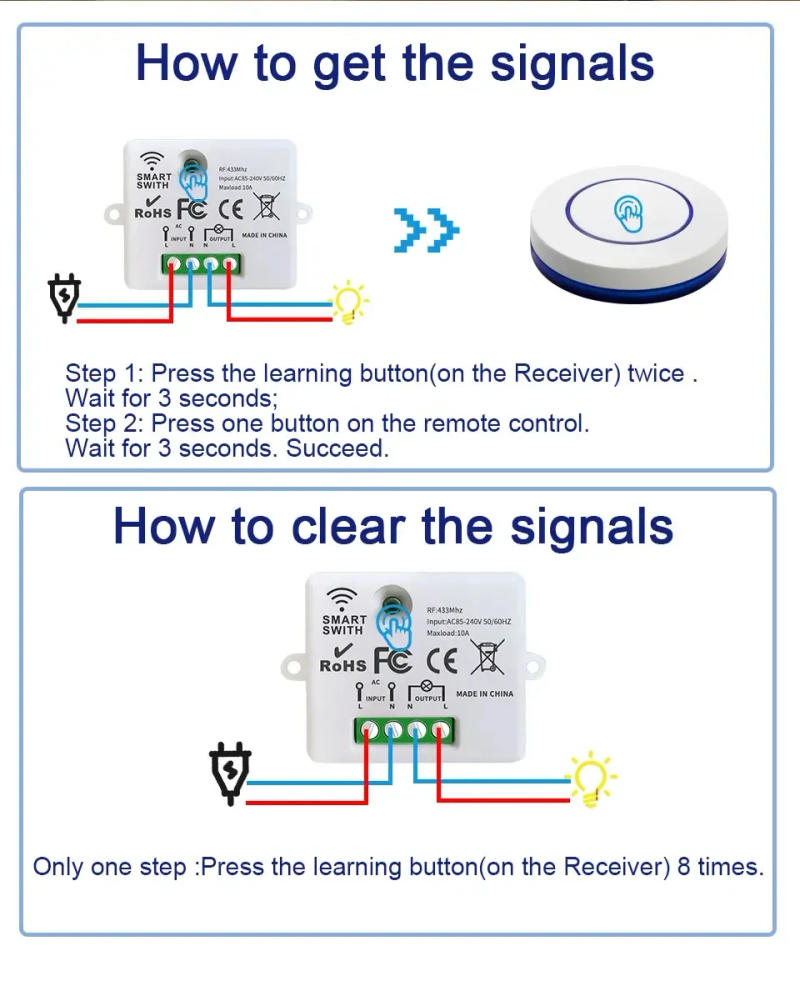

• Note:The relay controller is RF Receivers,the wall replace is RF only switch itself can't leadership light fixtures on off must paintings with rf receiver together:1. New mini round wi-fi panel switch(50mm*50mm*15mm) 2. 10A power: correct for many equipment, safer to apply 3. Mini body: would be directly put in within the change bottom box, upkeep and set up are more useful 4. Up to 50 meters remote vary extra obstacles, the shorter the distance, the more severe the signal loss. 5. After turning off the power, switch on the ability again, the gadget popularity is off:Transmitter (Remote) : Operating frequency: 433MHz Power through method of 2 Pcs 3V CR2016 Battery (Battery integrated ) Material: PVC; Button: 2 buttons; Size: 60mm x 30mm; Operating voltage: 3V ; Operating Current: 12mA; Transmitting power: 10mw; Modulation mode: ASK (AM). Encoding type: Learning. Transfers distance: 20~50m Controller (Receiver) : Input Power: AC85-240V 60HZ/50HZ Max current: 10 A RF Frequency: 433Mhz Working temperature:-30~+80 RF working mode: superheterodyne Receive sensitivity: >97dbm Transmitting distance: more than 50 m ( open space) Remote storage:10pcs Support remote type: Learning code 1527code Size: 47*42*22 (mm)How to get the signals？Step 1: Press the tutorial button(on the Receiver) twice . Wait for three seconds; Step 2: Press one button at the distant control. Wait for three seconds. Succeed to clear the signals？Only one step :Press the training button(on the Receiver) 8 times.

•
•
•
•
•
