Description

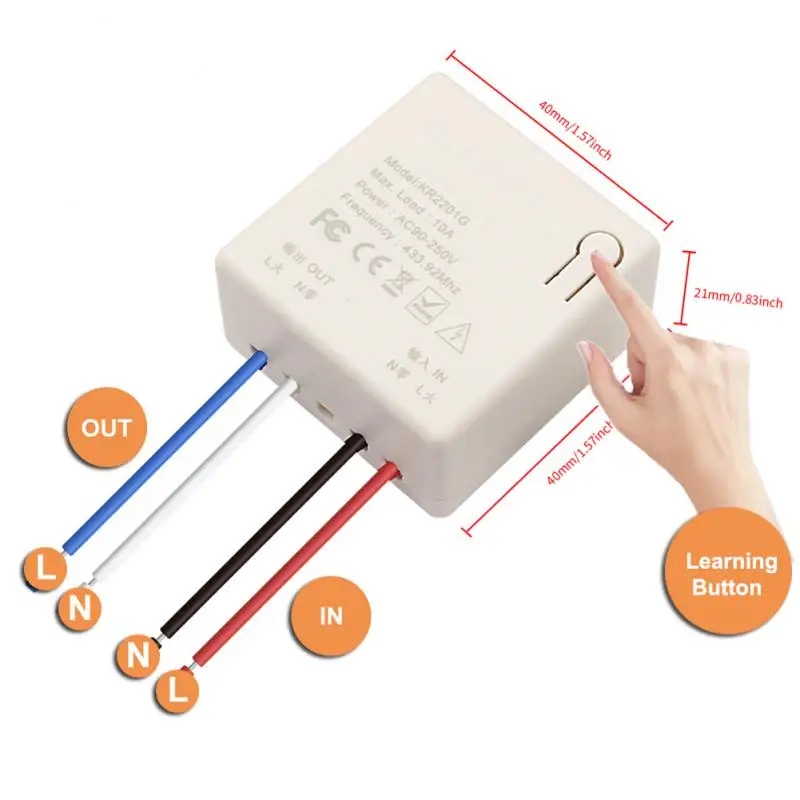

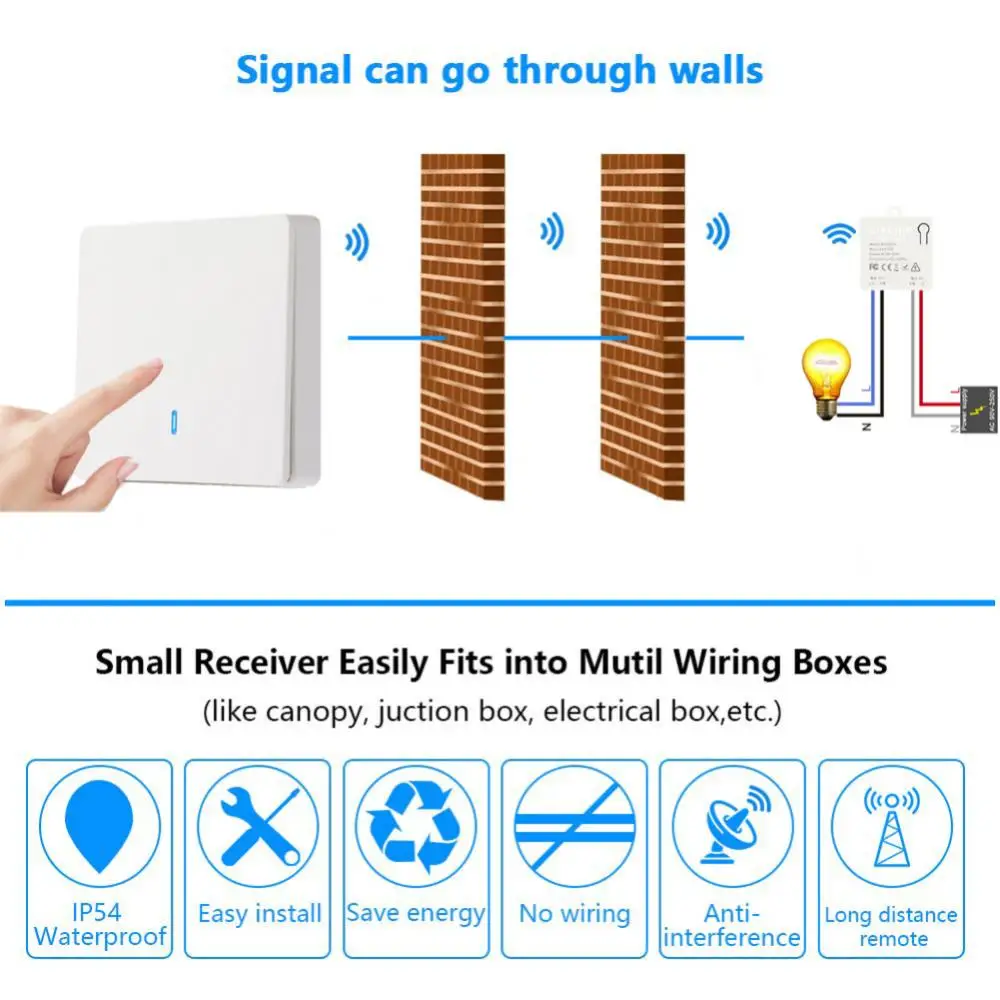

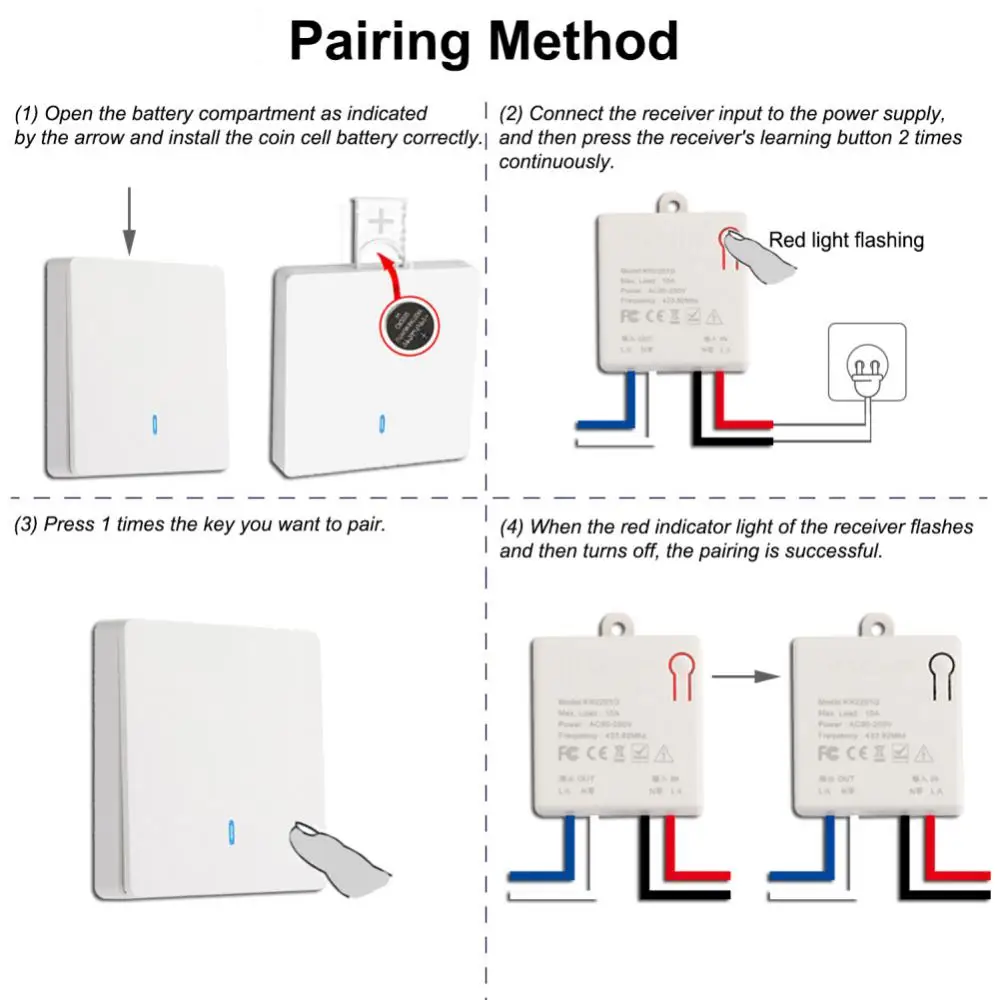

• 433Mhz Wireless Switch Smart Switch RF Wall Panel Switch Universal Breaker 90V-250V RF Relay Receiver Led Light Lamp Fan Switch Description: Working voltage: AC 90V~250V Quiescent Current: <5MA Max current: 10A Max load: 2200W RF frequency: 433-433 Working temperature: -30~ eighty Receiving Sensitivity: >108 dbm Amount of storage remote controls: 25 items Support encoding: 1527 Leaning code,2262 constant code RF Operating mode: ASK superheterodyne wireless reception Receiving range: Open field is larger than 50 meters,Indoor partition wall 15 meters Wall change size: 86 normal length Switch battery: 1 pcs CR2032 coin cell battery (not include) Specifications: Easy to install RF Output of Good Stability Easy pairing （1）Open the battery compartment as indicated through arrow and install the coincell battery corectly. （2）Connect the receiver enter to the flexibility supply, then press the receiver's studying button 2 occasions continuously. （3）Press 1 occasions the distant panel replace key you wish pair. （4）When the red indicator gentle of the receiver flashes after which turns off, the pairing is successful. Reset Press the learning button (on the Receiver) 8 times. The current information might be deleted succeed. Package Included: 1*KR2201G-4 433Mhz Receiver Module

•
•
•
•
•
