Description

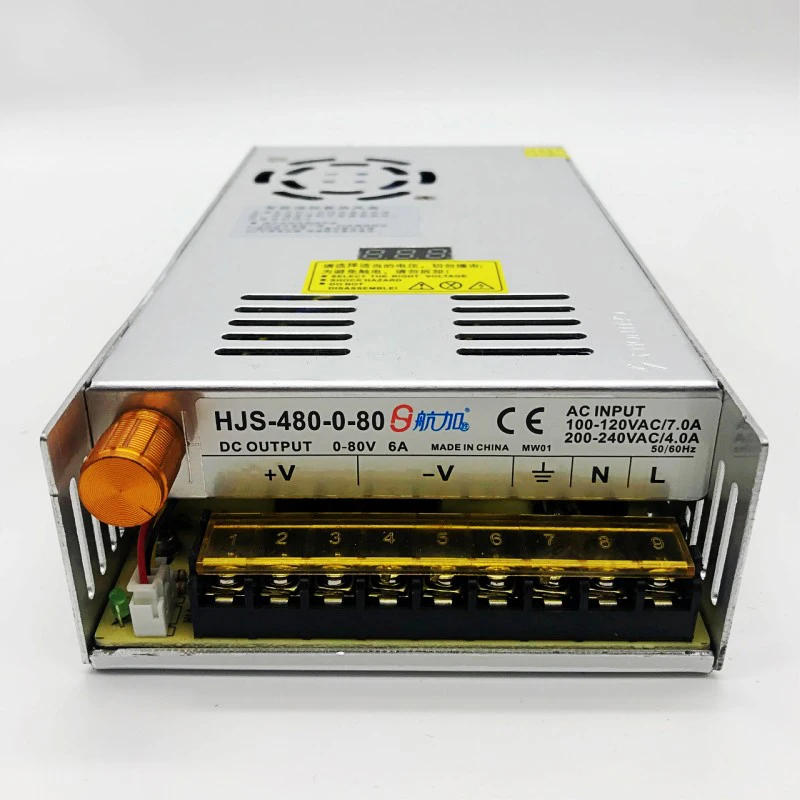

• Specifications Product: 0-80V 6A power supply 0-5V sign control voltage Input voltage: AC110/220V Output voltage: DC0-80V 6A Rated power: 480W Product size: 21 (long) *11 (wide) *5CM (high) The protection function of short-circuit / overload / overvoltage 100% complete load burn-in verify Input voltage & frequency range ----------110/220VAC/47 ~ 63Hz Start influence latest ---------------20A@120VAC (cold start) The output differ of - + one hundred pc (rated output voltage) Overload defense -------------------105% ~ 200% (rated load), self restoration Overvoltage protection -------------------115% ~ 135% (rated output voltage) Short circuit defense ------------------- self restoration Output birth time - 2S@120VAC 1@230VAC Output keep time - greater than 10mS@120VAC, greater than 20mS@230VAC The insulation energy ------------------- enter - output: AC1500V, 1min Input - Case: AC1500V, 1min Output - Case: DC500V, 1min The operating surroundings of C - 10 to 50 DEG C; 20% ~ 90%RH (no condensation) EMC common - EN55022 Class B reference design; EN61000-4-2/-3/-4/-5/-6/-11 Description 1 Mainly utilized in a wide range of DC equipment, DC motor stepless velocity regulation, LED electrodeless dimming, chemical plating, velocity control, scientific research, testing, students, etc, and widely used 2 Please Note: no matter the voltage is decided to a number of V, the utmost recent is 6A, the current is not adjustable, the actual current will depend on the load) Any machine lower than 6A recent would be used, and no machine more than 6A recent can be utilized 3 Special note: reminiscent of the use of motor and fan inductive load, please word that the utmost motor beginning recent parameter, this parameter may not be greater than the present maximum power, in any other case it may trigger harm to the ability supply, the flexibility supply should choose extra current, or to the motor with comfortable beginning protection circuit to soak up influence current four To make sure the life of the power supply, pls don't use full load when you use it We recommend the use strength ought to be 80% of the rated power example: the label of the power supply is 500W, use energy should be : 500W*80%=400W five (power formula) voltage X latest = energy For example: access to 12V 6A equipment, strength is 72W, after which related to 36V 5A equipment, strength is 180W Precautions: ◆ When the charger is used, please unplug the battery and turn off the input strength If it isn't used for a long time, please store it in a ventilated and dry surroundings ◆To make certain safety, please perform in the line of sight when charging If you need to leave, get rid of the battery to bypass unpredictable danger ◆Do not mix batteries of alternative types, different capacities and varied manufacturers ◆ Keep faraway from flammable materials when charging, pay particular attention to battery temperature If the temperature is terribly high, equivalent to hot, please disconnect the power straight to prevent charging ◆ Do now not drop wires or different conductive items into the charger The penalties are self-sufficient ◆ Do no longer payment if the battery leaks, rises drum, peels off, adjustments color, or deforms ◆ Do no longer try to payment a non-rechargeable battery ◆ Do not exceed the charging range laid out in the battery manufacturer ◆ Do no longer regulate or disassemble the charger Turning at the mechanical device and indicating that you've got waived all warranty and technical

• //ae01.alicdn.com/kf/He0489714654949a49a16e9db5755a401n.jpg

• //ae01.alicdn.com/kf/H64f4e1dc56e8429a8ac44e416708e47cr.jpg

• //ae01.alicdn.com/kf/H5c93dc5952094bf9b0f0a5659eea31acS.jpg

• //ae01.alicdn.com/kf/H4a115e86373b4db7a49dc3ccca4b4afcD.jpg

• //ae01.alicdn.com/kf/H034912de55ec4f74bad2a01ccaaae94dQ.jpg
