Description

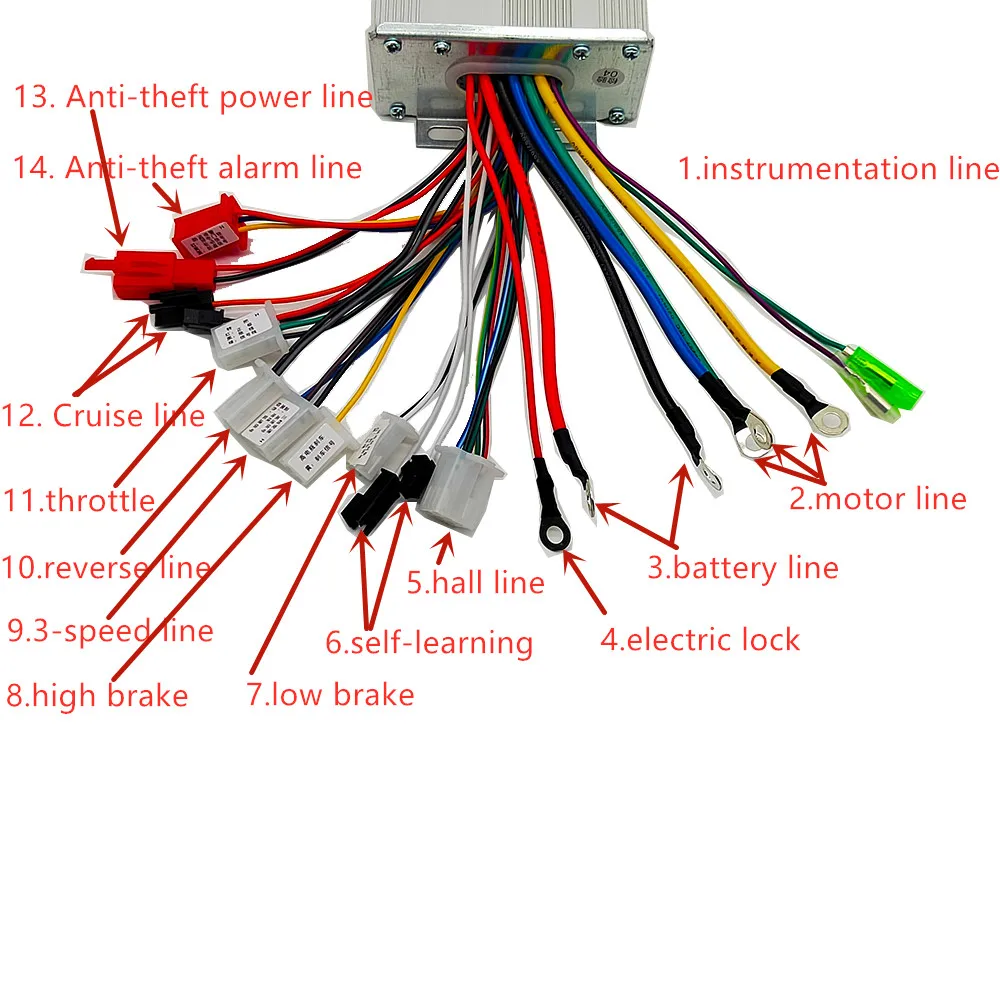

• note：48–64V 1000W controller electrical lock is 1 wire，36V–48V 1000W controller electric lock is 2 wires 48V–64V 1000W/ 36–48V 1000W controller can work with corridor sensor/hall sensorless Rated Voltage: 48V–64V /36V–48V Low Voltage : 41V±0/32V±0 Rated Power: 1000W Limit Current: 40A Transistor：18 tubes 48V–64V 1000W controller operate 1 instrumentation line （There are two tool wires, one is suitable for pointer variety software (green wire), and the opposite is appropriate for liquid crystal sort tool (purple wire), desire wiring in keeping with diversified instruments） 2 motor line three battery line four electrical lock line 5 corridor line 6 line 7 low brake eight high brake line 9 3–speed line 10 line 11 line<br> 12 Cruise speed line 13 Anti–theft strength line 14 Anti–theft alarm line 一 the motor line (color to color) 二 connect the battery line(red:+ , black:–) 三 connect the controller throttle line, electrical lock(must connect） 四 join the hall line 五 the two self–learning lines, the wheel will forward or reverse (1 wheel ahead ,Separate the self–learning line 2 wheel reverse, Separate the self–learning line Docking the self–learning line again if wheel forward ,Separate the self–learning line) 六 purposes can be related as crucial 36–48V 1000W controller function: 1 2 line three line four brake five brake 6 (low/middle/high) 7 eight lock nine line 10 tool line eleven strength supply 12 signal 13 (red battery+, black battery–) 14 15 meter line 一 the motor line (color to color，if motor with out hall line, don&;t desire join corridor line） 二 connect the battery line(red:battery + , black:battery–) 三 join the controller throttle line to throttle, controller electric lock connect with throttle electric lock （if throttle no longer have electric lock,the electric lock 2 wires of the controller can be docked together） 四 the 2 self–learning lines, the wheel will ahead or opposite (1 wheel ahead ,Separate the self–learning line 2 wheel reverse, Separate the self–learning line Docking the self–learning line again， if wheel ahead ,Separate the self–learning line) Self–learning is to adapt to the provision voltage 五 purposes would be related as crucial

•
•
•
•
•
