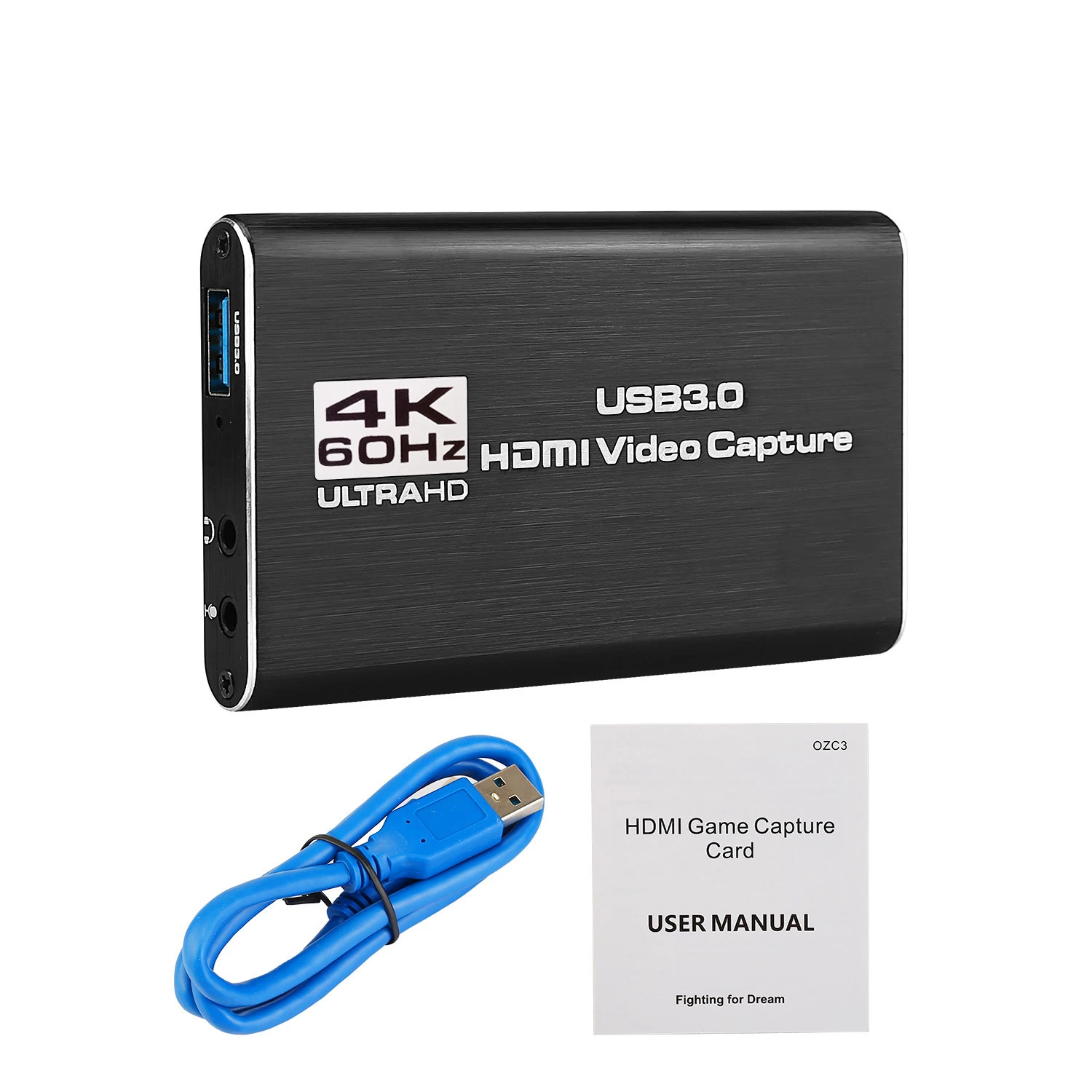

• [Product name] 4K HDMI to USB3 video seize card [Product alias] dwell video capture card, USB3 video capture card, HDMI seize card, HDMI high-definition video seize box [Product Introduction] 4K HDMI to USB3 video capture card, clean to carry, superior performance, nice compatibility, uncomplicated installation, powerful features, etc, can collect 1 HDMI input signal; well matched with Windows 7, 8, 8, 10 or Later, Linux OS, Mac OS USB3 interface, well suited with a number of USB3 chipsets (Intel, Renesas, ASMedia, Fresco Logic), backward well suited with USB2, linked to PC or cellphone by way of USB3 interface Through many free third-party playback and acquisition software, to attain preview, recording, acquisition, dwell broadcast and different functions, HDMI video acquisition complies with UVC and UAC standards, clean to use 【Features】 1 It can seize unmarried HD HDMI video signal; 2 The recorded video sign can reach 1080p / 60Hz, HDMI input helps 4K / 30Hz; 3 Support MJPEG and YUY2; 4 UAC & UVC agreement, help 48 KHz PCM audio sampling rate; five Some win7 deserve to set up the driver; 6 Compatible with Windows 7, 8, 8, 10 or later, Linux OS, Mac OS working systems; 7 USB3, 300 ~ 350MB / s bandwidth, like minded with USB 2 (40MB / s bandwidth); 8 Can mechanically locate the enter video format, and automatically comply with the set output size and body rate; 9 Can robotically come across the enter audio format and convert it to 48KHz PCM audio; 10 series rods can be utilized on a PC; eleven Support online firmware improve to raised upgrade product compatibility; 12 The picture quality is clearer, the RGB colour differ is 0 ~ 255, the delay is better; 13 Support all third-party participant application well matched with UVC and UAC protocols; 【System Requirements】 Computer formula requirements: Windows® 10 / Windows eight / Windows 7 (SP1); Desktop computer: Intel® Core ™ i5-4440 3 GHz + NVIDIA® GeForce® GTX 660 or above; Notebook: Intel Core i7-4810MQ + NVIDIA GeForce GTX 870M or above; 4 GB RAM (8 GB recommended); A Mobile telephone formulation requirements: Android cellphone (supported via more moderen phones); Only helps USB2, not USB3 (The purpose is that android UVC driver would not support USB3); If it's a USB Android phone, you must power the pure USB2 cable into the USB2 mode to apply 【Product Specifications】 1 Input interface: 1 HDMI interface; 2 Output interface: USB3, 300 ~ 350MB / s throughput; 3 HDMI input: 4K / 30Hz, 1080P / 60, 59, 50, 30, 29, 25, 24, 23, 1080i 50/60, 720P 50 / 60,480P, 576P1280x1024, 1280x960, 1024x768, 800x600, 640x480 4 HDMI sound input: LPCM sound signal; 5 HDMI input format: well matched with HDMI1 standard, most bandwidth help 225MHz 4K / 30Hz, 12bit deep color; 6 Output layout Resolutions: 640x480 / 720x480 / 720x576 / 800x600 / 1024x768 / 1280x720 / 1280x960 / 1280x1024 / 1366x768 / 1360x768 / 1440x900 / 1400x900 / 1680x1050 / 1920x1080 frame rate: 25 / 29 / 30/50 / 59 / 60 fps; 7 Video sampling rate: HDMI: 165MHz; 8 Audio and video capture: it conforms to UVC (USB video class) and UAC (USB audio class) standards; 9 Output shade space: YUV, RGB; 10 Support working system: Windows 7, 8, 8, 10 or later, Linux OS, Mac OS; 11 Software compatibility: Adobe Flash Media Live Encoder (Windows, OS X); Real Producer Plus (Windows); VLC (Windows, OS X, Linux); QuickTime Broadcaster (OS X); QuickTime Player (OS X), OBS, PotPlayer and and so on 12 Power consumption: <= 2; thirteen Working temperature: 0-70 degrees Celsius; 14 Storage temperature: -20-120 levels Celsius; 15 Storage humidity: 5% -90%; 【Interface Description】 1 Signal indicator: When the gadget captures video normally, the indicator lighting fixtures up 2 Power indicator: When the gadget is connected to the USB port of the computer, this indicator lights 3 HDMI input: This slot is where the HDMI output supply reminiscent of camera, camcorder, game box, IPTV box, and so forth is connected four USB3 output: This slot is where you connect the USB3 enter of a pc or laptop computer How to apply OBS to listing video? Step1: Clik:+ Choose:Video Capture Device Step2: Create a new call Step3: Device:Choose"USB3 HD Video Capture" Step4: Resolution/FPS Type:Choose"Custom" Step5: Resolution:Choose"1920x1080" Step6: Audio Output Mode:Choose"Output desktop audio(DirectSound)" Step7: √ Usb tradition audio gadget Step8: Audio Device :Choose"USB3 HD Audio Capture" Step9: Clik"Start Recording"

•
•
•
•
•
