Description

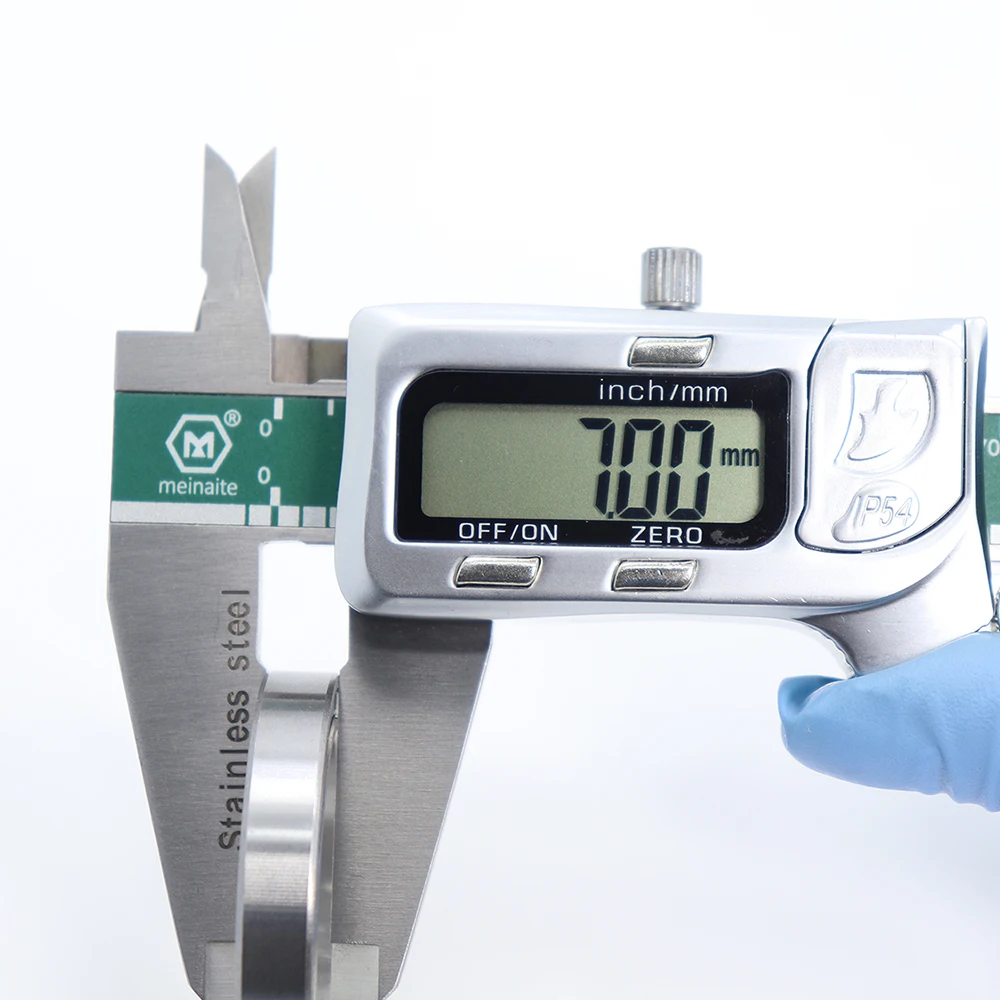

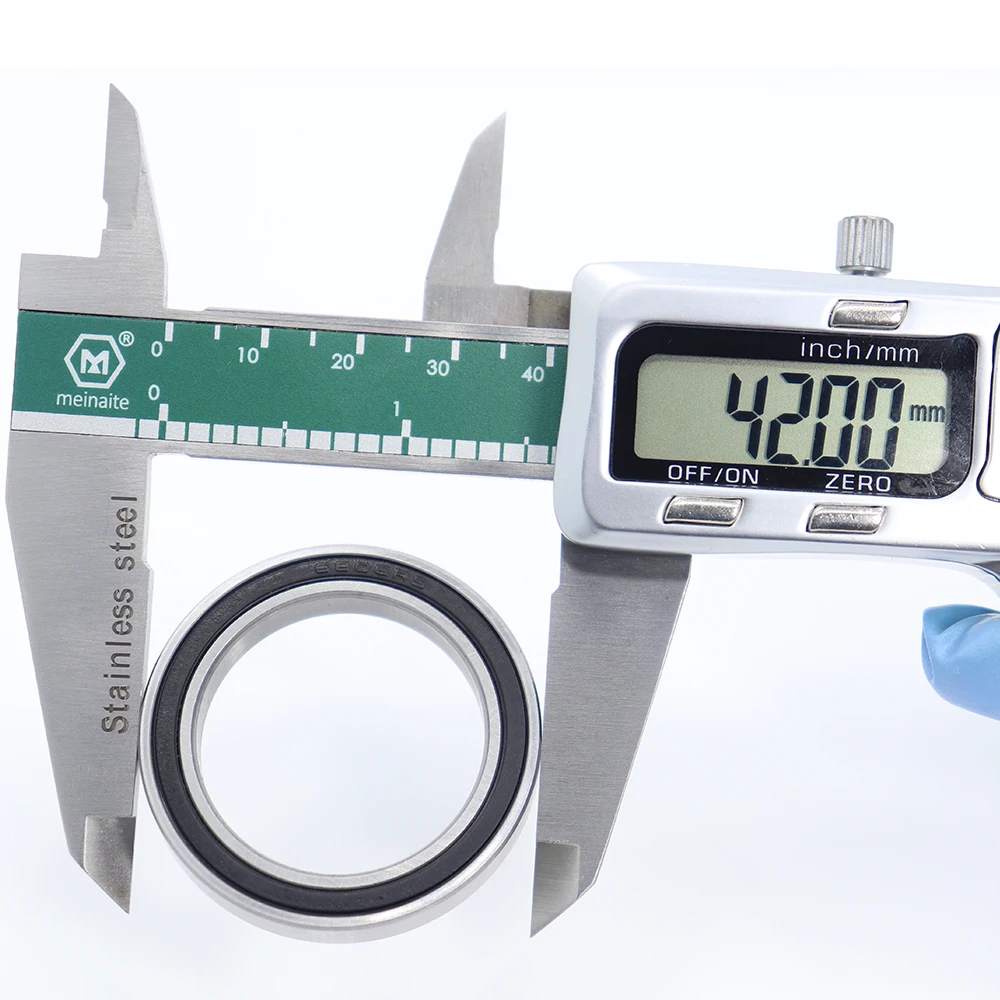

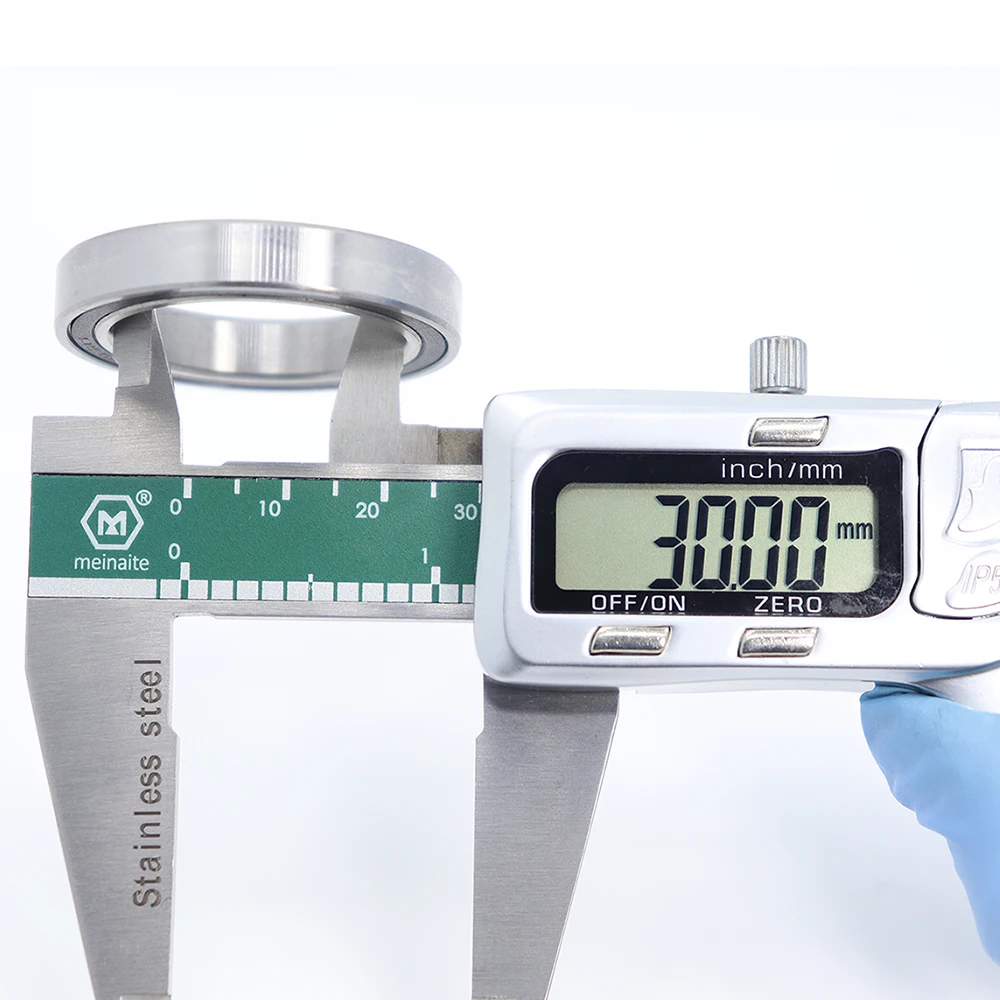

• WHAT IS A HYBEID CERAMIC BEARING? A ceramic hybrid bearing is a mix of ceramic balls and bearing high quality metal rings Which combine hardened steel rings with rolling elements made from high-performance ceramic materials, are an more and more common choice for aggravating purposes TECHNICAL SPECS Model: 6806 RS Structure: Deep Groove Ball Material: Hybrid Ceramic Bore Dia (d): 30 mm Outer Dia (D): 42 mm Width (B): 7 mm Closures: Sealed (2RS) Lubrication: Grease Clearance: C0 Dynamic Load Rating (Cr) (Newtons): 4538 Static Load Rating (Cor) (Newtons): 3402 Weight: 0 kg Quantity: 1 Lot = 2 PCS Special Note: --- 1, Sometimes the cages can be varied eg: 67 sequence thin-walled bearings, since the internal wall is very thin, will use the crown-shaped iron cage --- 2, the grease and sealed are accept custom-made, so infrequently there are diverse colours of the rubber sealed If you intellect the sealed color, please contact us We&;ll verify the inventory for you --- 3, The usual clearance of bearings is ISO usual C0, the United States usual K25, the clearance price is 3-18um; If you've got particular requirements for swinging, please touch us earlier than purchasing to verify BEARING STRUCTURE 52100 Chrome Steel Outer Ring & Inner Ring + Si3N4 Ceramic Balls + Nylon Cage + Grease + Sealed = HYBID CERAMIC BEARINGS BEARING EXPERIMENTAL DATA THE HISTORY OF HYBRID CERAMIC BEARING The first time I knew the application of hybrid ceramic bearings became Jacob Csizmadia in 1998 world record for 24 hour in line skating A significant factor in achieving the new checklist of 505 km turned into that he had, in cooperation with bearing manufacturers SKF, replaced the ancient metallic balls within the skates&; bearings with ceramic balls In 2004, Jacob Csizmadia based a ceramicspeed corporation specializing in ceramic bearing purposes Ceramic balls fabricated from Silicon Nitride have been invented within the 1970&;s, and have been first utilised on a massive scale via NASA in the early 1990&;s Several years later ceramic ball bearings also entered usage in Formula 1 motorsport, and a small number of bearing manufacturers started producing hybrid bearings with ceramic balls for use in electric motors F A Q 1 Why do the bearings I acquire have shaking? The clearance of the bearing is expounded to the play The default is the conventional C0 clearance, which is usually 3-18um The corresponding principle is shown in the determine under If you don&;t should shake, please prefer C2 small clearance bearing, If you have any questions, please touch us earlier than shopping 2 What is the accuracy of ABEC-1? ABEC is the American ANSI traditional The corresponding German DIN usual and international ISO normal are as follows: 3 Do you present logistics monitoring information? Yes, all our products provide complete logistics tracking And the goods you purchase are all new We will buy transportation insurance for you If the product is broken or lost during transportation, you may get paid

•
•
•
•
•
