Description

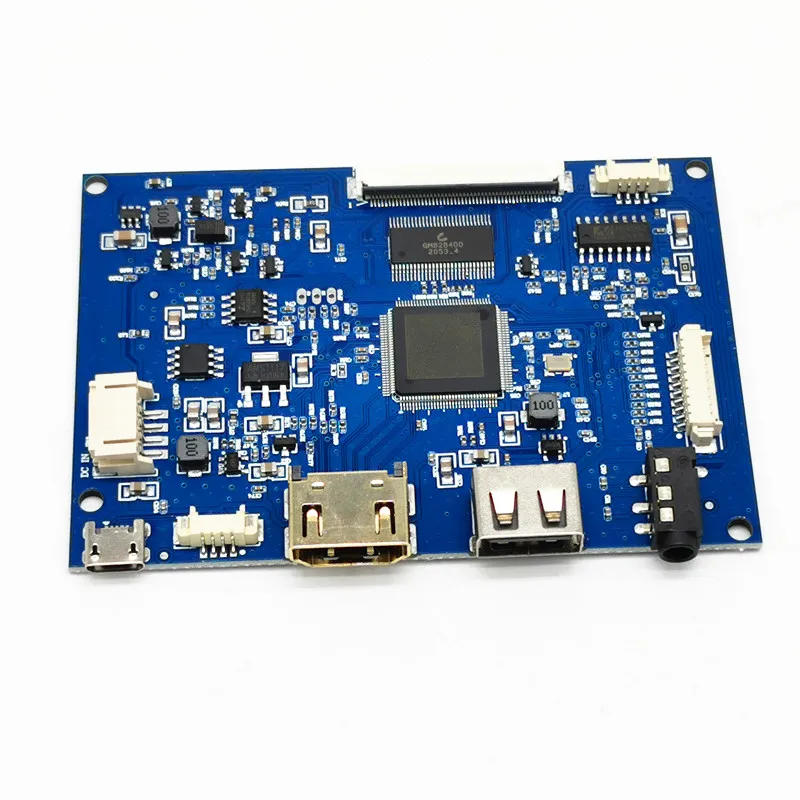

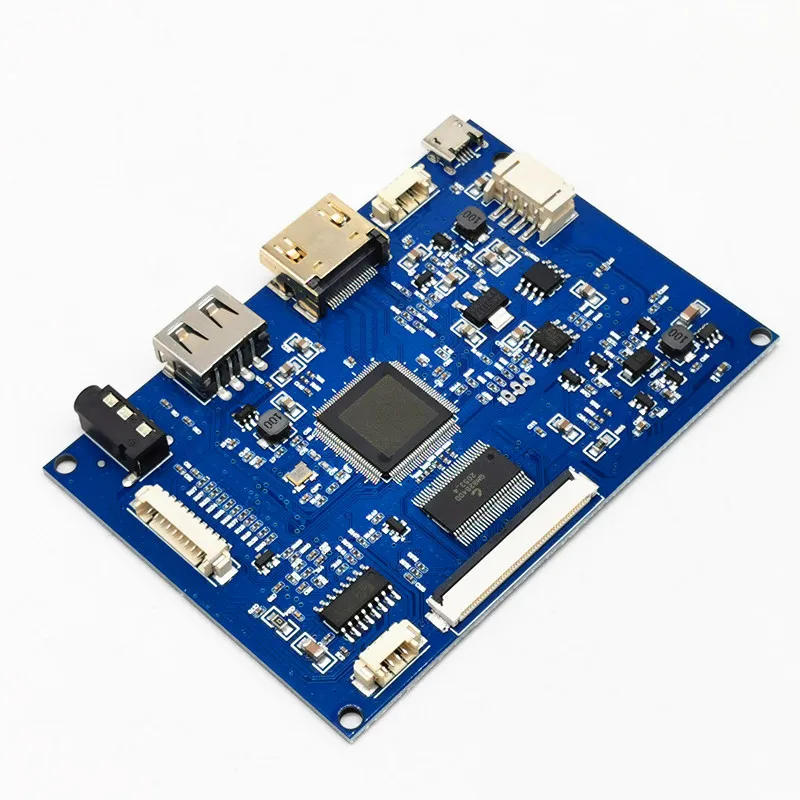

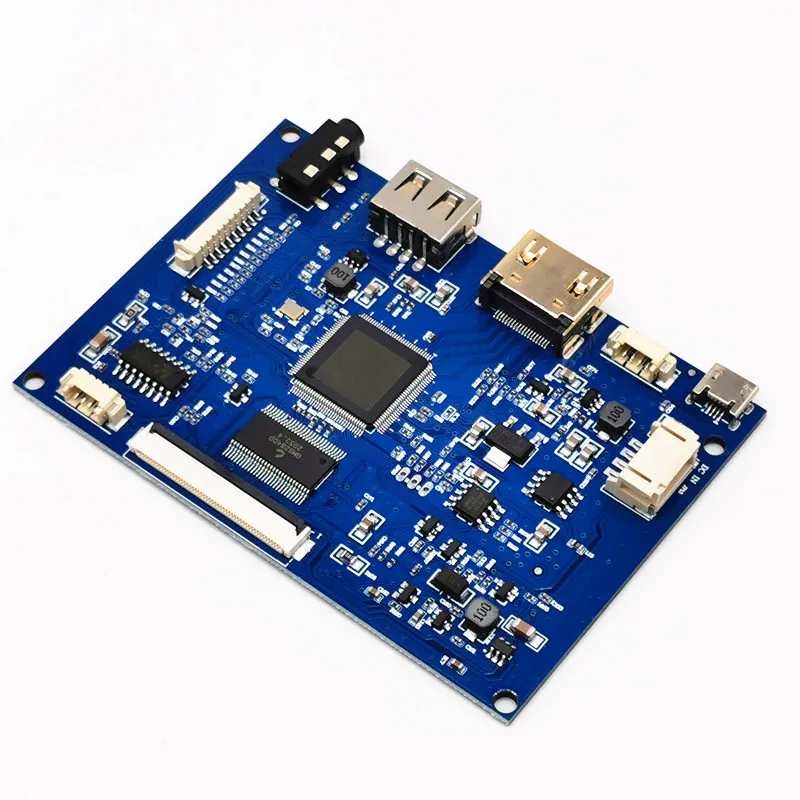

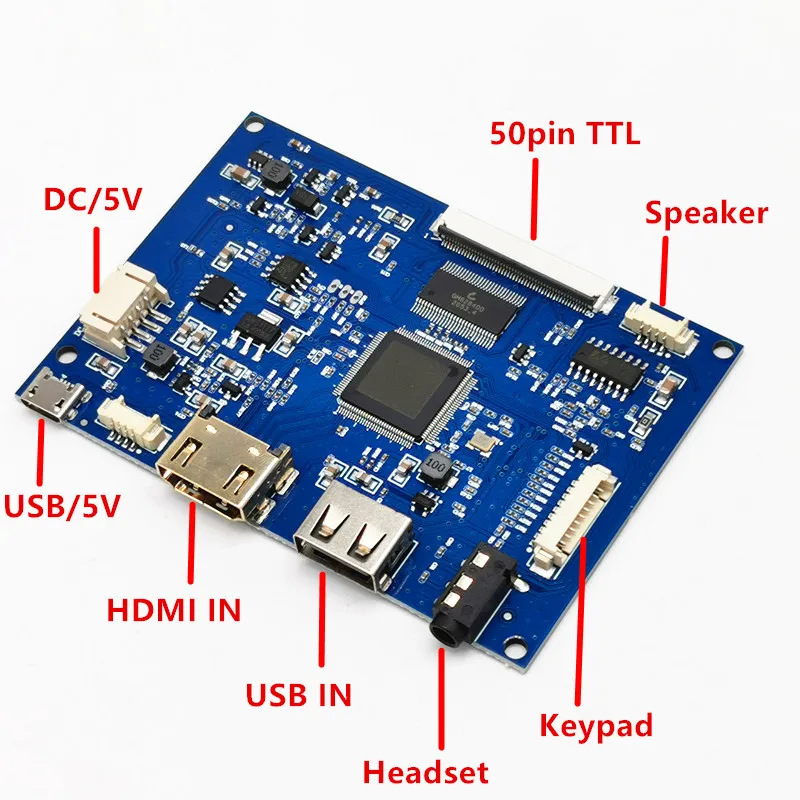

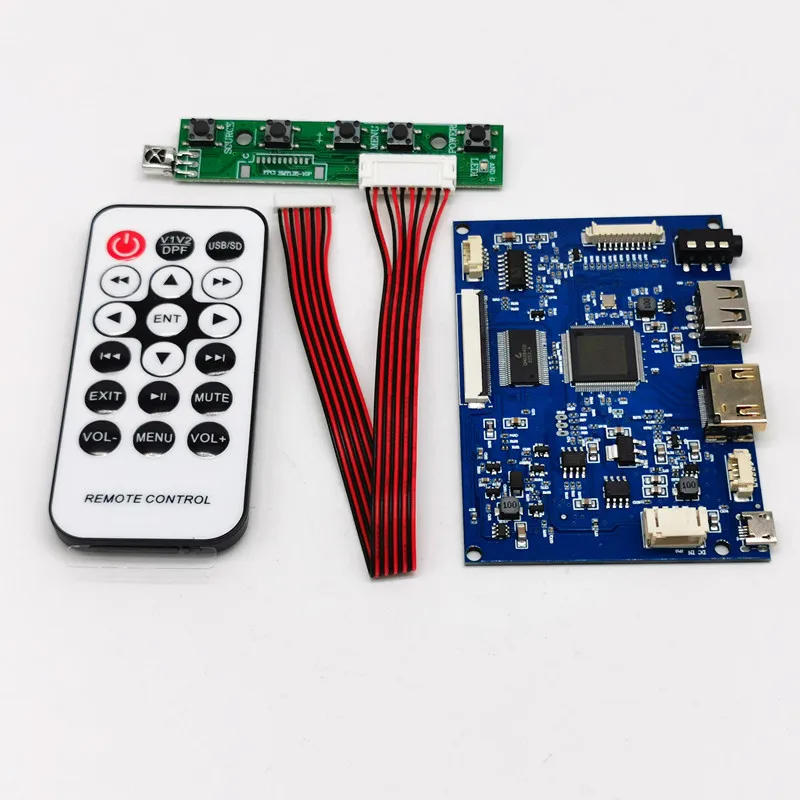

• Product description: This is a good set of easy-reassembling LCD controller equipment which is used to turn a bare LCD panel right into a desktop/PC display screen and LCD It can be a shock that your bare LCD will be of good use, and not be a waste Or it's a very insteresting issues that we make a monitor successfully by means of ourselves Giving your liquid crystal display a new life with your tremendous theory The exterior length of the product is 101*65*9MM Driven plate can be straight pushed AT065TN14 AT070TN90, AT070TN92, AT080TN64, AT090TN10, AT090TN12 LCD screen looking ahead to the overall definition, basic can drive the following resolution: 480 / TTL1024 TTL800 * * six hundred 1, the power board is appropriate for mobile phone charger --5V2A regular voltage input, exceeding the specified voltage may possibly damage the circuit board and components, please confirm the power input voltage intently 2, 1 USB signal input (MP5 function), USB interface can help the U disk audio and video playback, picture playback, text playback can output recent not more than 500MA to external devices, if too large, will cause the machine protection crash and other occurrences USB can improve the utility of the driving force board (You solely should position the improve dossier in the level-1 listing of the USB disk and insert it into the USB of the driving force board After power-on, the application would be upgraded and will be restarted automatically) three channels HDMI sign input, assist is HDMI1, HDMI socket with nice gold plated connector 4, 1 stereo audio amplifier output, assist amplifier output, 8 euro2W /4 Euro2W 5,1 channel LVDS usual signal, double channel, double 8BIT sign output 6, the driver board solely supports 3 The 3V LCD display is based on electricity, and should comply with AT070TN92- Standard definition of 50PIN seat, 7,1 photoresistor signal input, support computerized brightness adjustment 8, support contact display external growth 9, regular five key button interface, and support dual-color LED indicator gentle demonstrate 10, maximum output decision assist 1024*600 TTL definition LCD screen, 11, support tradition LOGO, would be straight learn from the USB flash force 12, support image 180 degree reversal display 13, Standardized MIRCO USB interface, can instantly use the phone charger and charging cable 14 Upgrade using U disk (16G disk of SDI is recommended)

•
•
•
•
•
