Description

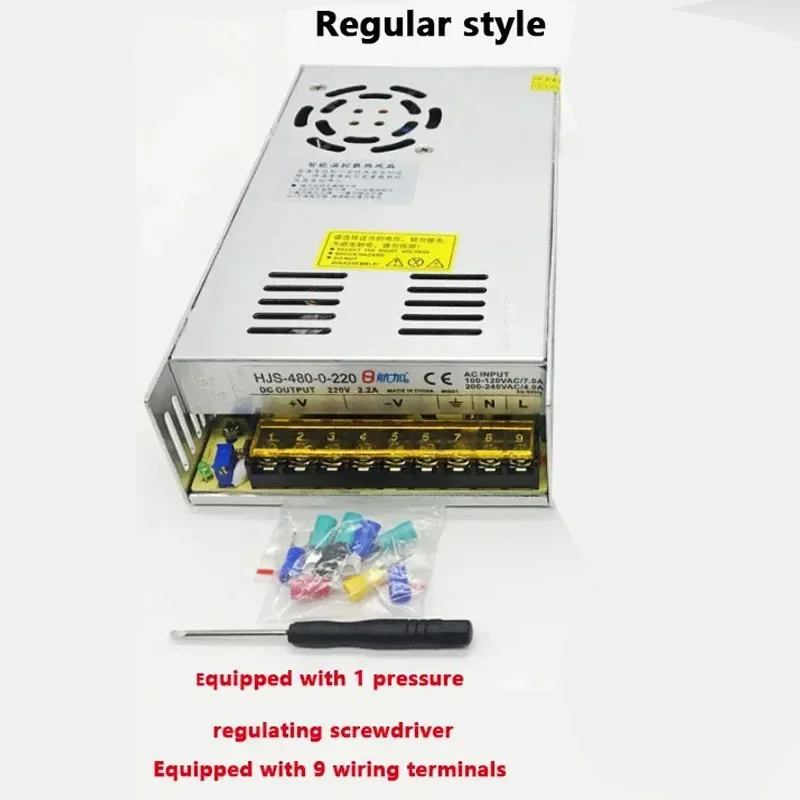

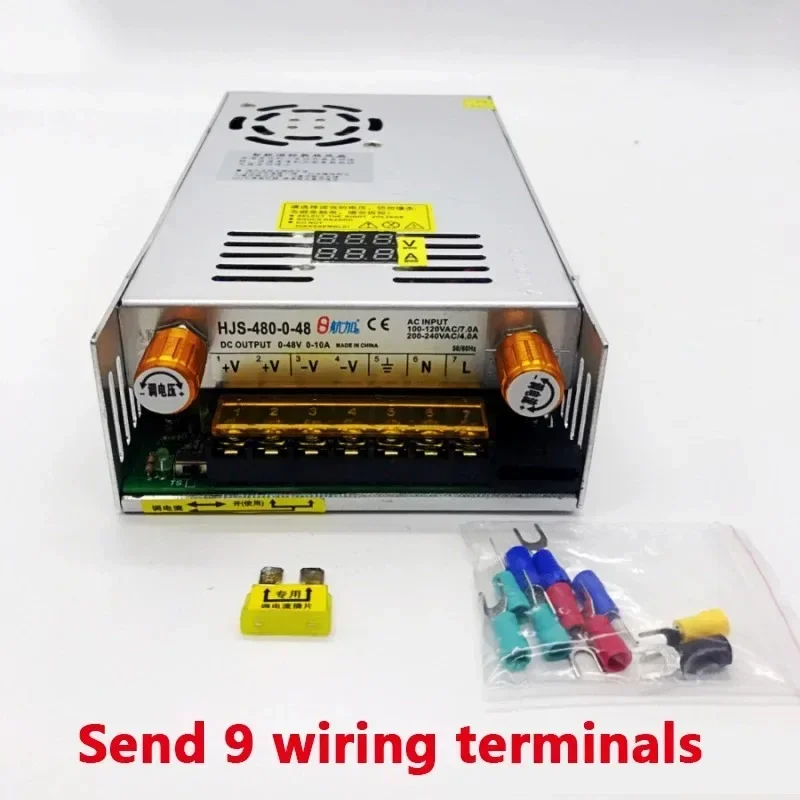

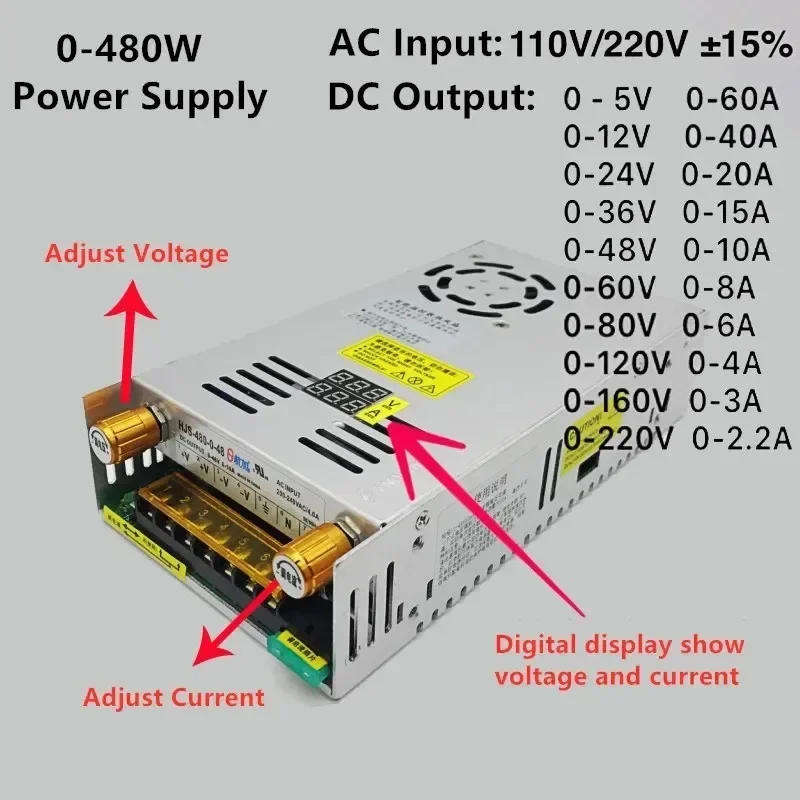

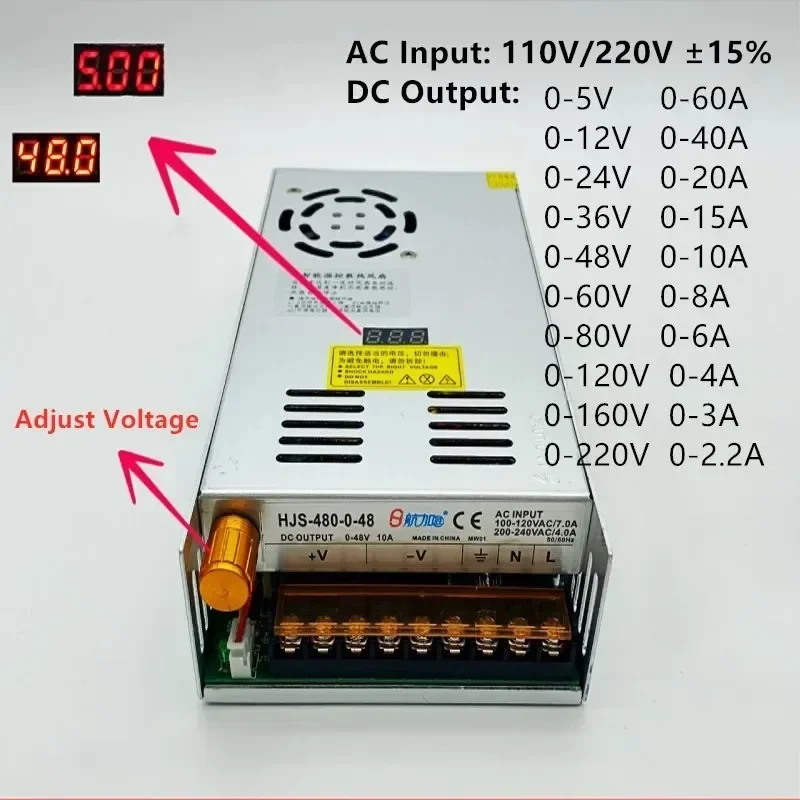

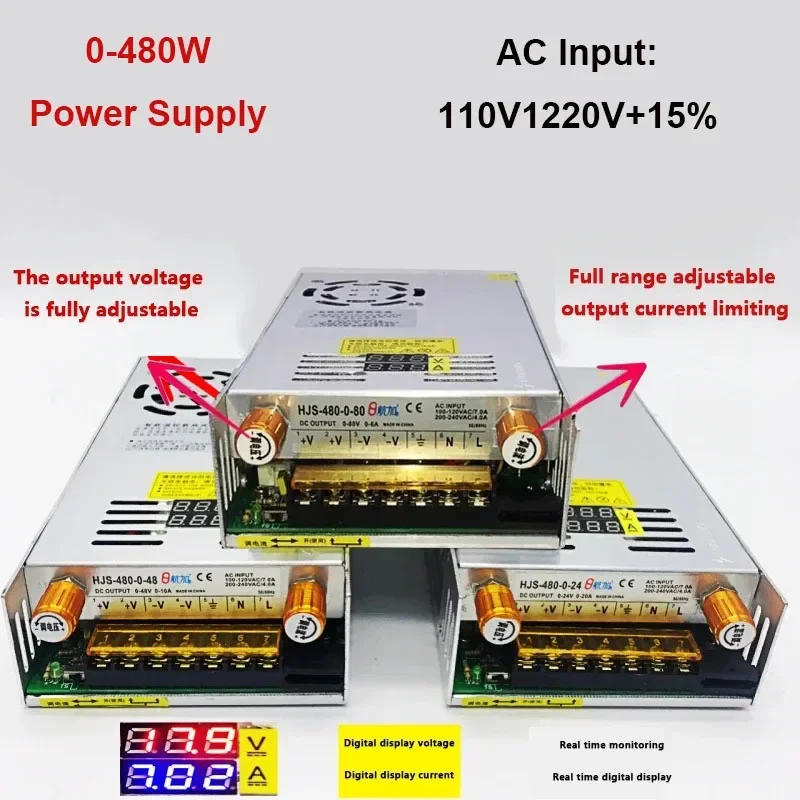

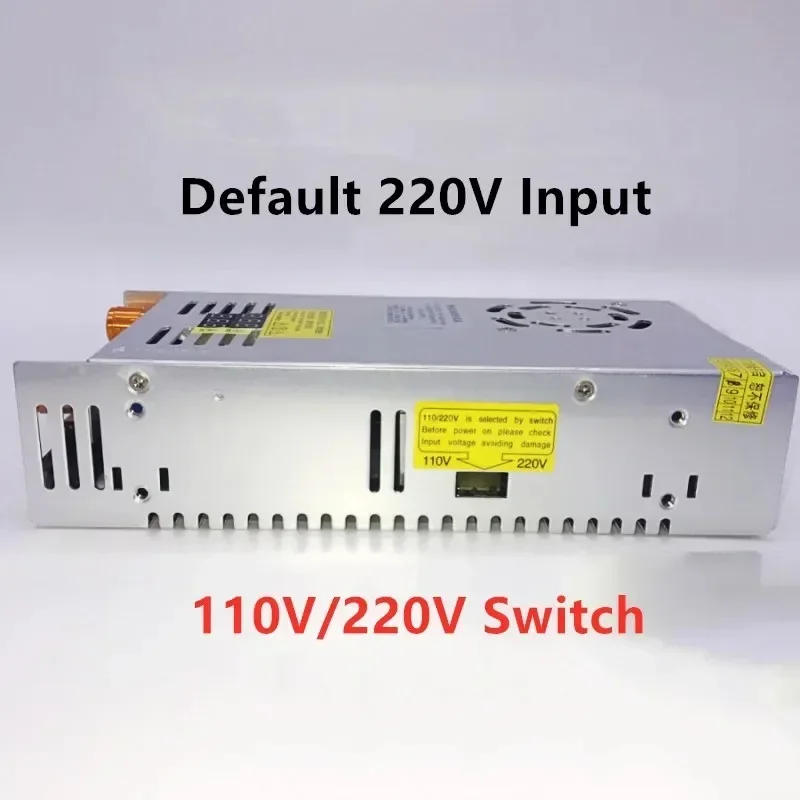

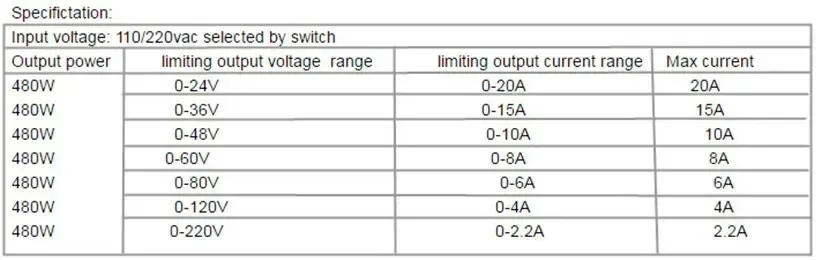

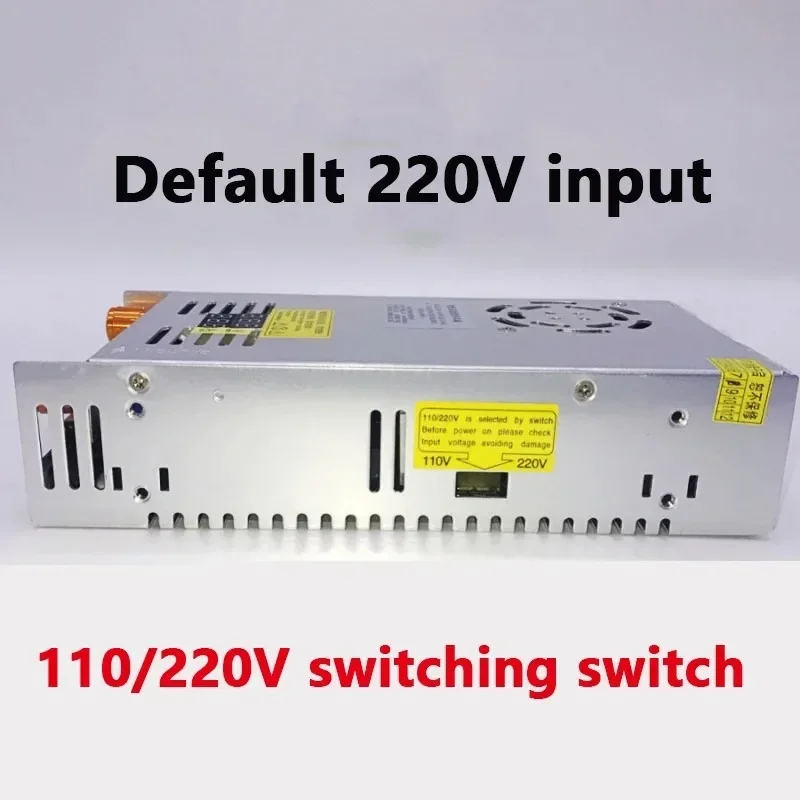

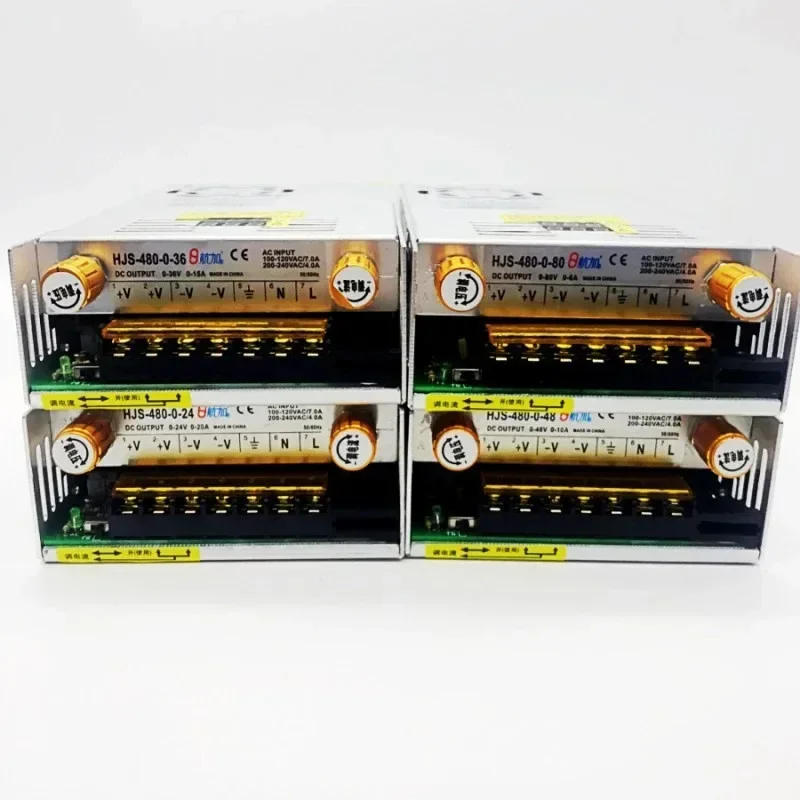

• AC DC Transformers 220V To 5V 12V 24V Switching Power Supply Adjustable 36V 48V 60V 80V 120V 160V 220V 480W Digital Display First, technical functionality indicators 1 Output voltage range: 0-- 5V continually adjustable output current: 60A Output voltage range: 0-12V continuously adjustable output current: 40A Output voltage range: 0-24V consistently adjustable output current: 20A Output voltage range: 0-36V constantly adjustable output current: 15A Output voltage range: 0-48V constantly adjustable output current: 10A Output voltage range: 0-60V continually adjustable output current: 8A Output voltage range: 0-80V consistently adjustable output current: 6A Output voltage range: 0-120V constantly adjustable output current: 4A Output voltage range: 0-220V consistently adjustable output current: 2 2, Ripple voltage; not more than 100mV 3, The equivalent inside resistance of the regulator: not more than 0Ω 4, Voltage adjustment rate: 5, with quick circuit, overload protection, automated recovery operate Input voltage: AC110V/220V±15% Rated power: 480W Product size: 21 (length) * eleven (width) * 5CM (height), The Output recent will depend on the burden ,can&;t more than the max output latest Instructions for use: Uses: Mainly utilized in different DC equipment, DC motor stepless velocity regulation, LED stepless dimming, chemical electroplating speed regulation, medical study test, student experiment, etc, and a wide range of uses Special attention: If using inductive load akin to motor or fan, please pay attention to the motor beginning recent parameter This parameter must never be increased than the power delivery latest Otherwise, the power delivery may be damaged You should choose the next latest energy delivery or present smooth beginning defense for the motor The circuit absorbs the inrush latest formula) voltage X latest = powerTerminal description and wiring methodL, N AC input terminal FG floor mark V+ DC output superb terminalV-DC output negative terminal ADJ adjustable potentiometer Fine-tuning output DC voltage● Full voltage input● Miniaturization● Protection operate Short circuit / overload / over voltage● one hundred pc full load aging testInput Voltage & Frequency Range----------110V/220VAC/47 ～ 63HzStart surge recent ---------------20A@120VAC (cold start)Output adjustment vary --------------- ±100% (rated output voltage)Overload defense -------------------105%~200% (rated load), self-recoveryOvervoltage defense -------------------115%~135% (rated output voltage)Short circuit protection ------------------- self-recoveryOutput beginning time --------------- ≤ 2S@120VAC ≤1@230VACOutput maintain time --------------- ≥ 10mS@120VAC, ≥20mS@230VACInsulation power ------------------- Input - Output: AC1500V, 1min Input - housing: AC1500V, 1min Output - Case: DC500V, 1minWorking surroundings ------------------ -10 ° C ~ 50 ° C; 20% ~ 90% RH (no condensation)

•
•
•
•
•
