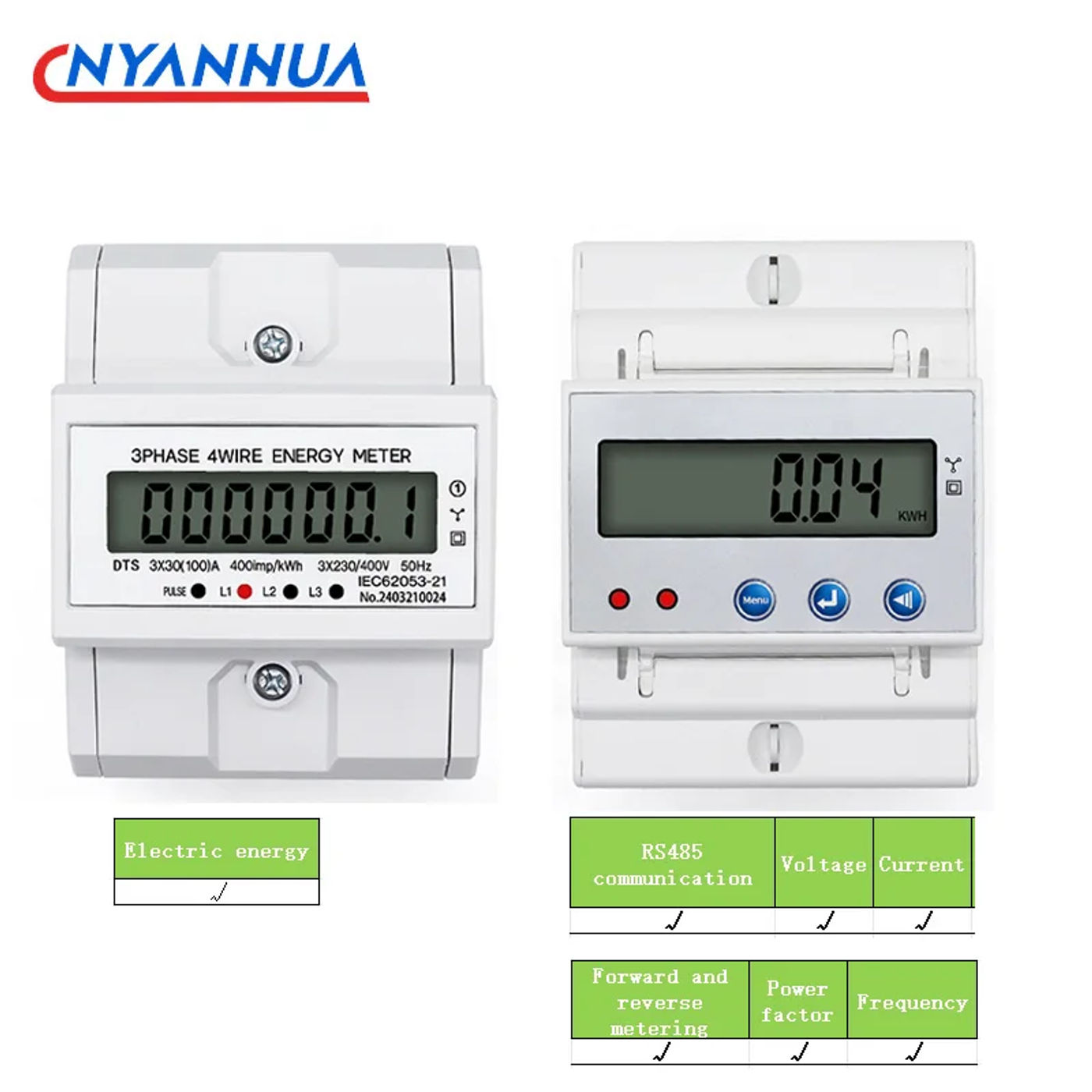

• DTS024 Only measuring electricity Model:DTS024 Voltage:AC230V/400V Constant Pulse: 400imp / kWh Power Consumption: ≤2W, 10VA Display: LCD 6+2 Size:3 X 2 X 2 Accuracy of voltage:Class 1 Install way:Din Rail MAX Current:100A Frequency:50/60Hz Operating Temperature: -20 ~ 50℃ DTS024M Multi practical voltage, current, electrical energy, energy ingredient RS485, etc Describe It can instantly and precisely measure AC active energy with a rated frequency of 50/60Hz The LCD displays whole active/reactive energy, input/output active/reactive energy, three-phase voltage, current, total/phase active power, total/phase power factor: frequency and other information It has the traits of excellent reliability, small size, mild weight, exquisite appearance, and flexible and handy installation Specifications 1 35mm DIN typical rail installation, in keeping with DINEN-50022 typical 2 High accuracy dimension of energetic energy, energetic calories point 1 and reactive calories point 2, or energetic energy level zero and reactive calories point 2 three LCD 5+2 bit display (99999), with out backlight four Passive pulse output, compliant with DIN43864 common five LED indicator pulse output 6 Can soon question diverse parameters and wake up the RS485 communique interface with backlight by urgent buttons on site, MODBUS conversation protocol 7 Equipped with reactive energy metering, exhibiting purposes reminiscent of current, voltage, power factor, and so on Package Included 1 × Multi function watt hour meter

•
•
•
•
