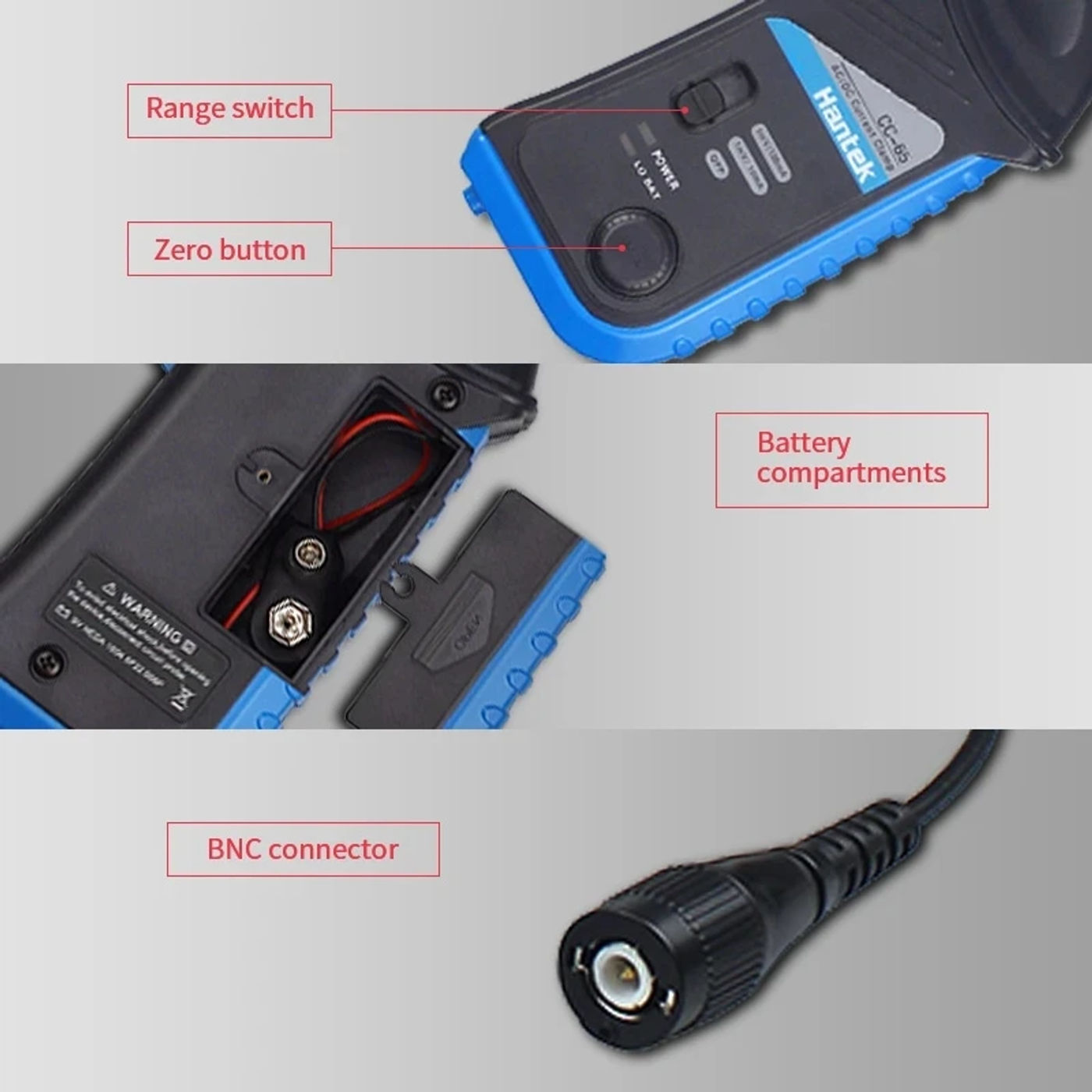

• Hantek CC-65 AC/DC Multimeter Current Clamp Meter with BNCConnector 20KHz/400Hz Bandwidth 1mV/10mA CC650 Oscilloscope AC/DC frequency range: Up to 20 kHz Effective Measurement Range: 20mA to 650A DC It is a transducer which permits your multimeter to measure current records and allow your oscilloscope to measure the present waveforms Its current transducer is composed by permalloy and corridor element, which linearly transform the AC or DC latest to AC or DC current voltage And if connect with an oscilloscope through BNC sort connector, you\&;re able to notice the present waveforms; If connect to a multimeter by banana type connector, you would achieve the present data Application: Power circuit dimension and malfunction analysis; ·Motor force of frequency converter (or other electronics) measurement; ·Power electronics equipments size General Characteristics Conductor length could be measured: the maximum diameter of 30mm Low battery indicator: red led mild flashes Operating temperature range: zero to50 , 70% R Storage temperature range: -20 ~ + 70 , 80% R Weight: 290gm (typical) Dimensions: 178 mm (H) x 70 mm (W) x 33 mm (D) Electrical Characteristics (23 ± 5 , 70% R maximum) Accuracy: DC Current: 0 to 650A, ± (3% of reading + 2A) AC latest (50Hz to 400Hz): zero to 500A, ± (3% of studying + 2A) 500A to 600A, ± (6% of studying + 2A) 600A to 650A, ± (8% of studying + 2A) Load Impedance: 10KΩ (typ) Output ratio: 0 to 650mV (AC / DC) corresponds to 0 to 650A (1mV / 1A gear); zero to at least one (AC / DC) corresponds to zero to 160A (1mV / 100mA range); Specification Note This products didn&;t contain the Batteries due to the AirPlane Limits Hope you might understand!Thanks!

•
•
•
•
•
