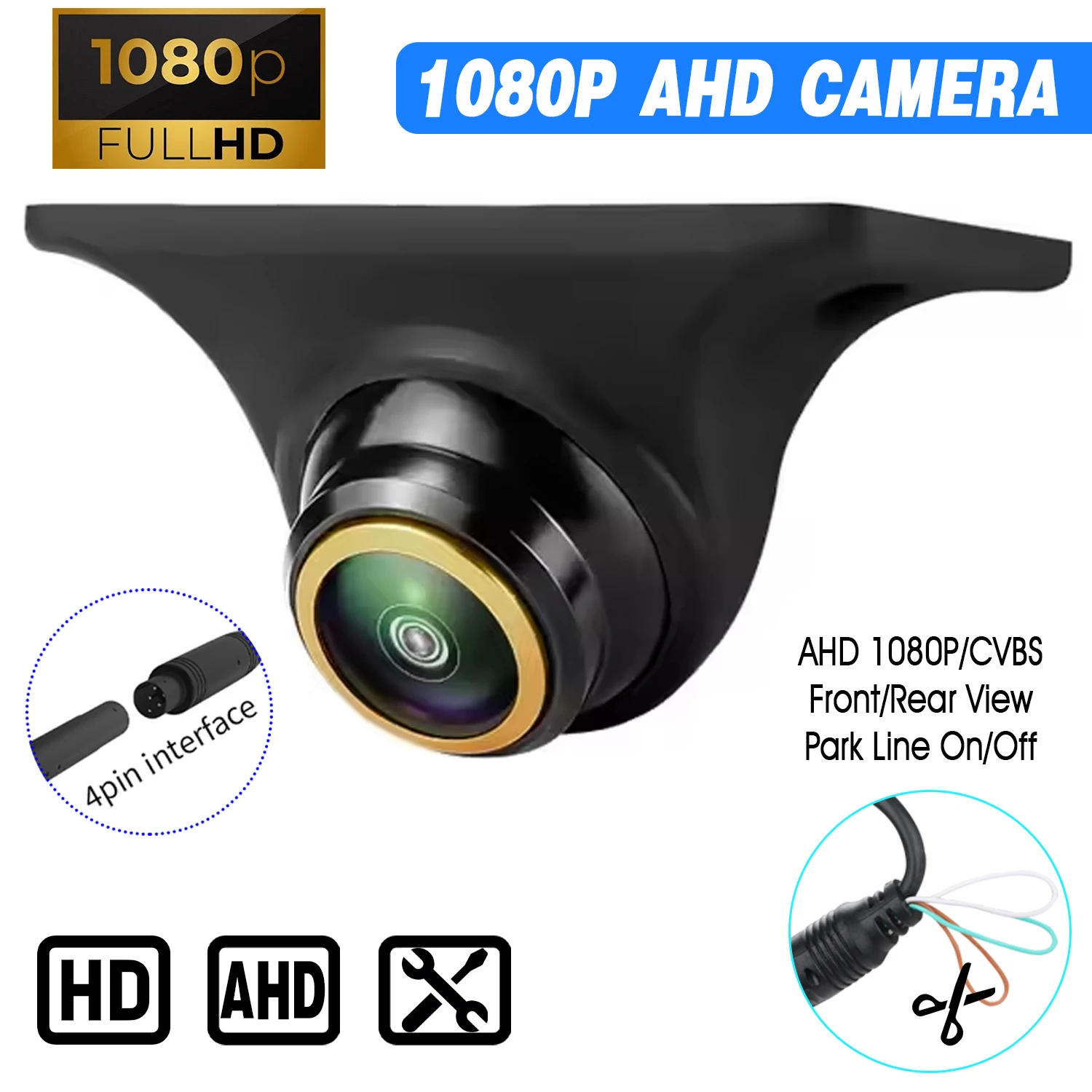

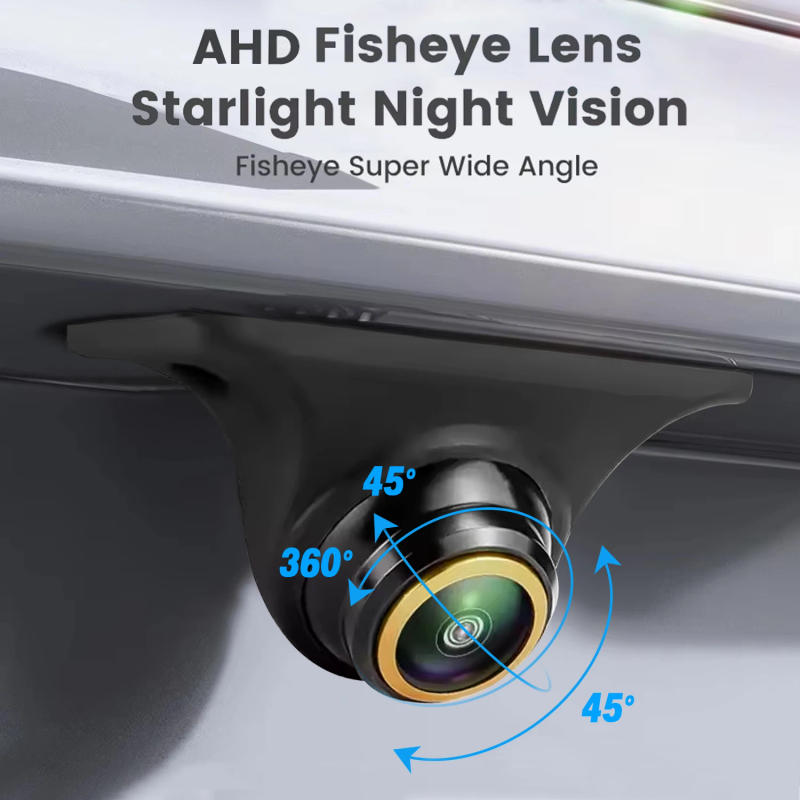

• Why Choose Our AHD/CVBS Backup Camera? Wide Compatibility: Works with AHD-1080P and CVBS supported car reveals and multimedia devices (e, MP5, Android devices) Versatile Viewing: Ideal for front, rear, left, and right views—perfect for parking, reversing, and lane adjustments Easy Customization: Switch between AHD and CVBS modes or adjust settings by means of chopping the corresponding wires Enhanced Safety: Offers a wide field of view for complete coverage, putting off blind spots and making parking and reversing safer Note: Monitor reveal is not incorporated Signal Format Compatibility: 1 Signal: Ensure your automobile video display helps AHD alerts If it doesn’t, swap to CVBS and restart the camera’s strength 2 and CVBS switch: If your automobile demonstrate doesn't assist AHD, cut the orange loop to switch to the CVBS signal, then restart the camera’s power Wire Functions: Orange Wire: Default is AHD signal To change to CVBS, cut the cord Green Wire: Default is Mirror mode To swap to Non-mirror, cut the cord White Wire: Default is Guideline ON To flip off the guideline, reduce the cord Note: After reducing any wire, reconnect the ability and restart the machine for the changes to take effect No Signal or Black Screen on Display? 1 Signal Format: Ensure the proper sign structure (AHD or CVBS) is chosen in accordance with your monitor’s compatibility 2 Connections: Make yes the crimson trigger wire is hooked up to the reverse light and the reverse-in cable at the display screen 3 Option: If your video display supports AUX-IN, you would connect the camera to the AUX-IN port Selecting the incorrect sign ordinary (like PAL or NTSC) can cause a gray and white screen NTSC is used for CVBS cameras PAL is used for AHD 1080P cameras Please favor the right sign common and restart the camera’s energy

•
•
•
•
