Description

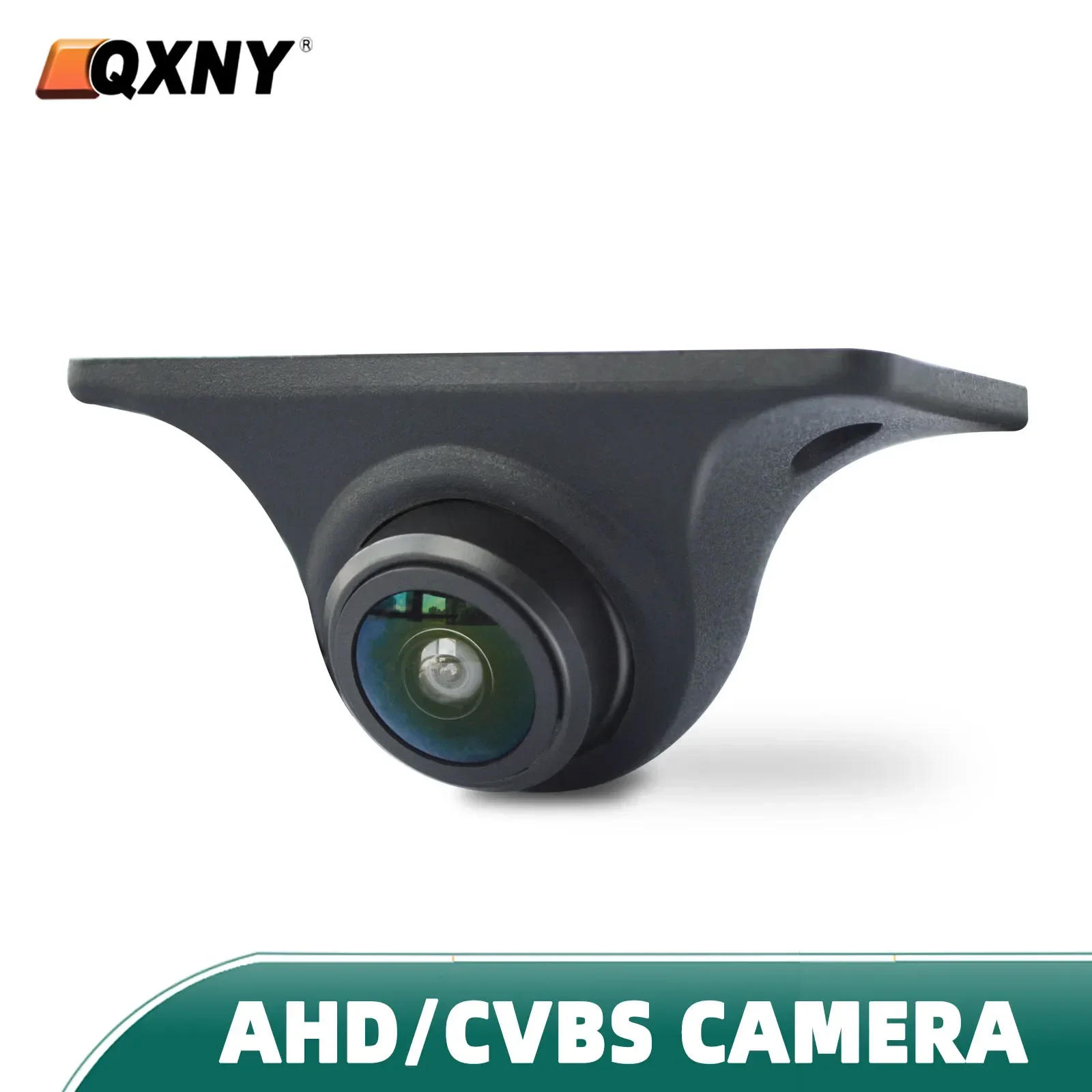

• Purchase need to know 1: Video signals must match:There are commonly two varieties of video signals output by way of cameras, AHD or CVBS, and your system should match it to display it normally Now, automobile DVD, Android display, automobile navigation and different instruments can assist receiving CVBS or AHD signals at the similar time 2: Connectors must match: There are 4-PIN, RCA and different connectors, please eavesdrop on whether or not they match 3: This product could be switched between the AHD and CVBS signals, which may flip the display screen The parking line could be displayed or hidden The product is RCA connector, DC12V Tips, About AHD Style: Adjustment to AHD signal via display screen settings is needed before mounting the camera Go to Car settings >> Factory settings >> Reverse (picture) settings >> Select AHD The digicam can flip the display and can be installed in several locations in the automobile 170° Wide Angle Fisheye Lens - Real 170° AHD1080P/720P Optional Camera Starlight Night Vision Starlight night vision function allows the digicam to be used properly even at night Waterproof The digital camera is filled with water resistant silicone, Effective chip protection, IP68-Rated for Use in Extreme Conditions Conversion Line Control White: Parking line swap Brown: Mirror management Green: Signal control Integrated Step-down Module Package 1 digicam 2 Retail box three Power cable (6m) 4 User handbook Installation Diagram FAQ: After connecting the rearview camera, the screen displays no signal, a black screen, and no picture, what must I do? A) Please test your sign layout (AHD/CVBS), and judge the correct signal to run the digicam B) Please examine your connection, the crimson set off line must connect with your opposite mild and video display the reverse-in cable C) If your monitor has an AUX-IN function, you could connect with the AUX-IN Tip: CVBS cameras can test the functionality of the TV Universal cameras with 4Pin plugs can solely be installed with our cables You can seek the advice of customer support while you stumble upon any issues throughout the installation process After connecting the rearview camera, the display screen shows black and white, what must I do if there isn't any color? A) Choosing the wrong digicam system(such as PAL/NTSC) will cause the display to be black and white Please select the correct components to run the digital camera and restart the digicam power CVBS digital camera is an NTSC system, and the AHD1080P camera is a PAL system B) Please verify whether or not the 6M line is normal, please update it with another 6M cable to check the digital camera What functions are controlled by each of the three cables of the rearview camera? Green Cable: Video Signal Control • AHD Camera Cut the white cable→ CVBS Camera Brown Cable: Mirror Control • The default is the rearview digital camera (Mirroring) Cut the white cable→ Front view digicam ( Non-mirroring ) You can also manually rotate the field perspective 90 °, to realize the impact of the facet digital camera White Cable: Parking Line Control • The camera with the parking line/camera doesn't show the parking line, you may cut the fairway cable, after which reconnect the camera&;s energy supply, which might substitute the parking line Does it support customized products? Yes, we can customize all types of chips, lenses, colors, accessories, and appearance, please touch us for any interest

•
•
•
•
•
