Description

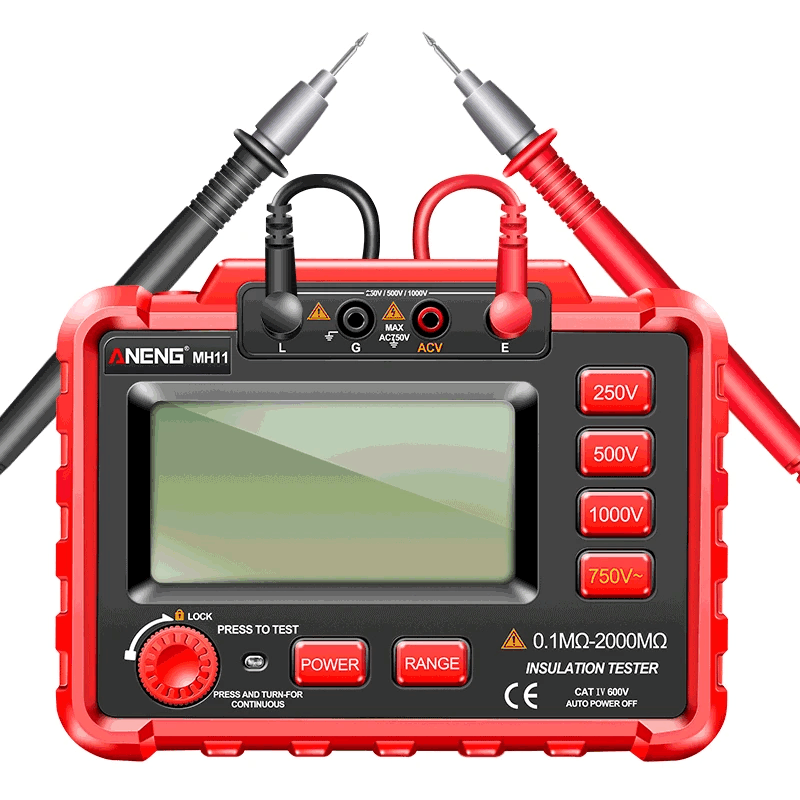

• ANENG MH11 Digital Megohmmeter Meters 250/500/1000V Insulation Earth Resistance Meters Tester cable Voltmeter Megger Meter(NO adding battery) Overview: Insulation sequence electronic tester which adopts low loss high ratio of inductance calories storage DC voltage converter can change 12V voltage into 250V/500V/1000V DC voltage It makes use of electronic LCR bridge for resistance dimension and the insulation resistance verify It has many benefits resembling light, wide measuring range, backlight display, examine lock and different operate It is also used for electricity size with super progressed appearance, stable functionality Based on straps design, you may function with both hands It can utilized in motors, cable, mechanical and electrical equipment, telecommunications equipment, energy facilities and different insulation resistance testing areas Technical Parameters: basic purposes measring vary basic accuracy output voltage 250V/500V/1000V ±10% verify recent 250V(R=250kΩ)1mA ±10% 500V(R=500kΩ)1mA 1000V(R=1MΩ)1mA RANGE Insulation resistance 250V:0Ω-20MΩ ± (4% ± 2 ) 500V:0Ω-50MΩ 1000V:0Ω-100MΩ 250V:20MΩ-500MΩ ± (4% ± 2 ) 500V:50MΩ-1000MΩ 1000V:100MΩ-2000MΩ short-circuit recent ＜1 Median resistance 250V/500V:2MΩ 1000V:5MΩ ACV 750V ± (1% + 6 ) Package inclued: 1* Resistance megohmmeter 1* Aligator clip 1* Test lead 1* Manual 1* Packing box

•
•
•
•
•
