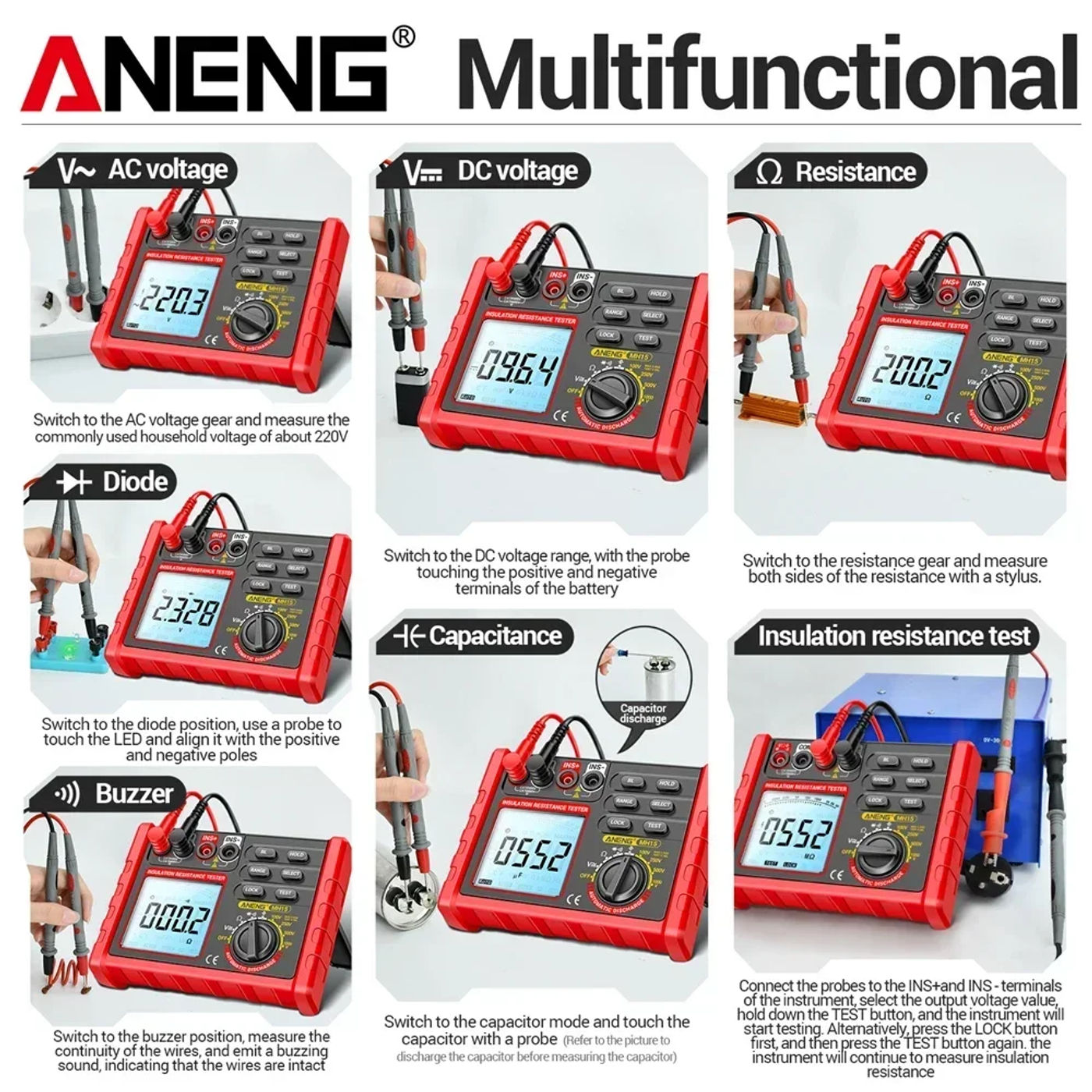

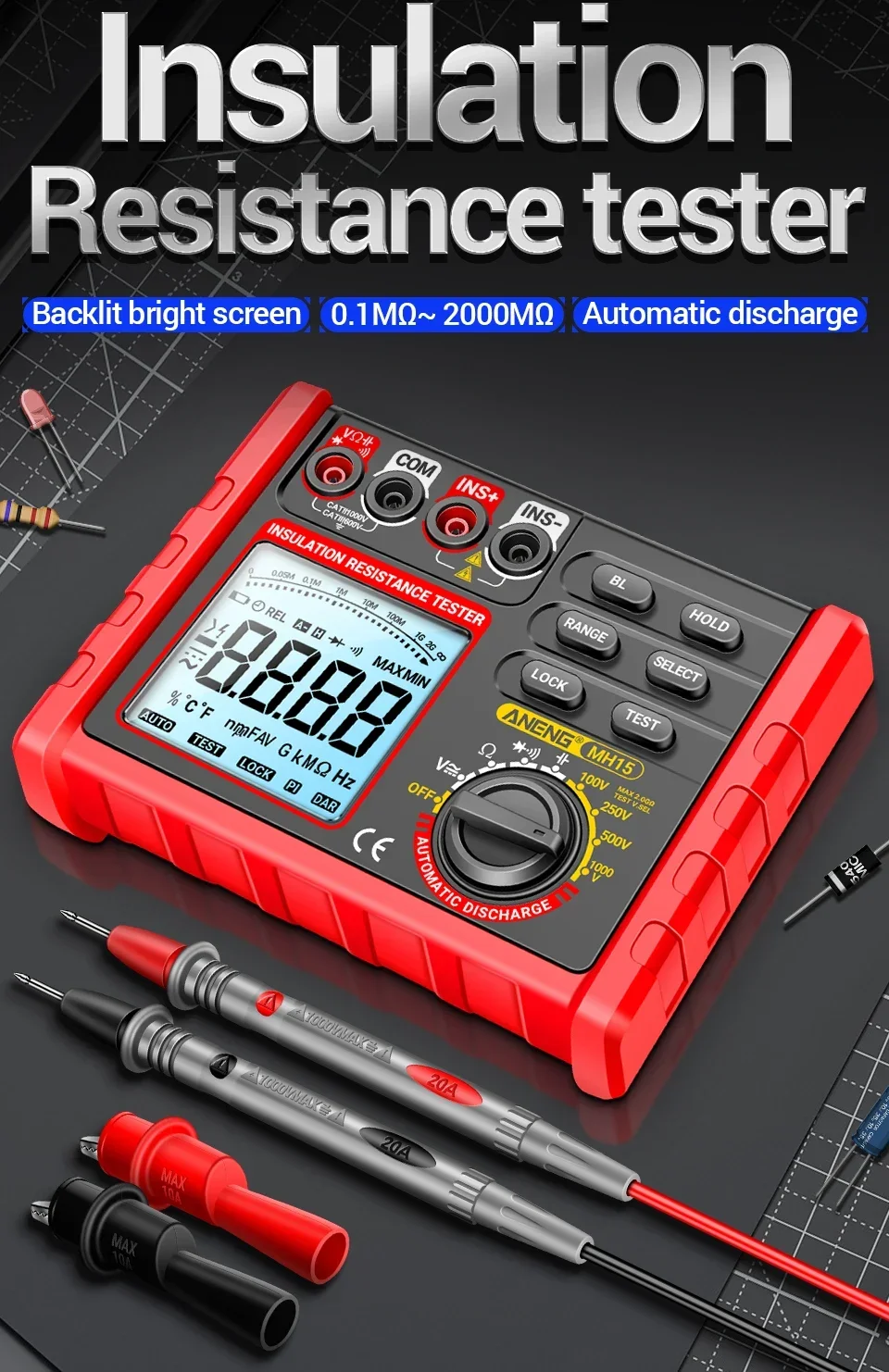

ANENG MH15 Digital Ohmmeter Insulation Resistance Meter 6000 Count Resistor Testers Capacitor Test Megohmmeter High Voltage ToolGeneral:This tool is a battery powered insulation resistance tester that can be used to measure DC voltage, AC voltage, resistance, on-off, diode and insulation resistance When measuring insulation resistance, there are 4 examine voltages to make your mind up from: 100V, 250V, 500V and 1000V This tool has polarity indication, over range indication, data retention, automatic retention and other applications It is easy to apply and is a precision measuring software
Function
Range
Resolution
Precision
AC voltage
0V-750V
1mV-1V
±(2%+5d)
DC voltage
0mV-1000V
0
±(1%+5d)
Capacitor
0nF-60mF
1pF-10uF
±(6%+20d)
Resistance
0Ω-60MΩ
0Ω -10kΩ
±(1%+10d)
Diode
√
Automatic shutdown
15 min no operation Automatic shutdown
Buzzer
√
Battery model
1 AA battery*6 pcs (without shipment)
Weight
419g
Automatic discharge
√
Max depend
6000 count
Data retention
√
Material
ABS/Silicone
Low energy prompt
√
Insulation resistance purposeful differ
Test voltage gear
Display vary
Precision
100V
0~20MΩ
±(3%+10d)
20~100MΩ
±(4%+10d)
250V
0~20MΩ
±(3%+10d)
20~200MΩ
±(4%+10d)
500V
0~20MΩ
±(3%+10d)
20~200MΩ
±(4%+10d)
200~500MΩ
±(5%+10d)
1000V
0~20MΩ
±(3%+10d)
20~200MΩ
±(4%+10d)
200~500MΩ
±(5%+10d)
500~2000MΩ
±(6%+10d)
THE PARAMETERS ARE FOR REFERENCE ONLY,AND THE ACTUAL MEASUREMENT OF THE SPECIFIC EQUIPMENT SHALL
The packaging includes: (Battery now not included)
1 * Packing box
1 * Storage bag
1 * Insulation resistance tester
1 * Manual
1 * Alligator clipX2
1 * Pen line
