Description

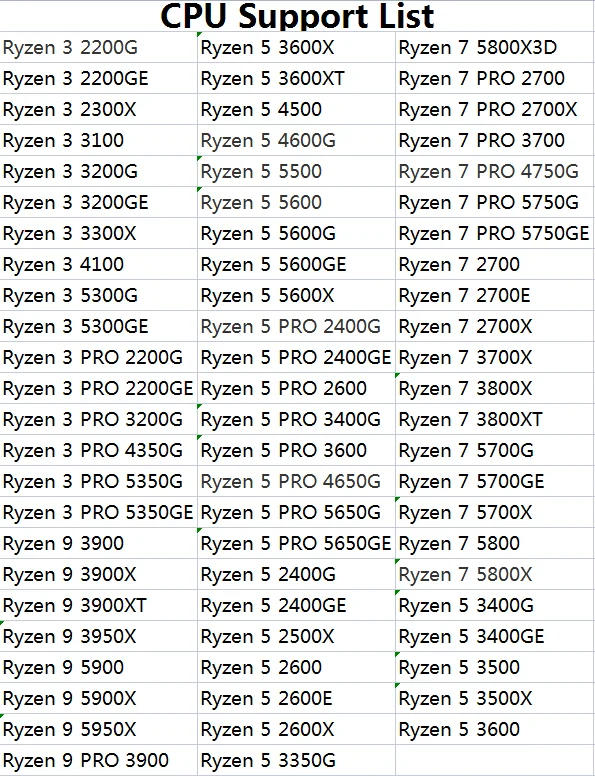

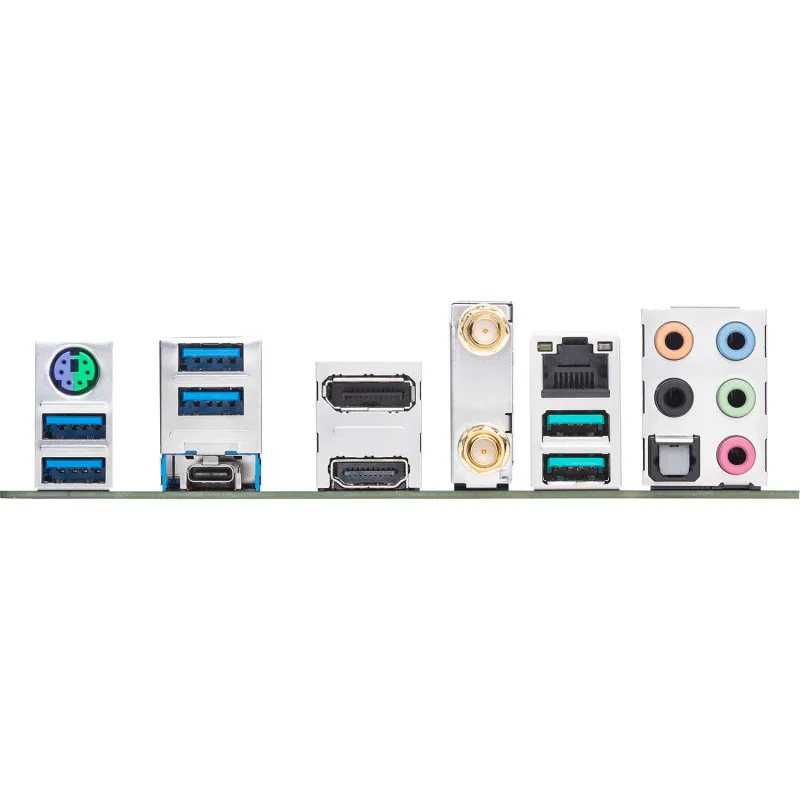

• motherboard chip Integrated chip sound card/network card Main Chipset AMD X570 Chipset Description Using AMD X570 Chipset Display chip CPU integrated demonstrate chip (requires CPU support) Audio chip Integrated Realtek S1220A 8-channel sound chip Network card chip Onboard Realtek L8200A Gigabit network card Processor Specifications CPU Type AMD 3rd/2nd Gen AMD Ryzen, 2nd/1st Gen AMD Ryzen with Radeon Vega Graphics Processors CPU socket Socket AM4 Memory Specifications Memory type 4×DDR4 DIMM Maximum memory capability 128GB garage growth PCI-E Standard PCI-E 4 PCI-E slot third Gen AMD Ryzen processor 1 x PCIe four x16 (x16) 2d Gen AMD Ryzen Processors 1 x PCIe three x16 (x16) second and 1st Gen AMD Ryzen with Radeon Vega Graphics processors 1×PCIe 3/2 x16 (x8 mode) AMD X570 chip 1×PCIe four x16 (max x4 mode) 2 x PCIe 4 x1 Storage Interface third Gen AMD Ryzen Processor: 1×M socket 3, help M Key, help 2242/2260/2280 (PCIE four x4 and SATA mode) garage machine 2nd Gen AMD Ryzen Processors : 1×M socket three AMD X570 chip: 1×M socket 3 8×SATA III interface I/O interface USB third and second Gen AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors: 4×USB3 Gen1 interface (4@ after) AMD X570 Chipset : 3×USB3 Gen2 ports (3@rear, 2 x Type-A+1 xUSB Type-C) AMD X570 Chipset : 2×USB3 Gen1 interface (2@front) AMD X570 Chipset: 4×USB 2 ports (4@front) Video interface 1 × HDMI interface, 1 × Display Port interface Power connector One 4-pin, one 8-pin, one 24-pin energy connector Other interfaces 1×PS/2 keyboard and mouse total interface, 1×RJ45 network interface, 5×audio interface, 1×optical fiber interface plate form Mainboard kind component ATX form component Dimensions: 30×24 Please word the cpu edition you are using when paying

•
•
•
•
•

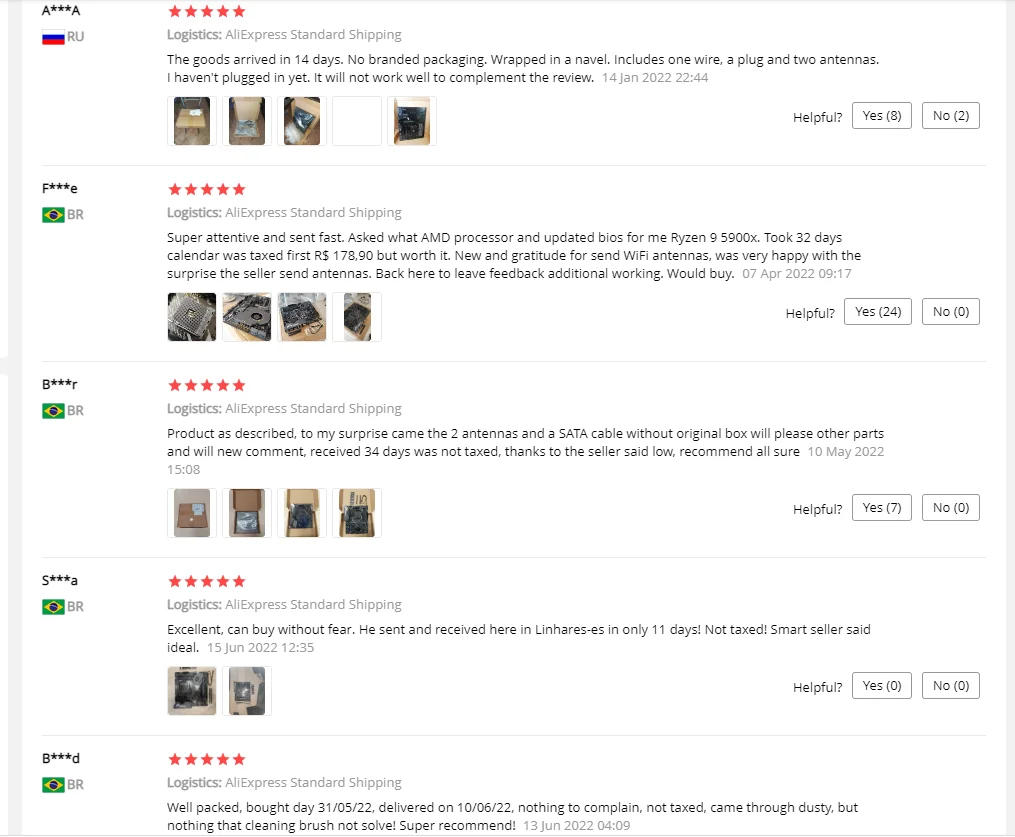

Review
