Description

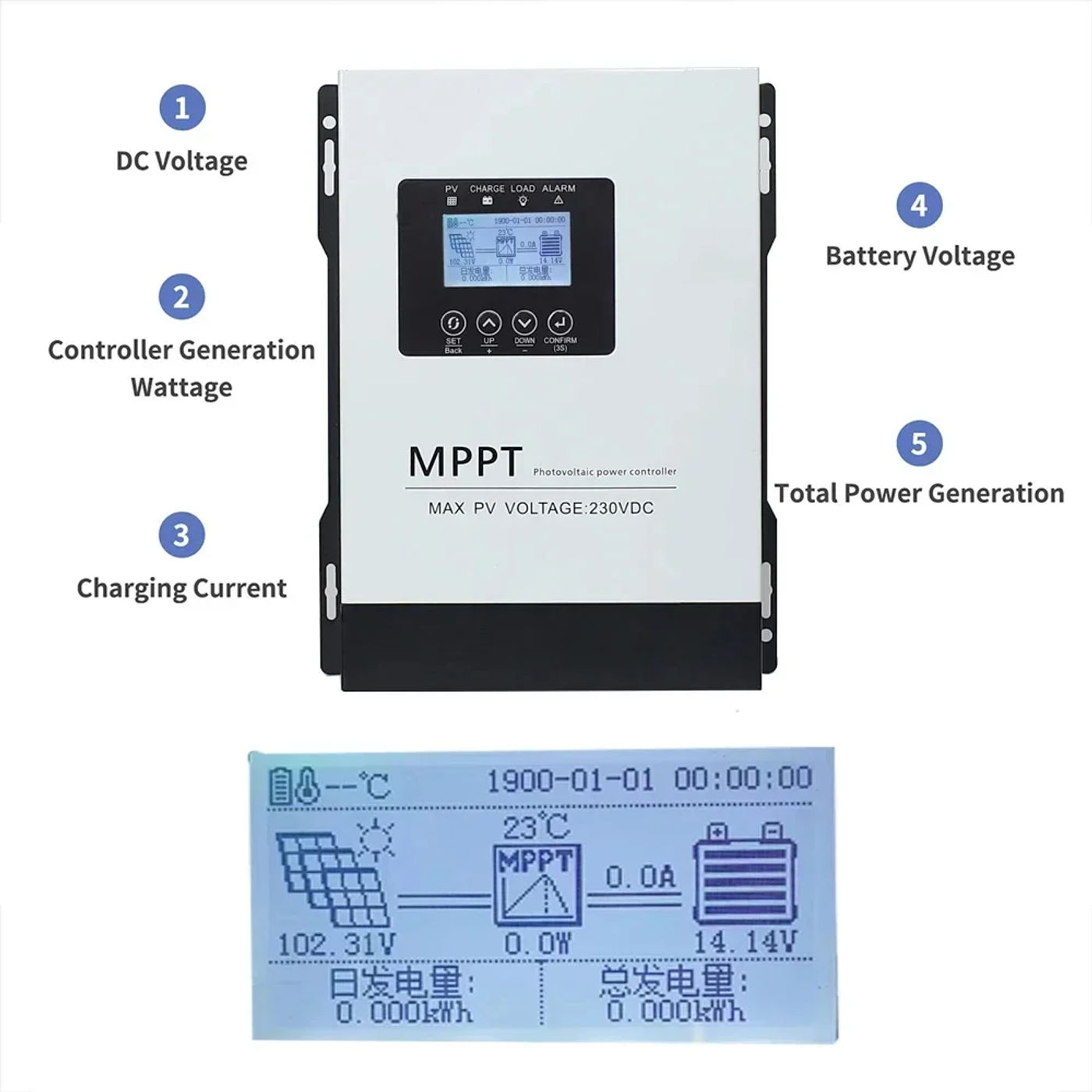

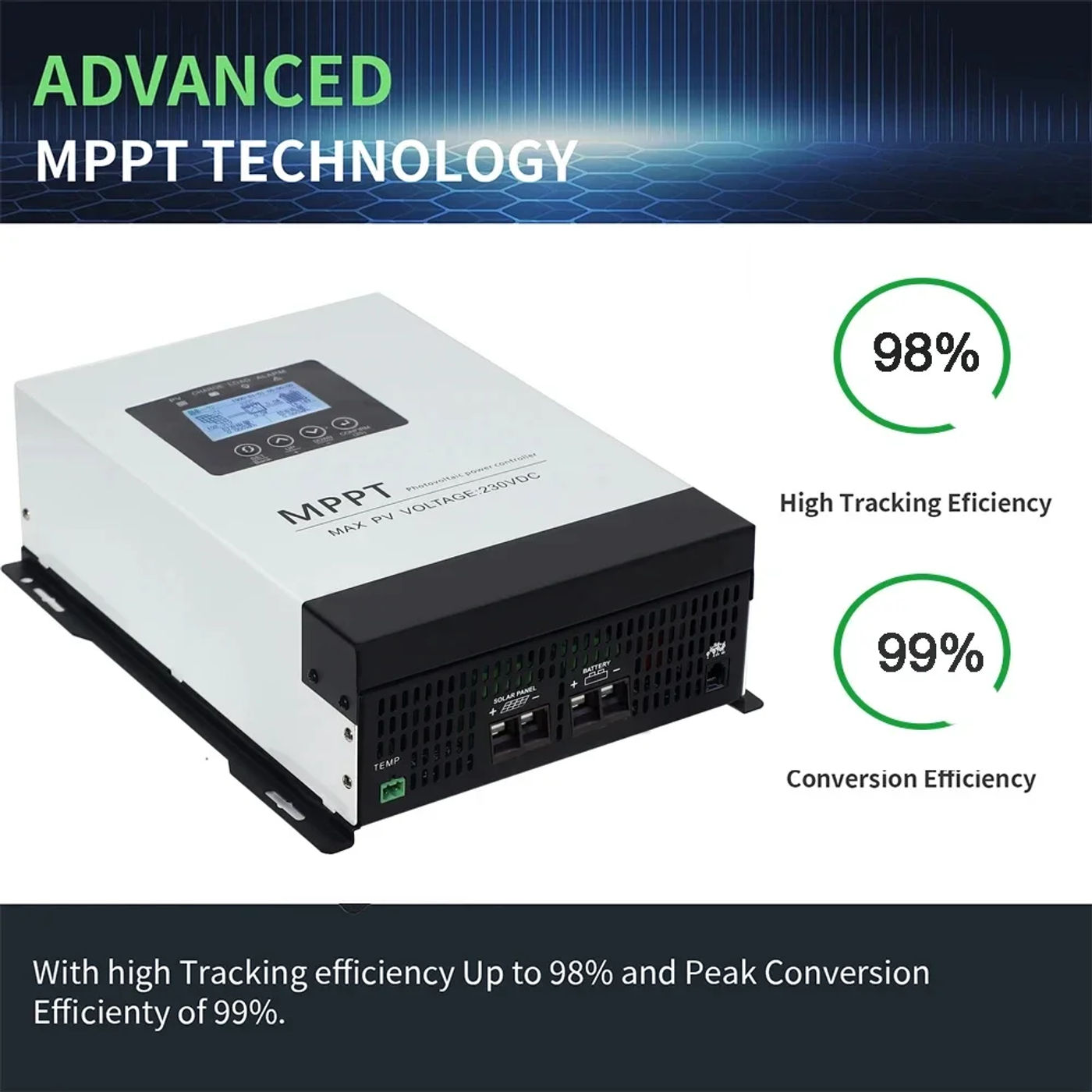

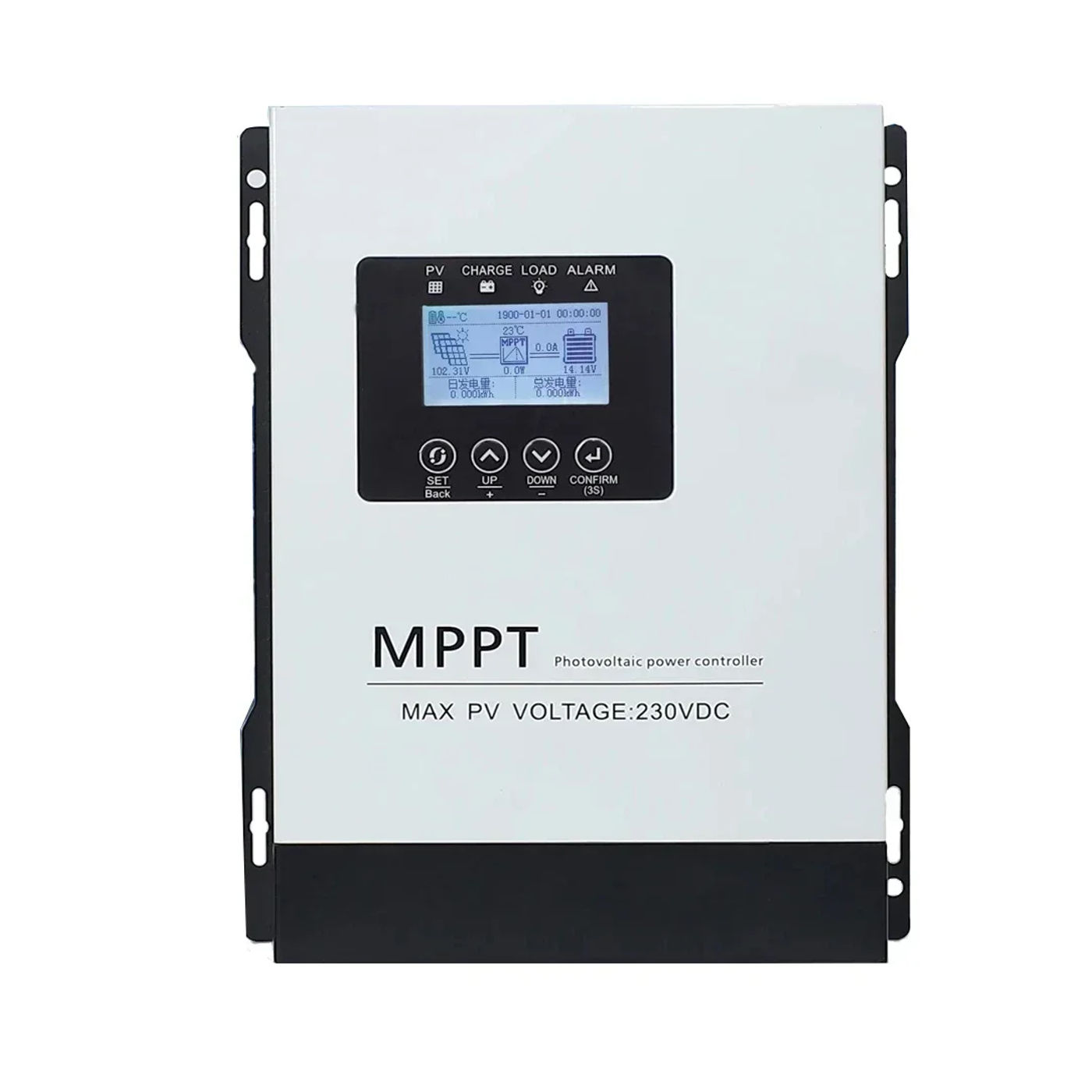

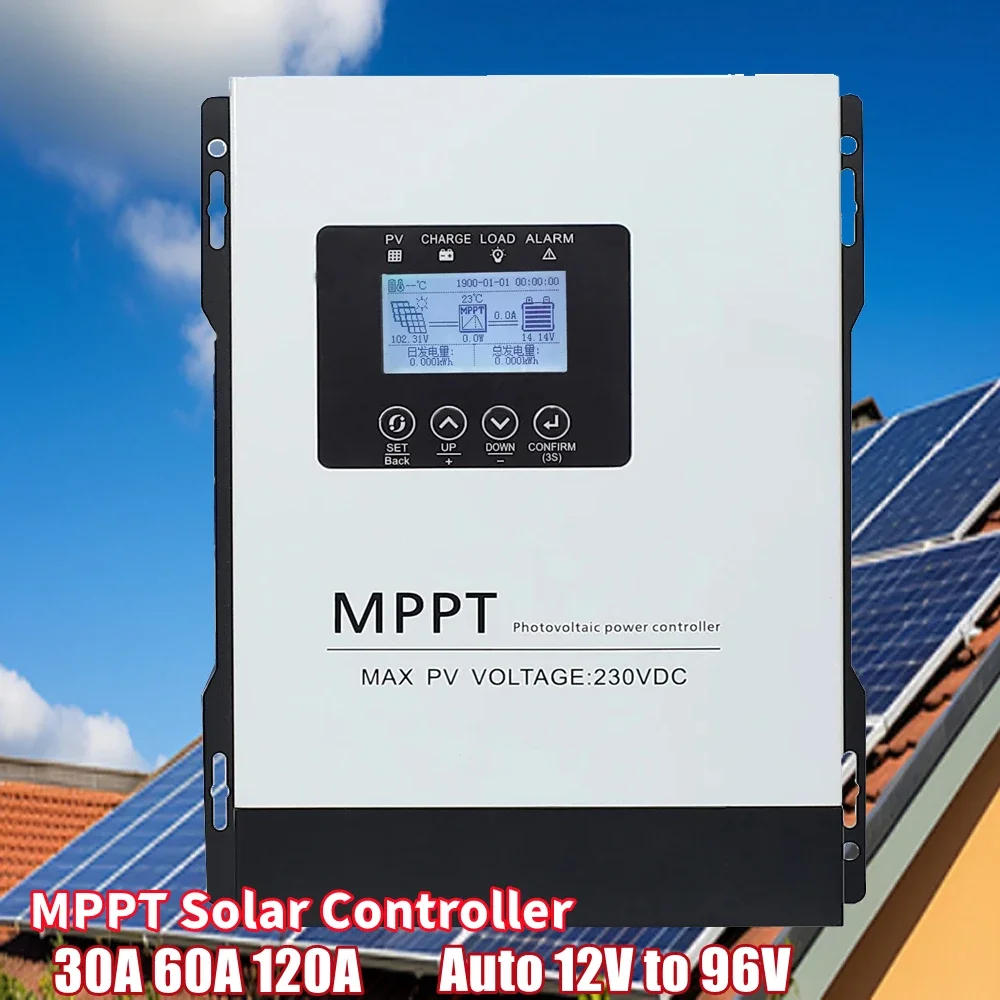

• Auto 12V-96V MPPT 30A 60A 120A Solar Charge Controller 230V LCD Touch For Lifepo4 Lithium GELLead Acid Home Solar Panel System Basic functions: Innovative most strength point monitoring technology, which may greatly improve the energy usage rate of the photo voltaic system, and the conversion performance is as high as 97%; Quickly scan the whole I-V curve, and efficiently music the maximum power point; Three sorts of lead-acid batteries, sealed, colloidal, and open type, and lithium battery sequence charging applications are optional; With automated defense functions for overcharge, overdischarge, overload and quick circuit; RS485 communication interface( If you need RS485 protocol, please touch me), multi-machine verbal exchange is possible, and it's convenient to view the working parameters of the controller; MPPT control elements This controller is used in solar off-grid power generation method to automatically regulate battery charging and discharging It has a sophisticated monitoring set of rules to acquire the maximum strength of the solar mobile components and charge the battery; on the identical time, its low voltage disconnect (LVD) function can prevent the battery from over-discharging and inflicting damage The battery charging technique of the MPPT controller is optimized to increase battery lifestyles and upgrade components performance Its complete self-test operate and electronic defense operate can avoid damage attributable to set up errors and formula mess ups Although the controller is easy to function and use, with a purpose to enable you to raised use all the functions of the controller and improve your photovoltaic system, please learn the instructions and directions on this manual carefully If you wish RS485 device, please contact me, it&;s 50USD loose transport MPPT model 30A 60A 120A Rated charging latest 30A 60A 120A Maximum PV Input Power 12v components 540w 1080w 2160w 24v method 1080w 2160w 4320w 36v components 1620w 3240w 6480w 48V system 2160w 4320w 8640w 6ov formula 2720w 5400w 10800w 72v components 3260w 6480w 12960w 84v formulation 3800w 7560w 15120w 96v method 4320w 8640w 17280w Charging mode MPPT automated maximum energy monitoring charging mode MPPT tracks maximum power, speedy charging, balanced charging and floating charging Battery kind Lead acid battery (12V / 24v / 36v / 48v / 96v automated identification) +(12v / 24v / 36v / 48v / 6ov /72v/ 84v / 96v adjustable) Gel Battery 12v / 24v/ 36v /48v / 6ov / 72v / 84v / 96v adjustable Lithium iron phosphate Unit voltage 3 * number of strings (2-45 adjustable) Ternary lithium battery Unit voltage three * number of strings (2-45 adjustable) User explained Equalizing charge, floating charge, DC discharge limit voltage adjustable: 8v -- 170v with lithium activation function with photovoltaic input, there's charging voltage (activate lithium battery), and Dcoutput can be used without battery Photovoltaic minimumvoltage delivery Charging The photovoltaic voltage is bigger than + 3v of the battery voltage (it can be charged with small latest in wet days) PV most open circuit enter voltage 0-230V Photovoltaic charging current adjustable 0-30A 0-60A 0-120A Dc recent output (street lamp function) Dc continuous output 25A temperature compensation Automatically compensate the charging voltage and current in step with the battery temperature to delay the battery lifestyles LCD touch button LCD display: (generating skill / photovoltaic voltage / battery voltage / charging latest / energy / operation status) Setting: (battery type, charging current, return to factory), Chinese and English exhibit 485 conversation 8-pin RS485 communique interface (operation repute and environment would be queried) Working environment temperature ～-20℃一+40℃ Static energy consumption 2w total performance 96%~99% Temperature defense 85℃ Temperature upward thrust defense Reduce strength output above 8o ℃ Protection function Photovoltaic array short-circuit,over-voltage,over-current opposite connection protection,battery overcharge,reverse connection protection,under voltageprotection humidity o~90% RH (no condensation) Mechanical protection point P21 Altitude 0~3000m

•
•
•
•
•
