Description

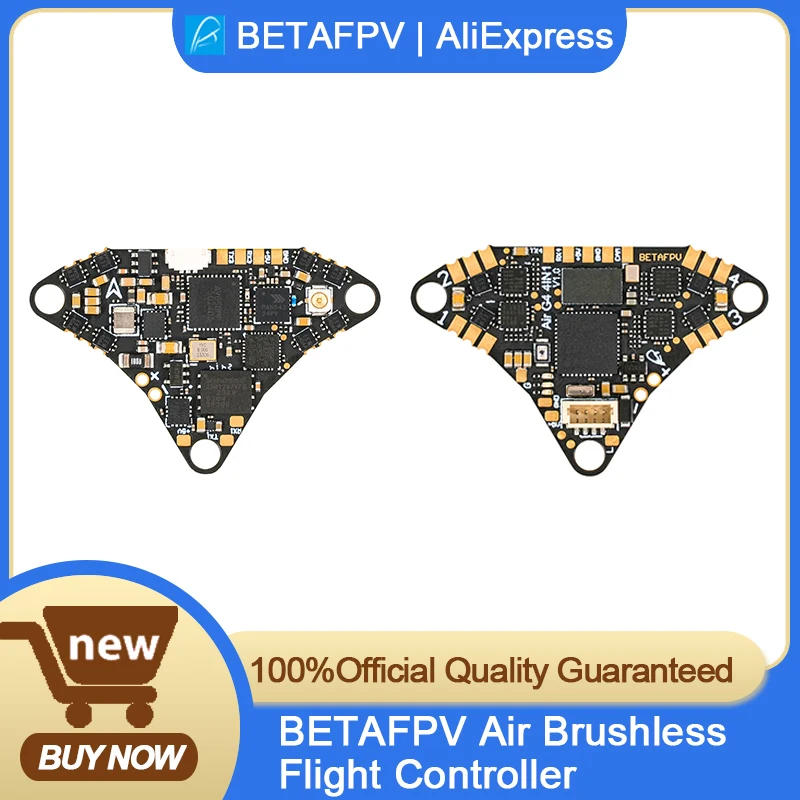

• Air Brushless Flight Controller, the first 1S FC that makes use of the STM32G473CEU6, skilled a unprecedented 55% increase in computing speed and lightning-fast reaction times, surpassing the F411 Equipped with the industry-leading ICM42688P gyro and onboard five 25mw~400mw VTX, it presents either 4IN1 with 2 and 5IN1 with 3 Versions, which takes your drone&;s posture and movement precisely to a better point Immerse your self easily within the drone world of Finger-Tip management Unmatched value and plain superiority with it, depart maximum of the contest within the dust It may be the progressed choice for destiny ultralight 1S whoop drones! Note: BETAFPV is immensely grateful to this checking out team including &;&;Don Johnson, Tokyo_Dom, BLACKHORSE, wKich, Travis, Ciotti FPV, Tdog, Anthony Knight, Issac, Albert, sub250g, Tyranttfpv, Wk Breeze&;&; for useful solutions within the design of this Air Brushless Flight Controller Attention VTX Power: Higher VTX power consumes more energy and generates extra heat, reducing flight time For better flight time in indoor scenarios, use 25~100mW power The calibrated strength measured after temperature stabilization (stabilization condition: more than 60 seconds after powering on the flight controller) is: when set to 25mW, the output power is between 14dBm±0 (21mW to 30mW), which meets the normal regular The following is the 5IN1 Air FC verify data with the VTX set to 25mW, the flexibility information is examined at assorted occasions at the R1, R3, R5, and R7 frequency points The 4IN1 Air FC V1 edition has already solved the VTX Output Power anomaly problem Motor Wiring: Only soldering is supported for motor wiring on the flight control Be careful to ensure the temperature of the soldering iron is maintained under 370℃ and restrict the soldering period to 1~2 seconds Bullet Point Air Brushless Flight Controller, the first 1S FC that utilizes the G473 processor, skilled a exceptional 55% expand in computing pace and lightning-fast reaction instances for exact racing and complex freestyle maneuvers, surpassing the F411 Higher integration but lightweighter design, featuring a custom miniature OSD chip Weighing solely 2 (4IN1 Version) or 3 (5IN1 Version), it gives extra UART port options for effortless operate expansions, adapting flawlessly to any flight situation Default integrated onboard 25-400mW VTX Streamlines installation saves space, reduces weight, and boosts convenience for VTX and FC modifications The 5IN1 Version even integrates the Serial ELRS 2 RX Elevate your drone&;s precision with the industry-leading ICM42688P gyro, included accelerometer, state of the art sensor calibration, and filtering algorithms, and a pattern rate of up to 8K, which takes the drone&;s posture and movement accurate and exact drone to a better point Unlock broad flight data recording and evaluation with a magnificent up to 16MB skill black field Maximize performance and diagnose faults effectively, leveraging the complete prospective of your drone Specification of FC Weight: 2(4IN1 Version) / 3(5IN1 Version) Mounting Hole Size: 26mm x 26mm CPU*: STM32G473CEU6 (168MHz) Six-Axis: ICM42688P (SPI connection) Blackbox Memory: 16MB Sensor: Voltage&Current 5V BEC*: 5V 3A USB Port: SH1 4-Pin Built-in ESC with 5A continual RX: Serial ELRS 2 (V3) (Only 5IN1 Version) 4IN1 Version: FC+ESC+OSD+VTX 5IN1 Version: FC+ESC+OSD+VTX+RX Specification of ESC Input Voltage: 1S FC Firmware Version: Betaflight_4 ESC Firmware: A_X_5_96KHz_V0 for BB51 Bluejay hardware Signal Support: D-shot300, D-shot600 Specification of VTX Output Power: 25/100/200/400/PIT Frequency: 5 48 channels, with Raceband: 5658~5917MHz Channel SEL: SmartAudio2 Modulation Type: FM Frequency Control: PLL All Harmonic: Max -50dBm Frequency Stability: ±100KHz (Typ) Frequency Precision: ±200KHz (Typ) Channel Carrier Error: ±1 Antenna Port: 50 Ω Operating Temperature: -10℃~+80℃ DiagramBelow is the diagram for the Air Brushless Flight Controller (4IN1 Version) is the diagram for the Air Brushless Flight Controller (5IN1 Version) Between G473 and F411 Say so long to barriers and embody the cutting-edge know-how of the G473 flight controller for an extraordinary flight experience Air Brushless Flight Controller elements as much as 168MHz superior CPU Clock Speed and four richer serial ports, enabling lightning-fast reaction times and stepped forward computing power, making it preferrred for aggravating flight, which takes your flying ride to the next level and demonstrates excellent performance, surpassing all 1S FC recommendations available on the market immediately 4IN1&5IN1 Choose this greater integration Air Brushless Flight Controller, for an ultra-light 1S whoop installation, tailored to fulfill the needs of discerning pilots It is default incorporated onboard 25-400mW VTX, the 5IN1 Version that integrates FC+ESC+OSD+VTX+RX is going a step further by integrating the Serial ELRS 2 RX, streamlining set up to save area and reduce weight, and enhancing convenience for VTX and FC adjustments The 4IN1 Version gets rid of the RX port for added versatility, providing pilots with more external RX suggestions Serial ELRS 2 RX Serial ELRS 2 RX makes use of the Crossfire serial protocol (CRSF protocol) to communicate between the receiver and the flight controller board So the Serial ELRS 2 RX is accessible to assist upgrading to ELRS V3 without needing to flash Betaflight flight controller firmware Enter binding status by way of strength on/off thrice Plugin and unplug the flight controller 3 times; Make sure the RX LED is doing a short double blink, which indicates the receiver is in bind mode; Make yes the RF TX module or radio transmitter enters binding status, which sends out a binding pulse; If the receiver has a solid light, it&;s sure The Serial ELRS 2 RX would be updated through Wi-Fi or Betaflight serial passthrough Here is update the Serial ELRS 2 RX firmware through passthrough Plug on your FC to your computer, yet do NOT hook up with betaflight configurator; Choose goal "BETAFPV 2 AIO RX"; Flash utilizing the BetaflightPassthrough option in ExpressLRS Configurator How to flash firmware via Wi-Fi here Betaflight Firmware and CLI Betaflight legit developers recommend utilizing edition 42688 of the gyroscope, and many issues with ICM42688 have been constant in version four Please be taught extra from edition 4 FC firmware: Betaflight_4, Download the firmware and CLI unload dossier Reference link: Bluejay ESC Firmware With BB51 ESC solution, Air Brushless Flight Controller is based on A_X_5_96KHz_V0 for BB51 Bluejay hardware, it helps D-shot300, D-shot600, and even RPM filtering in Betaflight, gives 24KHz, 48KHz, and 96KHz fixed PWM frequency for options, and tradition start-up melodies DO NOT flash the firmware with a shorter interval, otherwise, there will be a undeniable probability of stalling and burning the flight controller ESC-Configurator: Download BLHeliSuite16714903 Download the Bluejay ESC firmware Please prefer A_X_5_96KHz_V0 Connecting External RX/VTX Please note that UART2 has related to the VTX by way of default This FC reserves 3 total full-featured serial ports that may be used for exterior CRSF/SBUS receivers, GPS, HD VTX, or other serial devices You can refer to the below photographs Attention VTX Power: Higher VTX power consumes extra calories and generates more heat, lowering flight time For larger flight time in indoor scenarios, use 25~100mW power Motor Wiring: Only soldering is supported for motor wiring at the flight control Avoid terminal plugging VTX Antenna: Connect and set up the picture transmission antenna earlier than powering on the flight management Alternatively, set transmission power to zero to bypass burnout Recommend Parts Drones: Air65, Air75 Frames: Air65, Air75, Meteor65, Meteor65 Pro, Meteor75 Pro Motors: 0702/0702SE, 0802/0802SE, 1102 Receiver: ELRS Lite Receiver, ELRS Nano Receiver Package 1 * Air Brushless Flight Controller 1 * 2 Antenna (Only 5IN1 Version) 1 * Type-C to SH1 Adapter 1 * SH1 4Pin Adapter Cable 1 * five VTX Antenna 1 * BT2 U Whoop Cable Pigtail | 40mm 4 * M1*4 Self-tapping Screws 4 * Shock Absorbing Ball Note: The beneath packaging pic is the 4IN1 Version Note: The under packaging pic is the 5IN1 Version

•
•
•
•
•
