Description

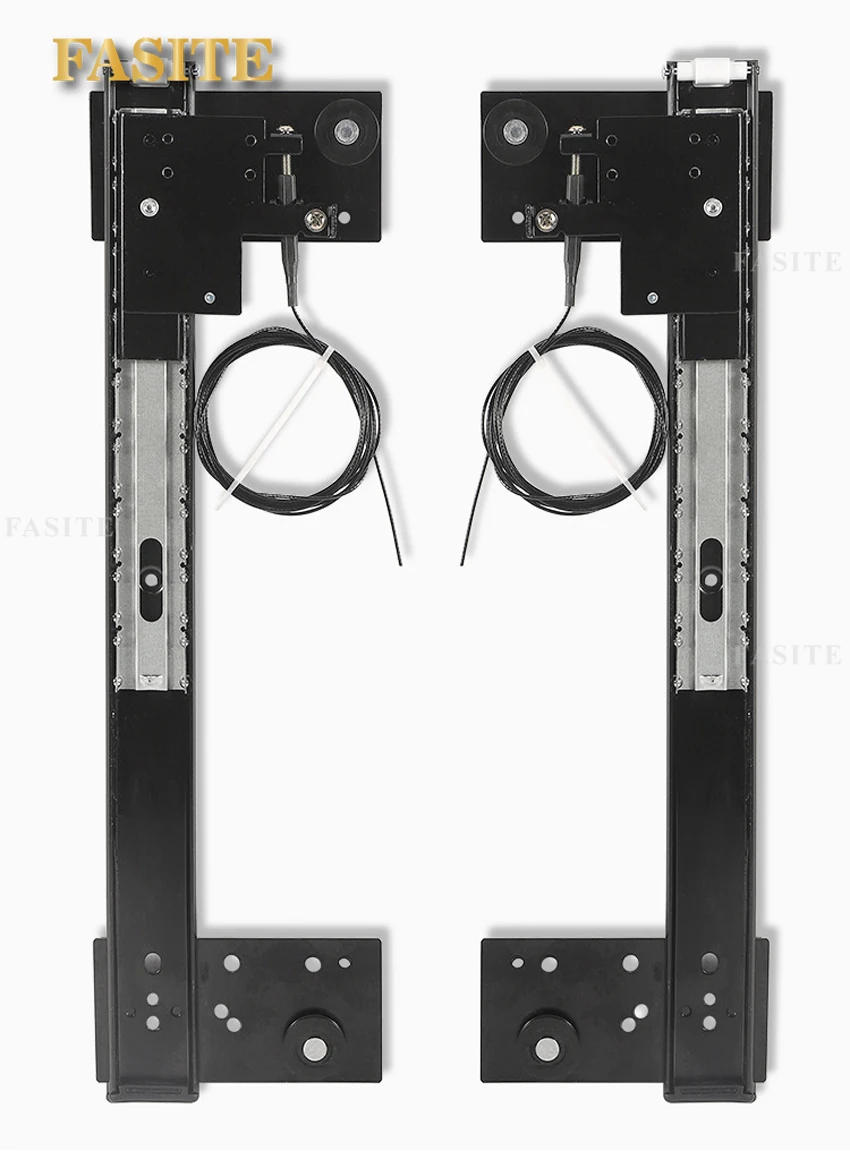

• Requirements for doors and cabinets: 1. The peak of the door is 8mm shorter than the web internal height of the cabinet (Leave 3mm at the Top and Leave 5mm on the Bottom. Please Operate Strictly According to the Drawings During Installation) 2. Drill hinge holes consistent with the requirements of the drawings 3. The cupboard needs to make an embedded impact (need to make an Embedded door) If you want to set up a clapboard within the middle, please pay attention to reserve satisfactory space. (as proven > 65mm) Installation instruction manual (1) Installation sliding rail 1. When putting in the sliding rail, the distance from the sting of the sliding rail to the sting of the cabinet is the thickness of the cupboard door panel. For example, the door panel is 25mm, and the distance is 25mm. 2. Install the sliding rail at the higher part of the cabinet and the bottom, and the hole distance refers to the first page (2） Install metallic rope 1. Install the sliding rail according to(） 2. Pull the metal rope of the guide rail, then pull the metallic rope to the curler at the diagonal, bypass the roller, and attach the metal rope beneath the screw. 3. Adjust the tightness of the metallic rope and tighten the screw. 4. Repeat the above steps in the different slide rail. (3） Install hinge and door 1. Use (m4*5mm) to repair the door panel and side panel throughout installation. 2. Put the hinge within the holes and fix the screws. 3. The hinge is constant on the sliding rail board and the door panel. 4. Close the door verify gap. If you need to adjust, please consult with (). (4） Adjust the door panel In the case of guaranteeing the load of the door doesn't exceed 18kg, if the door will sag slightly, you could adjust the screw of the steel rope. The best state of the metal rope is to preserve a slight tension. (5) Adjust the hinge 1. Adjust left and correct : -0.5mm/5.5mm 2. Adjust entrance and back : 2.8mm 3. Adjust up and down: -1.5mm/ 1. 5mm (6） Install the site wheel 1. As proven in the figure, fix the site wheel at the backside plate and height plate of the cabinet   To Dear Customers 1. We sticks to the guideline of "quality first, visitor foremost". lf you wish anyproducts, you could possibly send me product pictures or links. l will give you the lowestquotation as quickly as possible, and then present a hyperlink for you to order. 2. All products offered within the store are genuine, please rest assured to buy! lf you haveany questions about the product, please contact us on AliExpress and we will replyyou inside 12 hours! Please examine your messages often, we can have some issuesneed your confirmation earlier than shipping. 3. Regarding orders and transportation: Please test your messages often, we mayhave some problems desire your affirmation earlier than shipping; Make the choice if theproduct has parameters, or word in the order, And Standard batteries, liquid andother prohibited components are frequently eliminated earlier than shipping if your merchandise are thesewe may shipped through Special Line that will charged extra dollars; lf ship by expressmake sure you're NOT in remote area, or more costs needed, and please note that itis for distant pleace shipping : Charged via logistics company. 4. Customer delight is our greatest pursuit, lf you're satisfied with our productsand services, please go away us tremendous feedback and you'll also get 5 aspects offeedback, Negative feedback can't be modified! Please contact us for higher methodsfor solving the disputes! Notes:The transportation cost doesn't encompass import responsibilities and other expensesand the Buyer shall bear all extra (if any) fees Russian customers, pleaseleave your tax number once you choose Cainiao Heavy Parcel Line Brazilian customers, ifyou want any express, please leave your tax number in order that we will be sure that ourdelivery is normal. E-mail: bft001011@126.com WhatsAPP/Wechat:+86 166 7019 6943

•
•
•
•
•
