Description

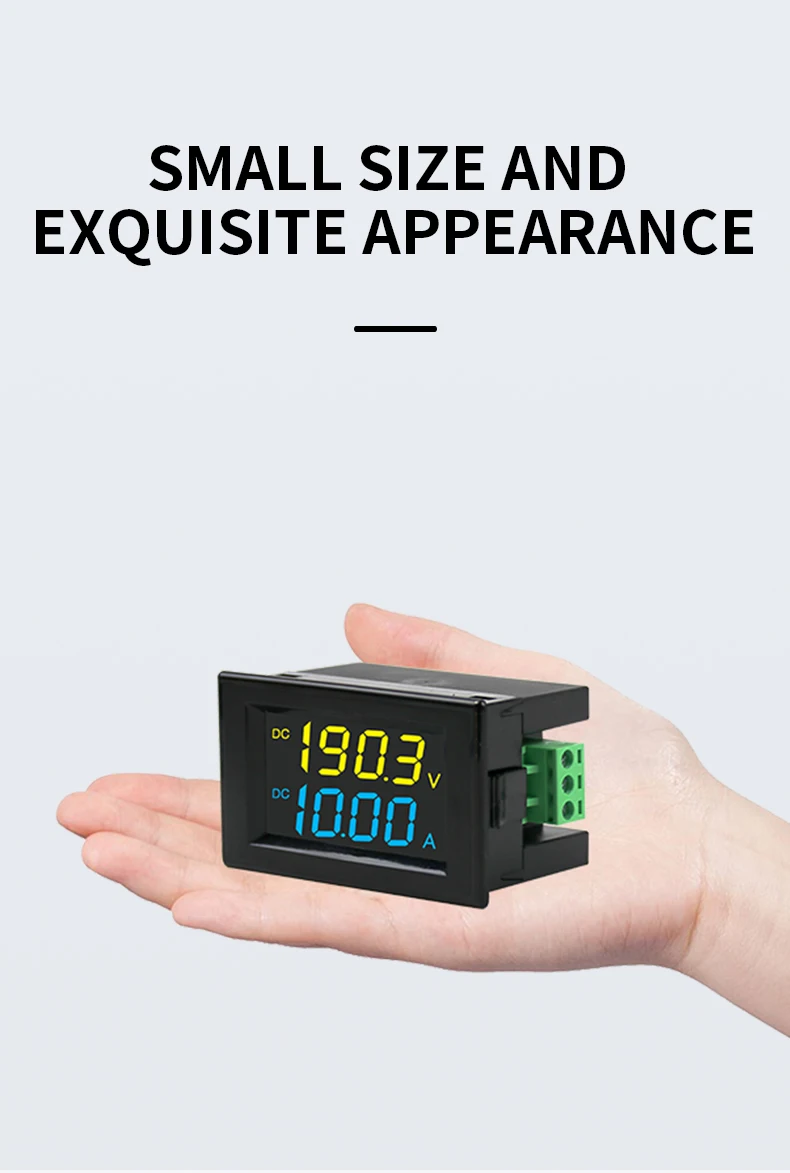

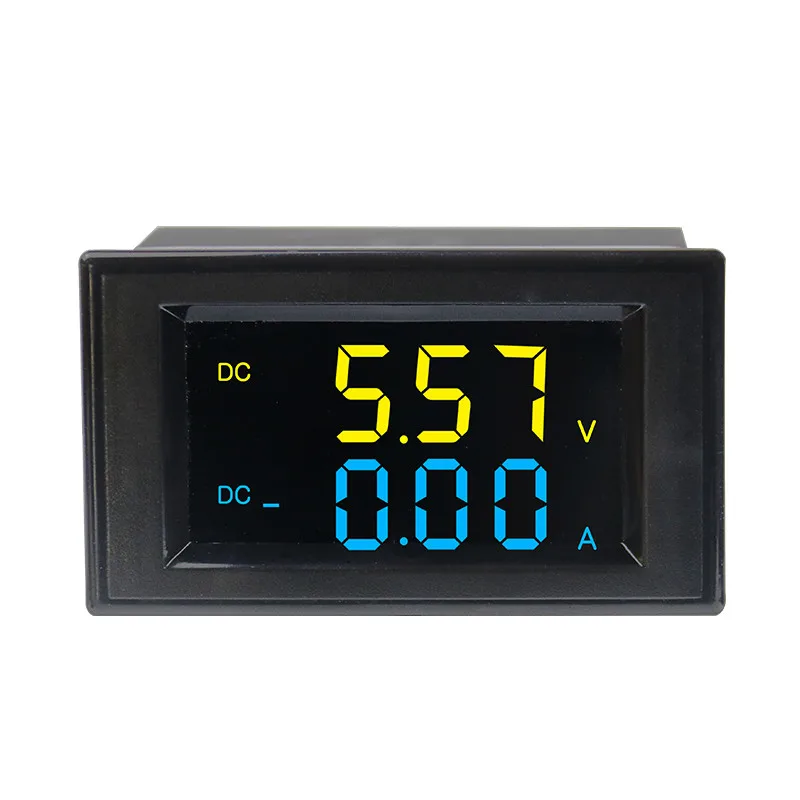

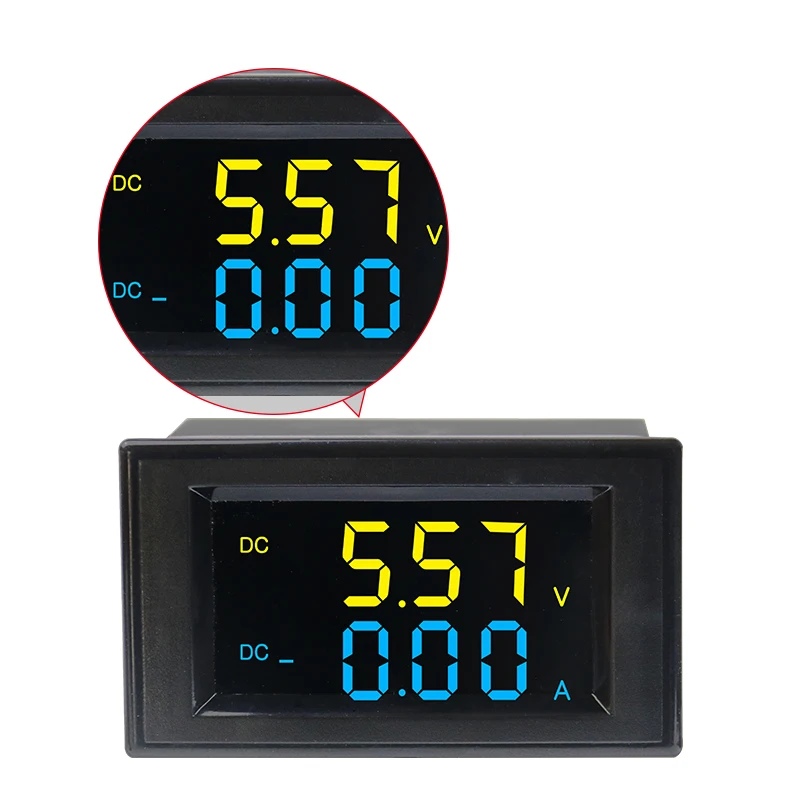

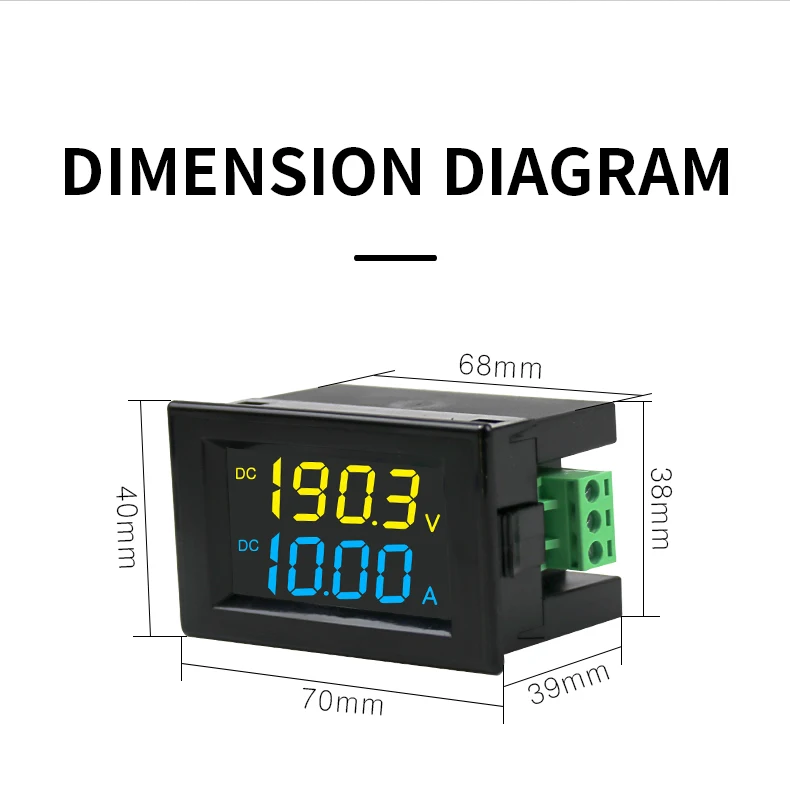

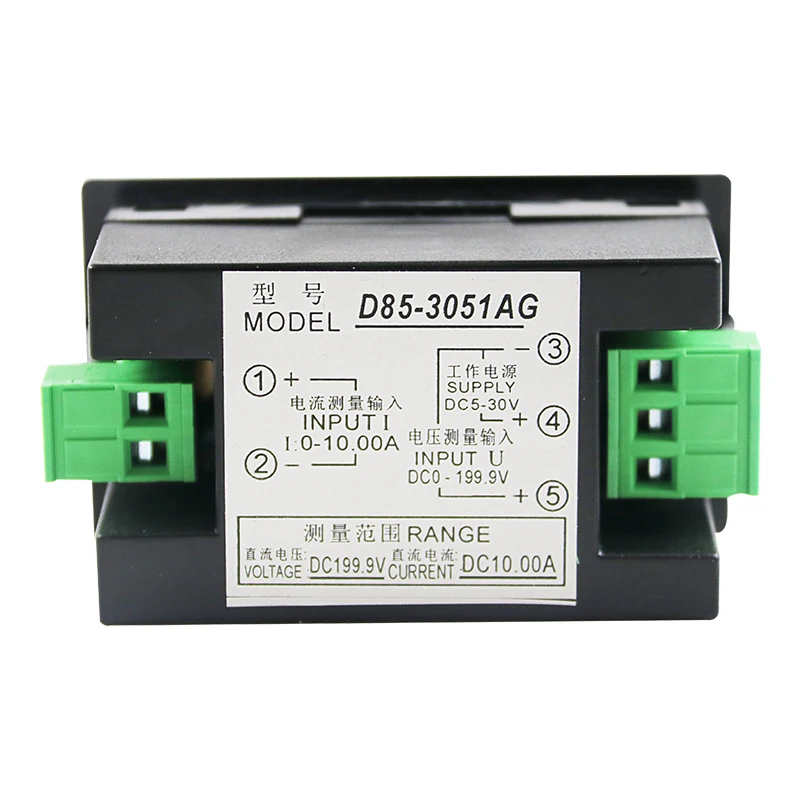

• >>Specification Measurement Accuracy: 1% plus or minus 2 wordsDisplay: LCD high-definition liquid crystal coloration two-color displayViewable Screen Size: 43*25mm178° broad viewing perspective (no blind spots for viewing)Measuring Range: DC Voltage: (1) DC0-19, 0-199, 0-600V (need to provide an additional working power between 5-30V) (2) Measure the voltage between DC5-30V (measurement voltage would be As the working energy delivery of the meter, the meter does not need to expand the operating energy supply, but the dimension voltage can only be measured from 5V, and it cannot be measured below 5V it's best to beginning the test from 0V or the dimension voltage is greater than 30V, you must add a group of 5-30V working strength supply, please eavesdrop on this point when using it!Direct Current: DC0-1, 0-10, 20A/75mV, 50A/75mV 100A/75mV, 200A/75mV Consumption: ﹤0 Speed: about 2 occasions according to secondDimensions: 70*40*39mmInstallation Size: 68*38mmExtreme Working Conditions:Working Temperature: -10～+50℃Working Humidity: 10～80%Working Pressure: 80～106kPa >>Package Included 1 × DC recent and voltage dual reveal meter >>Notes Customers order instruments in the recent size vary of 10A (including 10A) The meter has a integrated shunt, and the client would not want an external shunt when utilizing it If the meter purchased via the client has a measuring fluctuate above 10A, there's no shunt inside the meter, and the customer needs to buy one other shunt with an identical specifications because the measuring vary of the meter For example: if the present dimension range of the bought meter is 0-50A, then another shunt with a specification of 50/75mV needs to be purchased, and regardless of the measured latest is bigger than or lower than 10A, it should be connected to the purchased shunt for use! When wiring, the user must strictly stick with the wiring series resembling the wiring diagram (attached with the wiring diagram) The shunt should be connected to the detrimental pole of the ability supply, and the weight to be measured needs to be related to the tremendous end of the ability supply The wiring software proven in the wiring diagram could be burned (scrapped)! Once burned, we don't contend with after-sales!

•
•
•
•
•
