Description

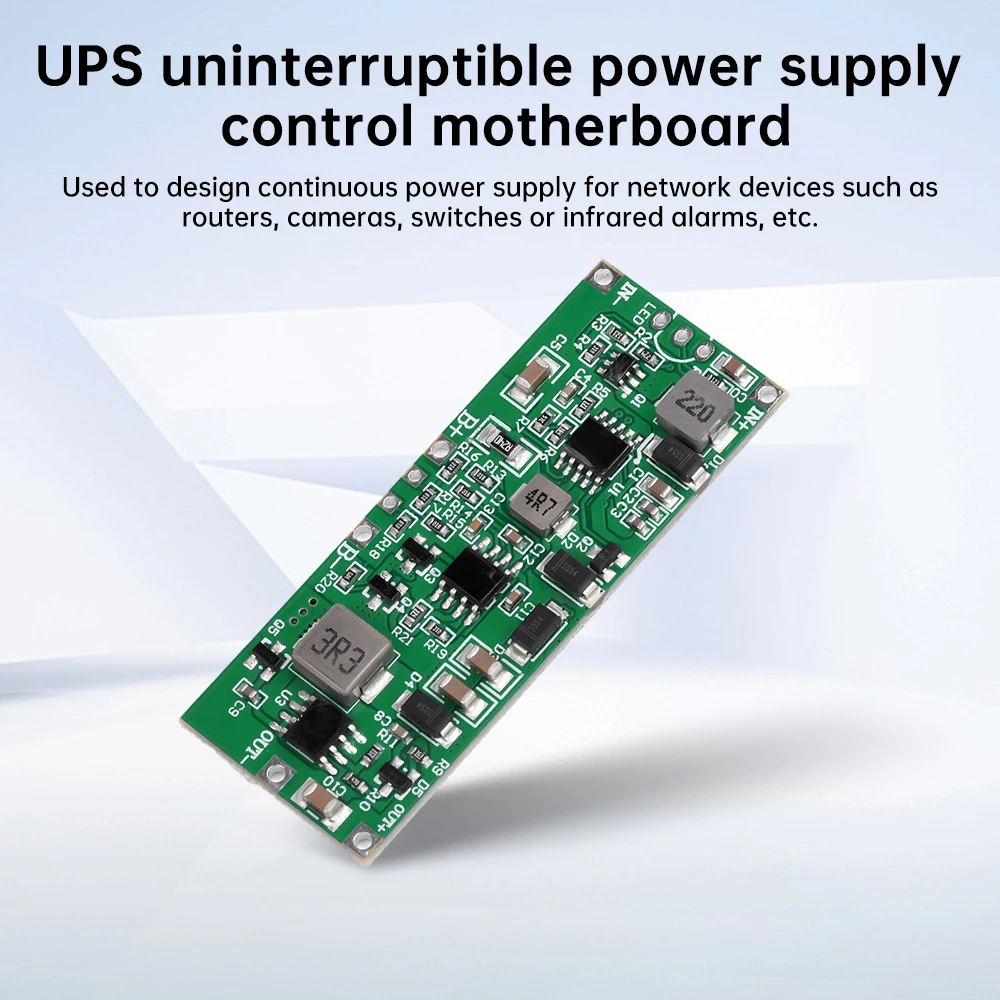

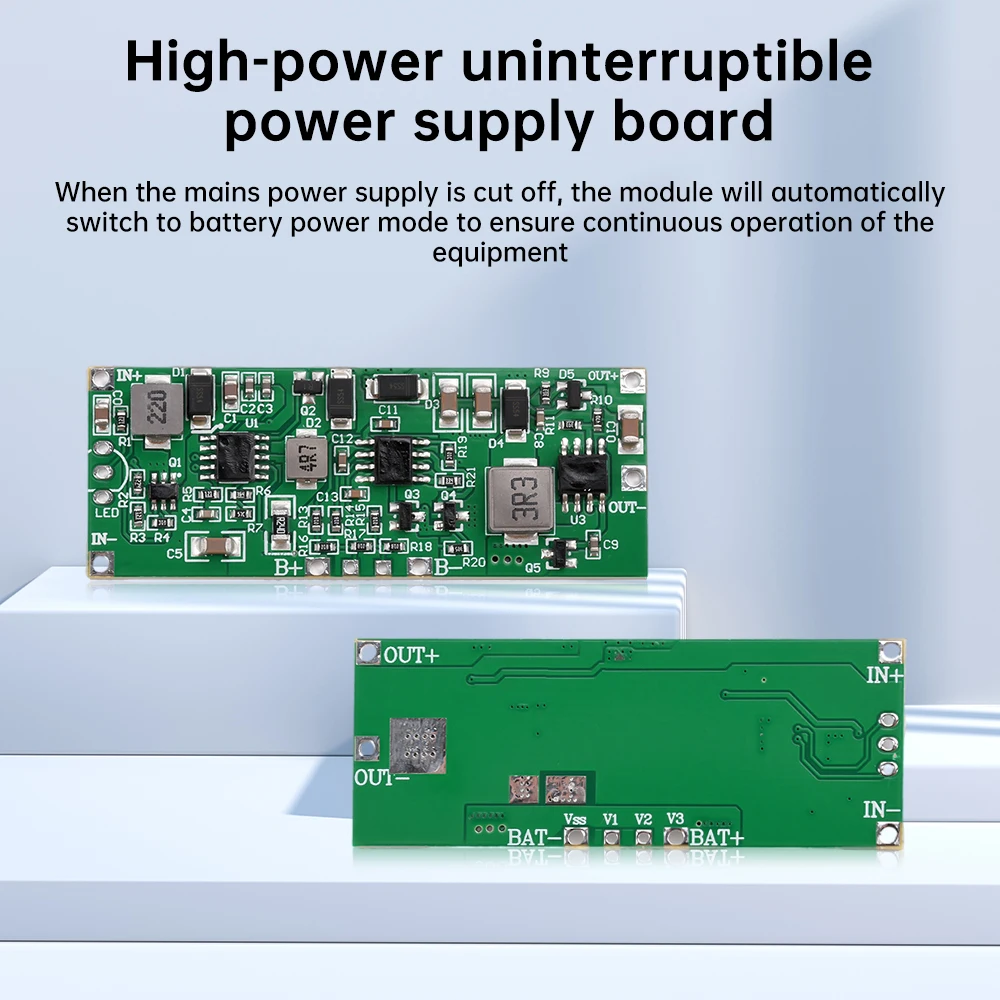

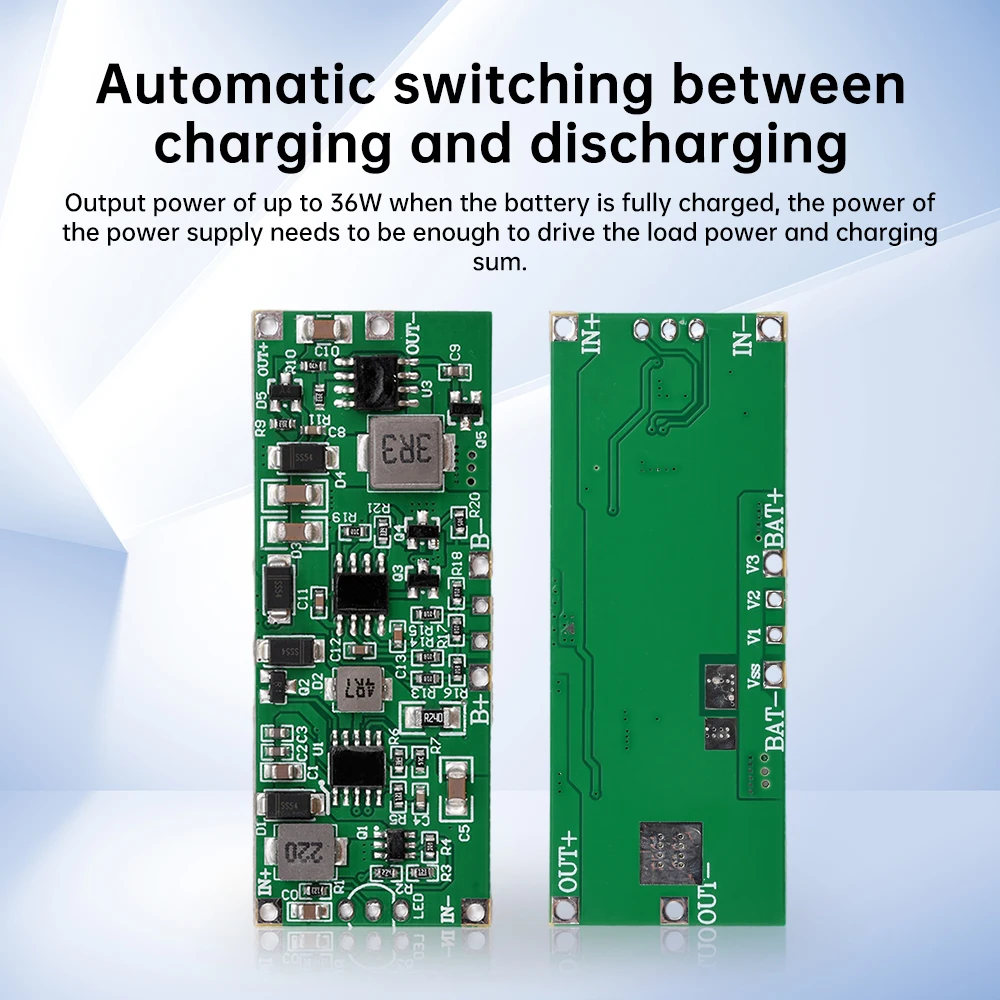

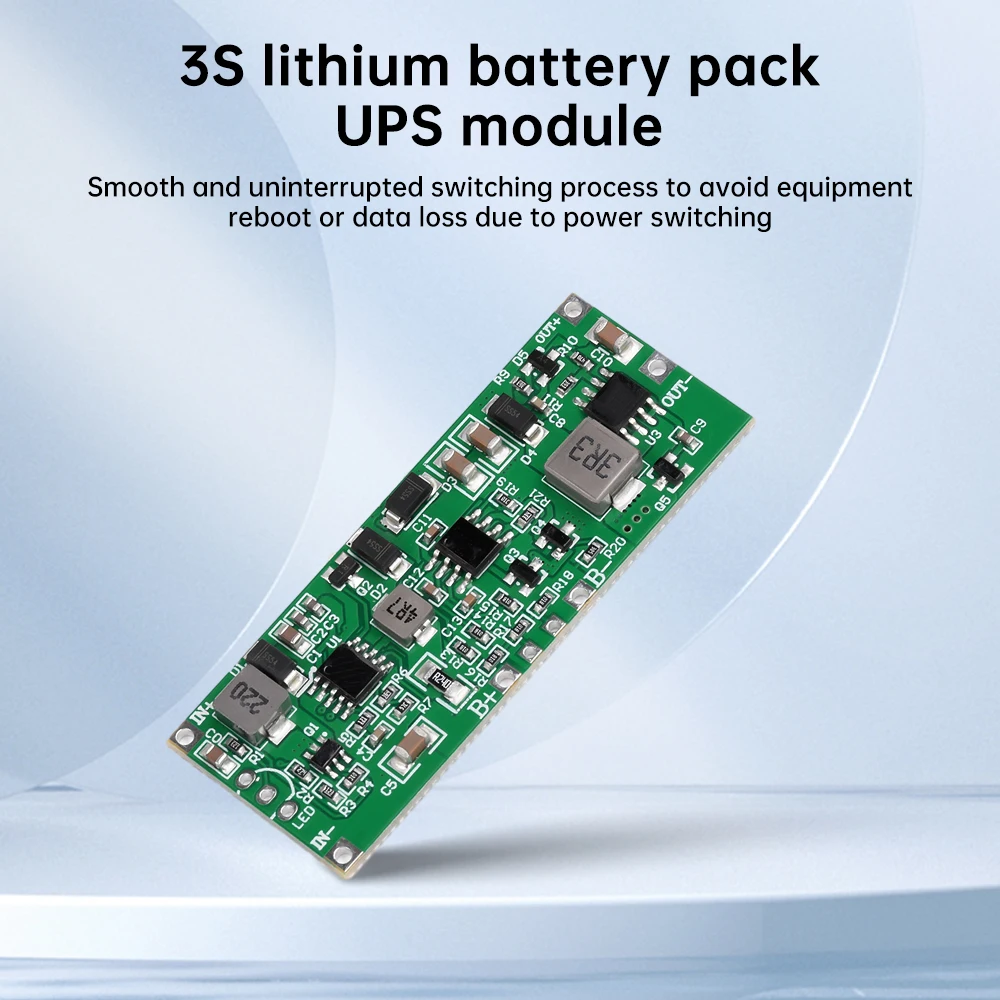

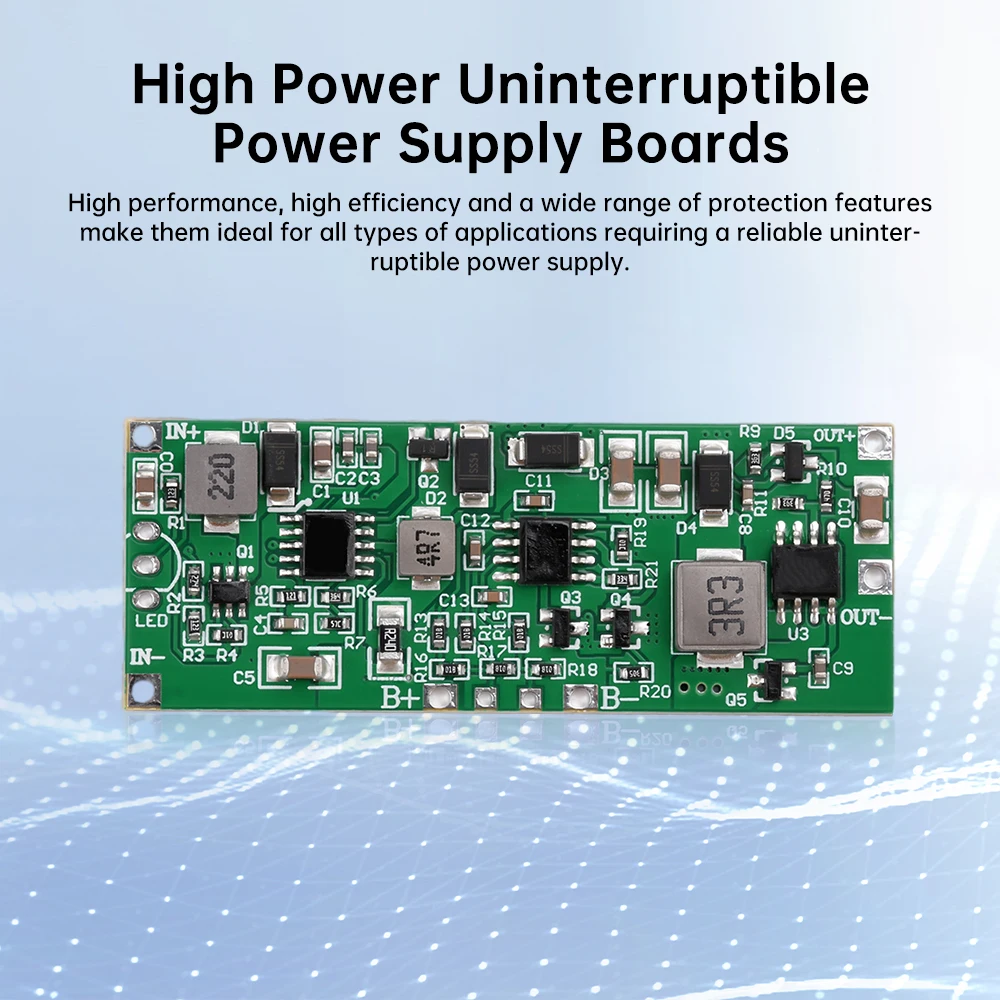

• Description:1 When the main power delivery is reduce off, the module will routinely change to battery energy mode to guarantee continuous operation of the device2 The switching task is tender and uninterrupted, heading off system restarts or records loss attributable to strength switching3 DC UPS uninterruptible power delivery control motherboard, used for designing continuous energy delivery for community package similar to routers, cameras, switches, or infrared alarms When the battery is fully charged, the output energy can reach 36W, and the power of the flexibility delivery must be enough to power the sum of load energy and charging4 The product has a delicate and compact appearance, with beautiful arrangement of components5 This high-power uninterruptible power delivery board, with its excessive performance, high efficiency, and multi-faceted protection characteristics, has grow to be a perfect desire for various applications that require dependable uninterruptible strength supplyProduct parameters:Input voltage: DC12VOutput voltage: DC12V (between 11V and 13V)Output power: 36W (MAX)Battery charging current: zero (MAX)The specific input latest depends upon the weight carried, and the operating latest of the load plus the charging recent (0) is the present of the input energy supplyEquipped with battery pack charging, discharging and discharging defense functionAutomatic switching of strength delivery from batteryMatters desiring attention:Please connect the battery as the last step, here is very important!!! 3S lithium ion battery or polymer battery or 18650 battery packDefault battery pack: It could be linked to 2 wires (positive and negative) or four wires, and the resistors R16, R17, and R18 need to be removedPlease join the battery as the final step, and use no less than 20AWG twine for soldering enter and output The twine size shouldn't exceed 10CM, and the connecting cord needs to be as thick and brief as probable control board generates heat during operation, so it would be installed at a certain distance from the battery!Indicator light: Customers should configure a 3mm regular anode pink green light-emitting diode themselves; Charging light on, purple mild on, totally charged green mild onPackage included:1 x DC 12V 3A 24W 36W 3S Lithium Battery Pack UPS Module Charging Discharging Automatic Switching Uninterruptible Power Supply Board

•
•
•
•
•
