Description

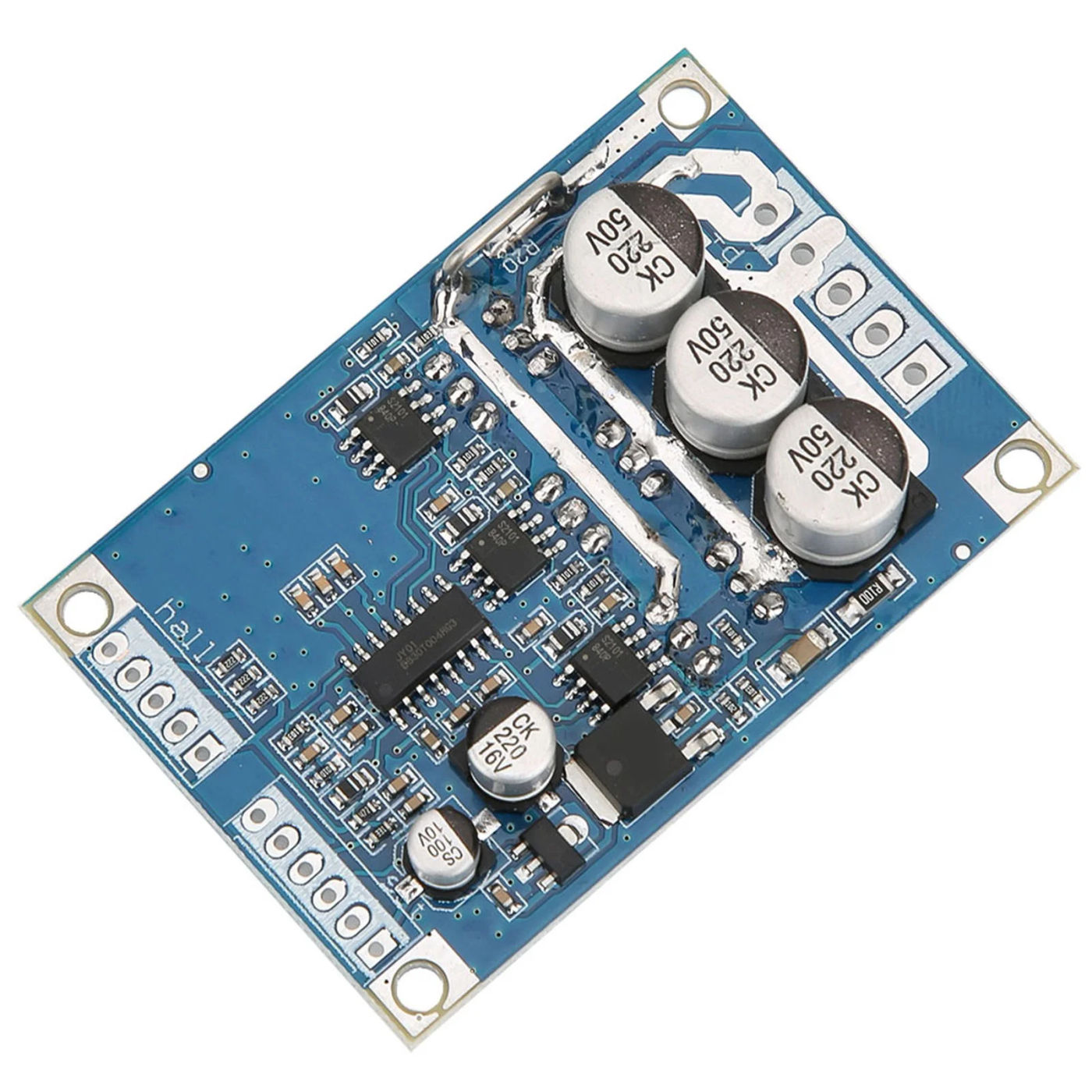

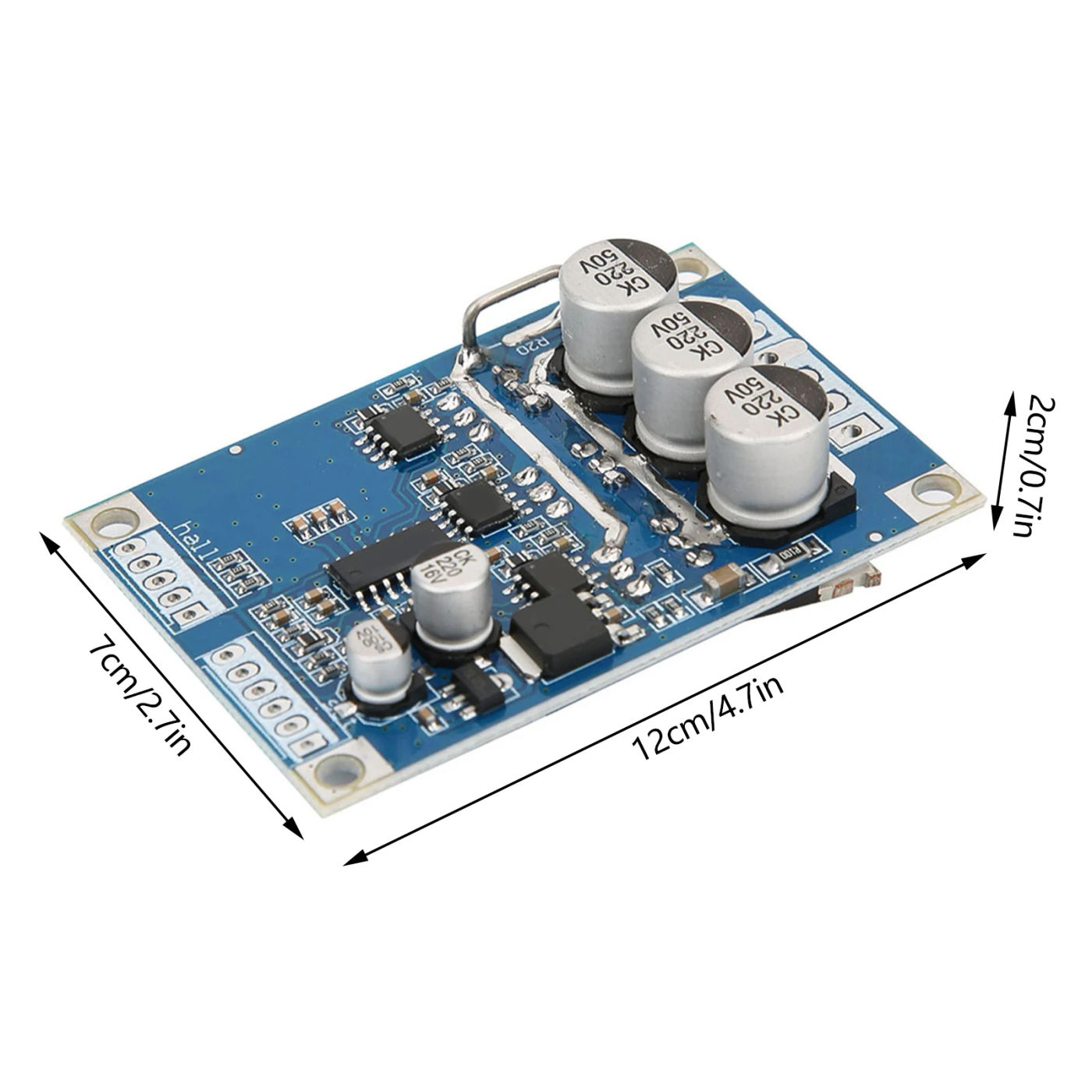

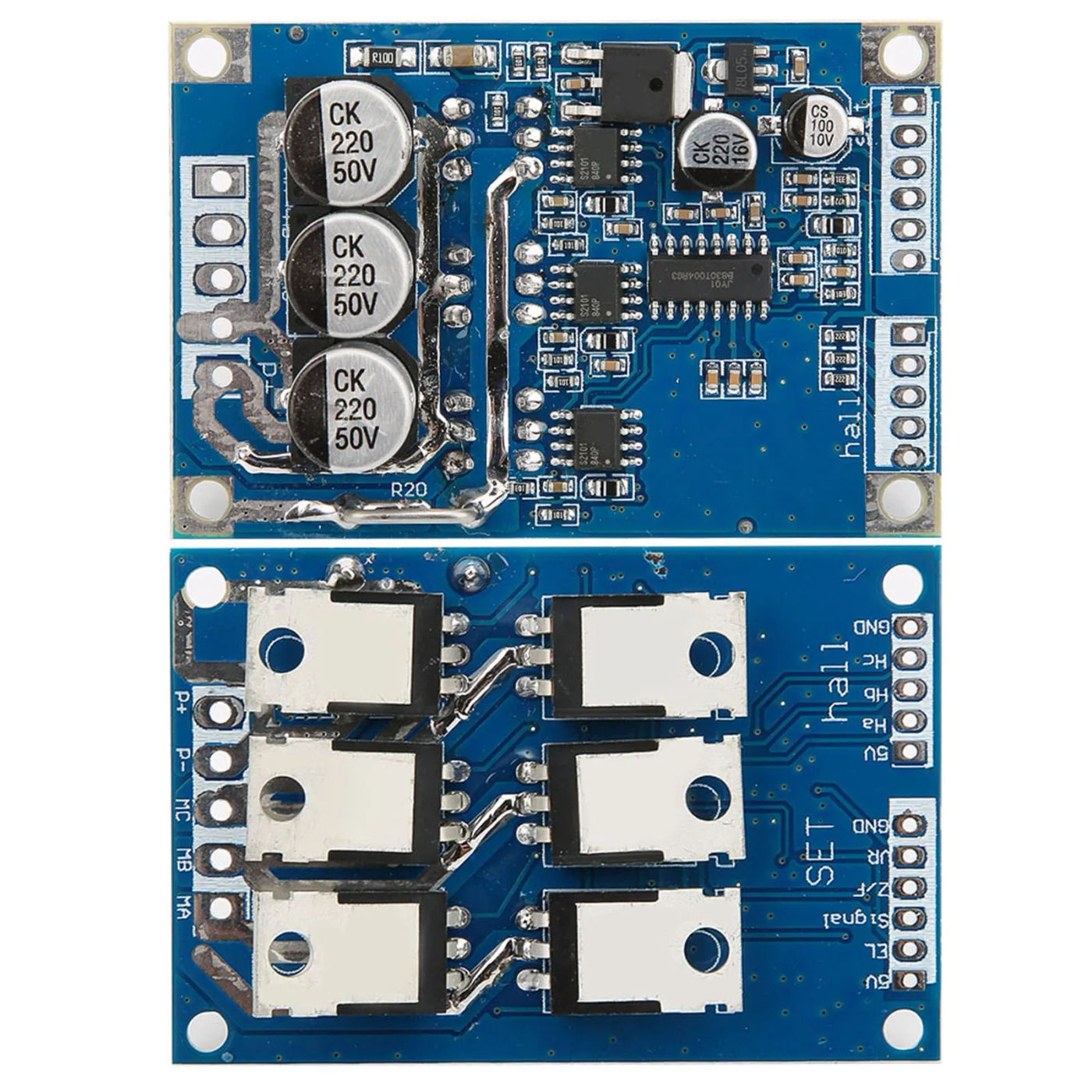

• DC 12V‑36V 15A 500W Brushless Motor Controller Hall BLDC Driver Board Feature: 1 Operating voltage: DC 12V-36V 2 Operating Current: <=15A three Driver Power: <=500W 4 Speed Voltage: 0 5 Operating Temperature:-40-85°C Specification: Description: 100 percent Brand New & High Quality Operating Current: Driver Power: Operating Temperature:-40-85°C Humidity: 90%RH Stall protection:Yes Enable Control: Yes Over-current protection: Yes Steering control: Yes Speed management signal: Yes Size: 63*42*17mm(L*W*H); Probe size 3mm,length: solving hole center distance 57mm; width:fixed gap middle distance 36 Power terminal Out: VCC(positive power supply) GND(negative one) MC(motor levels W) MB(motor phases V) MA(motor part U) Set for the control side: GND control terminal floor VR the governor finish 0-5V(corresponding to 10% of motor pace -100%) ZF reversing control(connected to 5V or floor can charge the motor rotation direction) M tachometer pulse output(depending on the variety of motor poles corresponding to the number of pulse in step with revolution of the output number) EL allow management terminal(connected to 5V ot floor operating then 5V, grounding the motor stops) 5V 5V management terminal HALL for the hall terminals: 5V Hall energy fantastic Ha Hall signal Hb Hall signal Hc Hall Signal GND Hall detrimental Wiring: Control terminal for SET: 2 Motor steerage management wiring methods: you could possibly switch management is also linked to the MCU control, to GND in a single direction, then in a single course 5V 3 Pulse speed signal: excessive and coffee output IC can't understand the data with the customer request Hall sign inputs for hall: Wiring diagram is shown, one such as the HA, HB,HC and on the motor, 5V power delivery linked to the motor hal signals positive, GND power delivery damaging sign to the motor hall Note: Due to different motor brands to make the corridor of hall line order does not necessarily follow the line at the board to match the sequence, have to be adjusted, please mother and father who pay attention! If the line collection wrong, does not boot properly, current, or delivery different phenomena no longer open, pressured to apply the power plate will burn!!! Motor motive force board 12-36V DC energy input, VCC nice strength supply,GND power delivery is unfavorable Please notice that the recent variety and old form of this product will be despatched randomly, and make sure you will not intellect before ordering Electrical wiring methods: Brushless DC motor for the 3 lines, corresponding MA/U,MB/V,MC/W Tips: If you utilize less than 60W, with out further heat sink , be sure to add more than 60W heatsink fins drive efficiency without lowering the temperature is simply too high will shine into permanent damage! The size of the heat sink could be a dangerous surroundings founded work(recommended cooling floor field more than two hundred square centimeters)!When installing the heat sink ,must eavesdrop on the back of the module 6 MOS pipe insulation, no insulation, it will be adhered to drive plate permanently damaged! Proposes so as to add insulation films, either side of the insulating sheet plus thermal grease! Package Includes: 1 x 12-36V 500W Brushless Motor Controler

•
•
•
•
•
