Description

  • Specification: 1 diameter: 15mm 2 shaft diameter: 3mm(flat shaft 2) 3 equipment ratio: 10:1 ;20:1; 50:1; 100:1; 150:1; 298:1 four angle: motor is eighteen diploma five motor speed:2400rpm 6: 2-phase 4-wire(A+:Black line;A-: Yellow line;B+:Red line;B-:White line) 7 resistance: 40 ohms eight voltage:5V 9 range:5V-12V 10 length: 120mm 11: 16g Package: Motor x 1

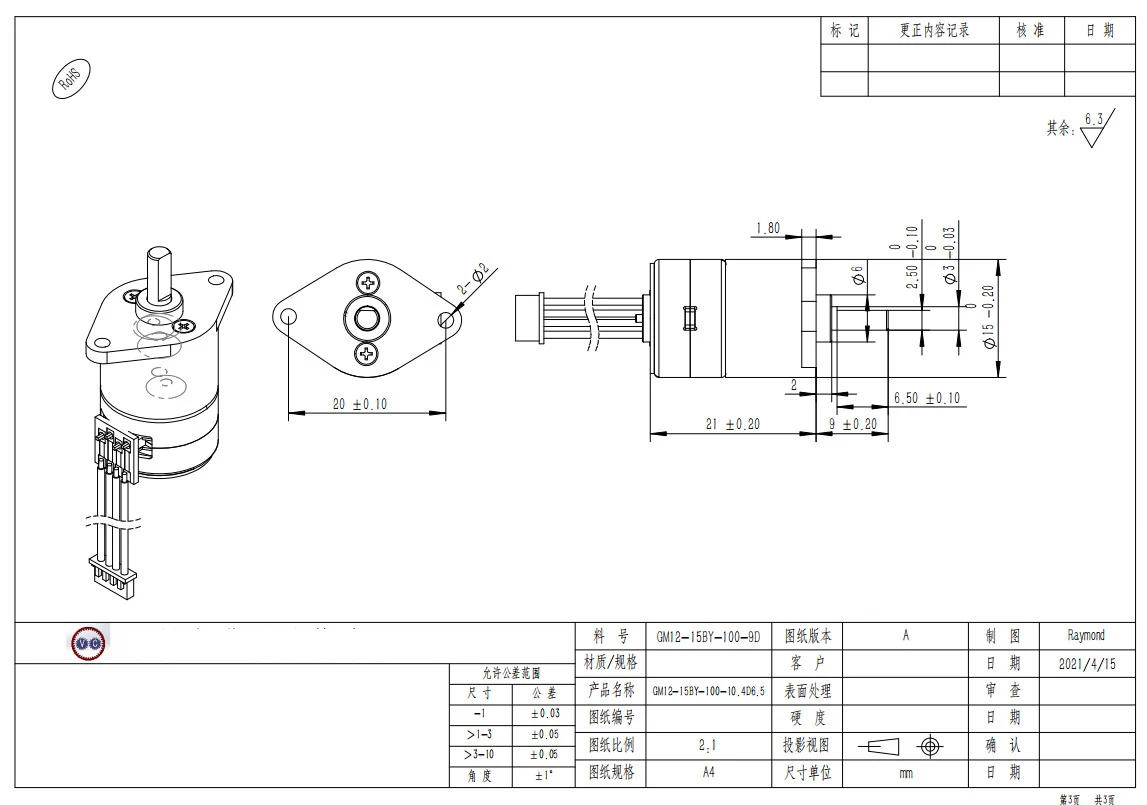

  • Description Picture 2 of itemDC 5V 40 Ohm GM15BY Mini 15mm Full Metal Gearbox Gear Stepper Stepping Motor 2-phases 4-wires D-shaft

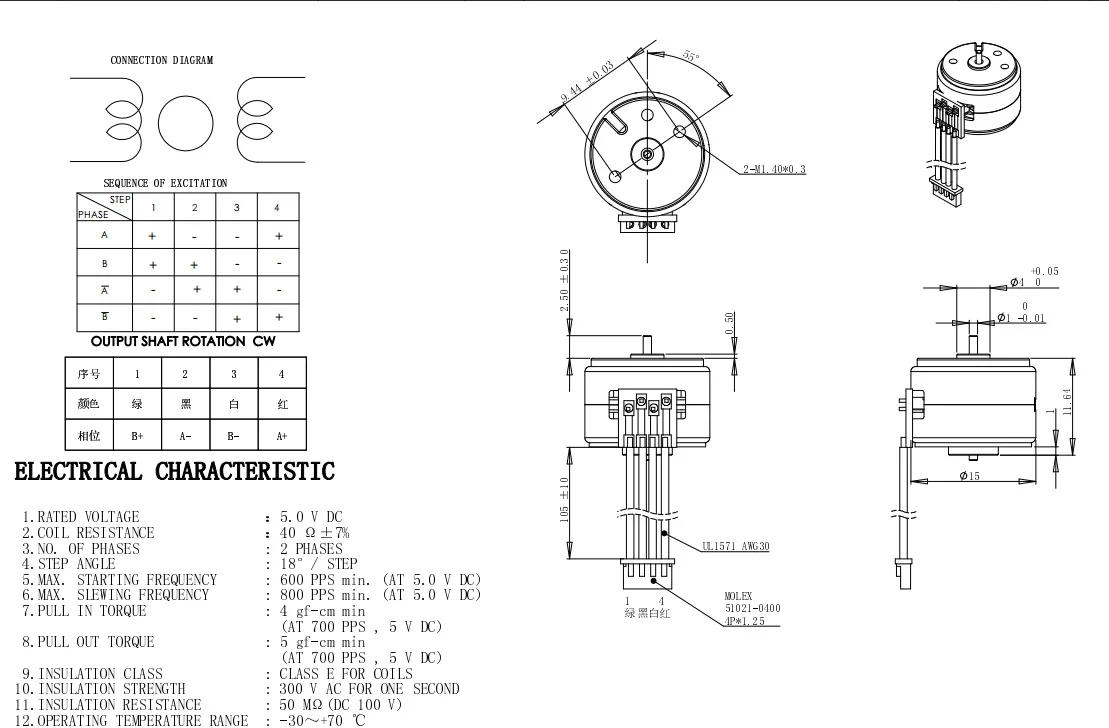

  • Description Picture 3 of itemDC 5V 40 Ohm GM15BY Mini 15mm Full Metal Gearbox Gear Stepper Stepping Motor 2-phases 4-wires D-shaft

Review

0 people rated this product
No reviews
Provided by:Delsey

DC 5V 40 Ohm GM15BY Mini 15mm Full Metal Gearbox Gear Stepper Stepping Motor 2-phases 4-wires D-shaft
