Description

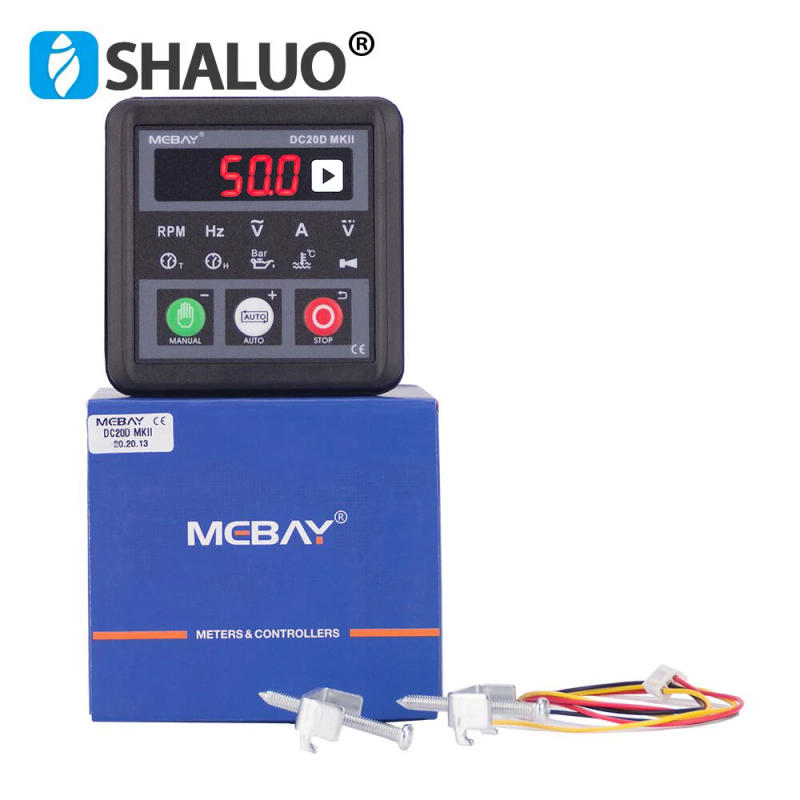

• DC20D MKII Generator Control Module Generator Controller DC20D MKII is one module used for Diesel/gasoline Engine or Generator, It&;s an upgraded made from DC20D is with the purposes of Auto Star/Stop, Protection and Alarm indication DC Power and Running situation is indicated on the entrance panel The popularity of the engine and generator can be checked with ease because those parameters of over speed, beneath speed, Over Frequency, Low Frequency, Over Voltage, Under Voltage, Low Oil Pressure, High Temperature, Low Water Level, Low Oil Level, Charge Failure, Over-time Stop, Emergency Stop Alarm System as well as Low Battery Voltage could be indicated in time output connector is connected with traditional relay which might burden more output recent The parameters is also set by means of the front face buttons in order that it can be utilized in other forms of circumstances Features: Micro-computer Control Man/Auto Start/Stop five Units LED tube Display LED and Fault Alarm Code Indication Two Group of programmed Relay output Application for various forms of Engine by means of self-setting With RS485 conversation port Control： Manual Start/Stop Auto Start/Stop Preheat Control Auto idle control Choke control E control Parameters Display： Engine RPM Generator Frequency Hz Generator Phase voltage L-N Generator current A Engine battery voltage Running time Accumulation time Engine water temperature Engine oil pressure Protection： Emergency Stop Over frequency stop Under frequency stop Over voltage stop Under voltage give up Over latest give up Low Oil Pressure Stop High water temperature give up Oil pressure sensor Open Water temperature sensor Open Start Failure Stop Failure Low Water level stop Low Water point give up High Oil temperature quit RPM signal lost alarm Over speed stop Under speed give up Low Fuel Level warning Low Battery voltage caution Specification： DC Supply: DC 8～36 V Power Consumption: MAX 3W Measuring Frequency:10～70 Hz AC input: AC 50～380 V Current size range:0-2000A Speed sensor Frequency:30-9999Hz Relay output: Fuel Output: MAX 5A Start Output: MAX 5A Configurable output1:MAX 2 Configurable output2:MAX 2 Excitation output: MAX 1A Size:78mm * 78mm * 55mm Panel cut-out:67mm * 67mm Protection Level:IP54 when water-resistant rubber gasket is added between controller and its panel Operation Temperature :-30℃～70℃ Storage Condition:-40℃～85℃ Weight:250g Panel: Chinese/English Optional

•
•
•
•
•
