Description

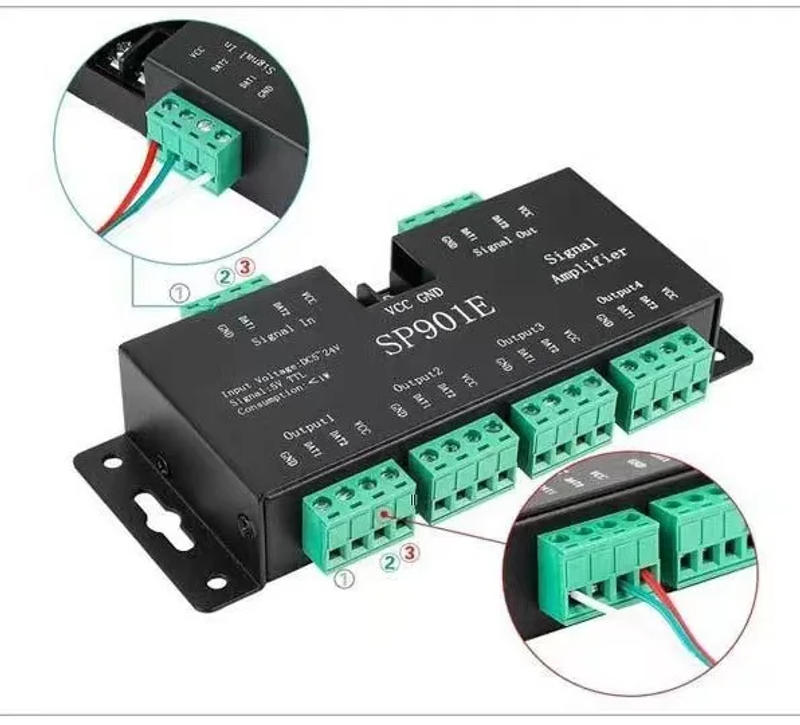

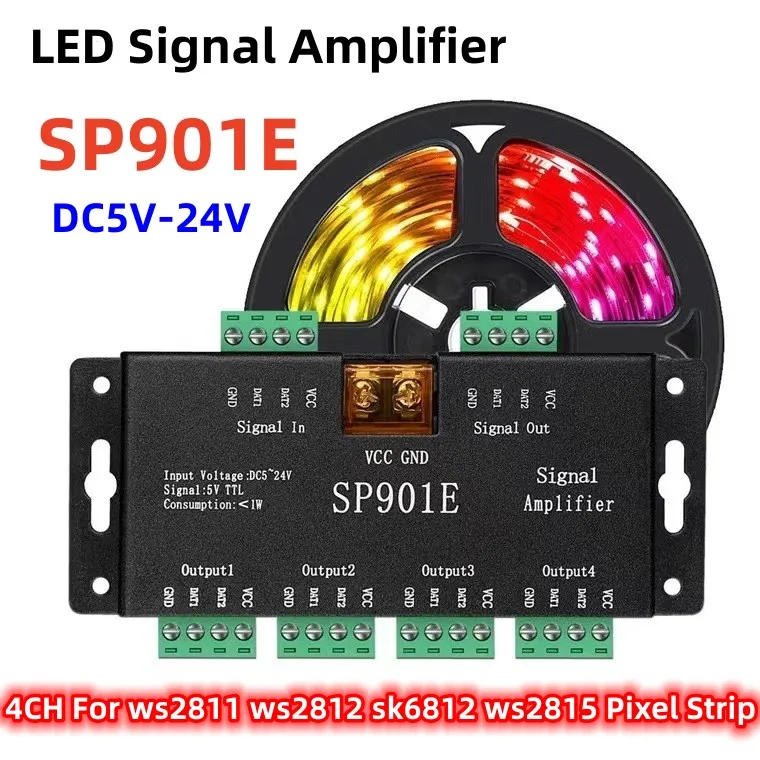

• DC5V-24V SPI Signal Amplifier SP901E 4CH Group Amplifier for WS2812B WS2811 WS2815 6812 Addressable LED Pixel Strip Module Light 1. Input voltage: DC5-24V 2: 8 channels / 4 channels three IC type: WS2812B,WS2811,SK6812, SK6812-RGBW,SM16703,WS2813, WS2815, CS8812, AL2815, WS2801, APA102, SK9822,UCS1903, LPD6803, LPD8806, APA102 Description Lincoiah SP901E SPI Signal Amplifier for WS2812B WS2811 WS2813 Pixel RGB LED Strip Signal Repeater Addressable Dream Color Tape DC 5V-12V Lincoiah SPI sign amplifier is like minded with every kind of 5V-TTL signal. It receives one sign and concurrently output four or eight channels of signals. Each channel can control the same quantity of LED pixels as leading controller. It can outputs 8 channels for addressable LED strips with unmarried news wire, resembling WS2812B, WS2811, SK6812, SK6812-RGBW,SM16703, etc It can outputs four channels for addressable LED strips with news clock wires or twin information wires, akin to WS2813, WS2815, CS8812, AL2815, WS2801, APA102, SK9822,etc DC5V~24V wide range of working voltage, nevertheless it cannot alter the output voltage. That means the output voltage of strength transport needs to be the same as the paintings voltage of your led lights. Multiple signal amplifiers could be cascaded collectively synchronously. Particularly right for small and medium dream shade lighting fixtures projects. Product elements 1. 5-24V DC huge voltage power supply; 2. Multiple sub management cascade design; 3. Suitable for all 5V-TTL sign dual signals; 4. It could be designed and used with several separate control cascades; 5. The output voltage is in retaining with the enter voltage; 6. The unmarried line LED driving force chip can assist eight outputs with constant signals, For dual signals, there are 4 channels; 7. Used along with full-color controllers and slideshow strips; Precautions (1) The controller can't alter the output voltage at the VCC. That potential the output voltage of your strength supply needs to be the same as the work voltage of your led lights. If your lighting prefer 5V input, please use a 5V energy supply, never use 12V or 24V energy supply. (2) The current through the amplifier is limited ,when the intake recent is huge, visitor should broaden power delivery additionally.

•
•
•
•
•
