Description

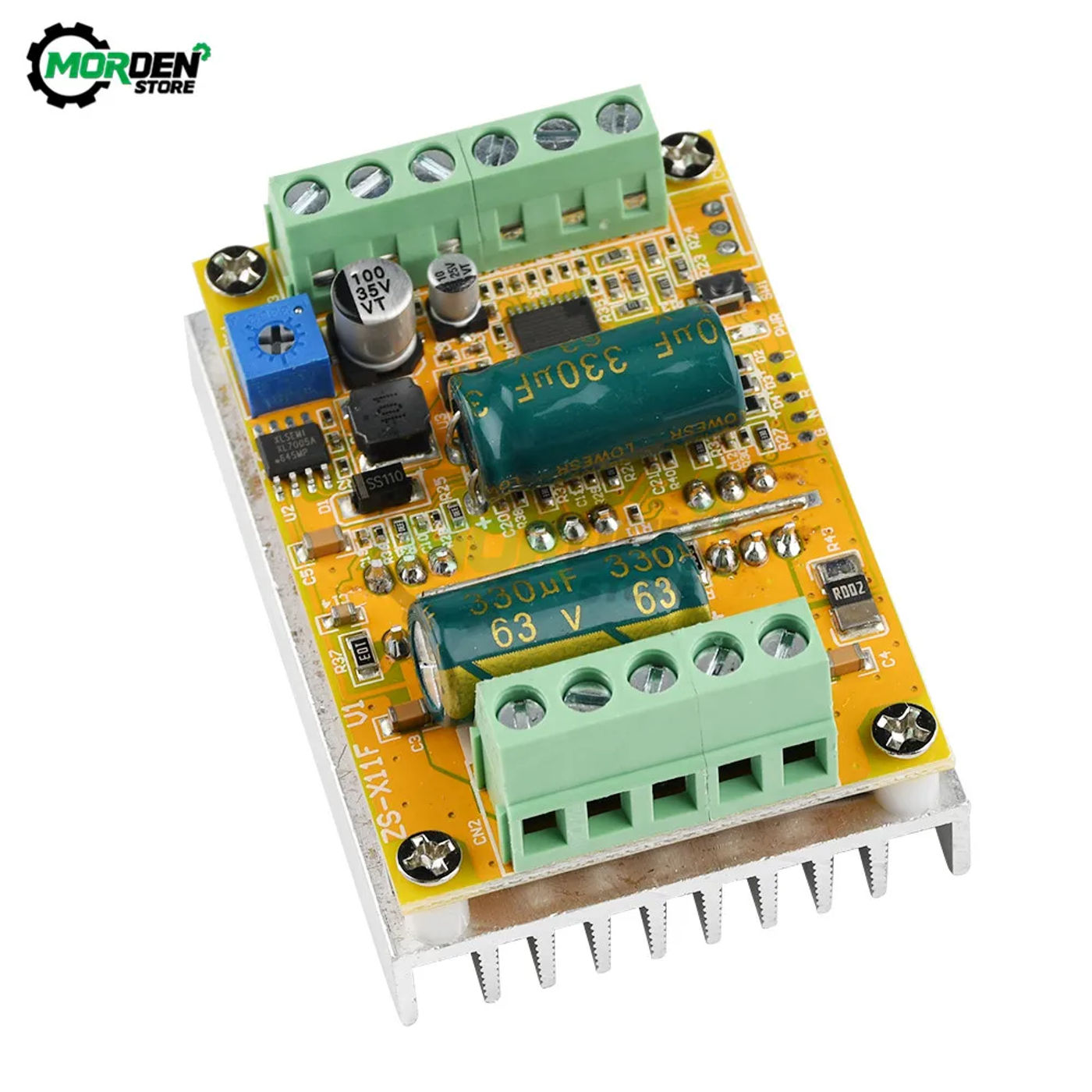

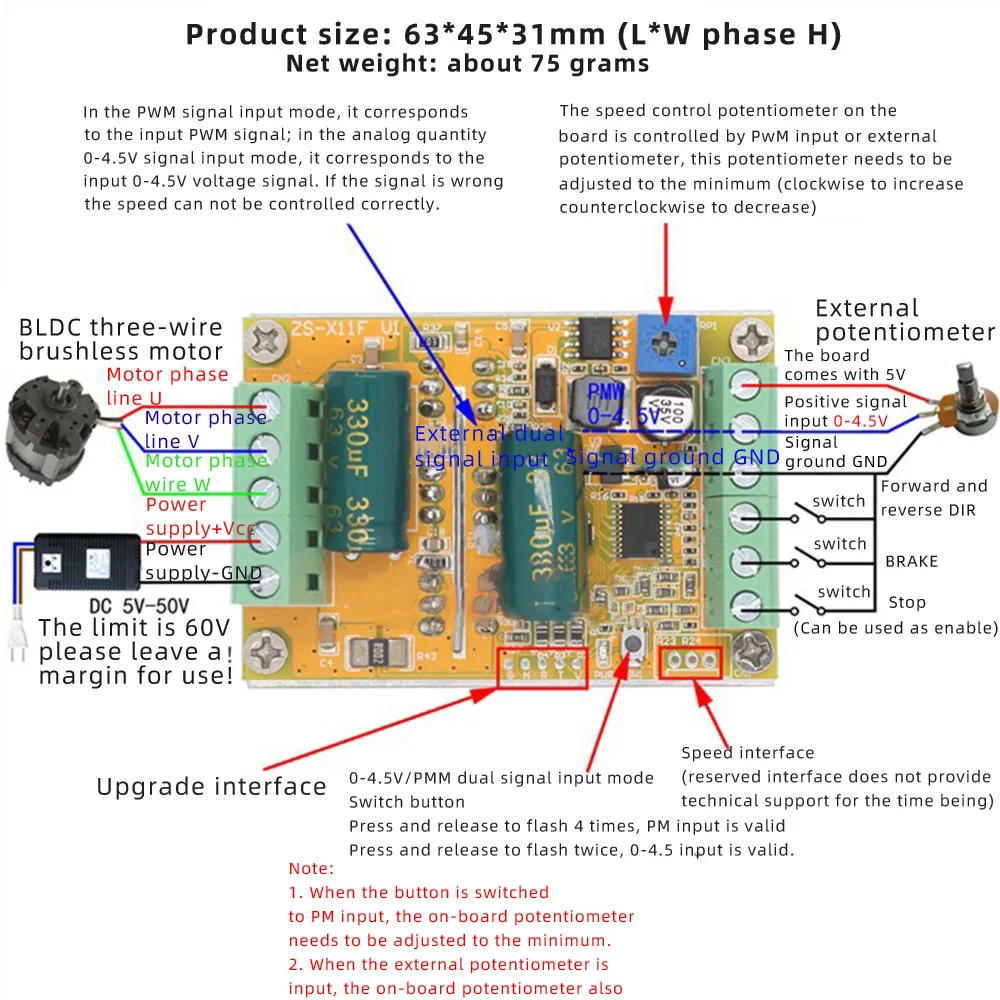

• DC6 380W BLDC Three Phase DC Brushless Motor Controller PWM Without Hall Sensor Hall Motor Control Driver Board Dropship Spain and Russian Warehouse Product This power is a DC three-phase brushless and Hallless management board, and the motor can paintings usually with out Hall BLDC vast voltage 6 excessive strength 380W DC three-phase high-speed brushless sensorless controller, new PWM signal enter assist three method PLC 0-5V analog signal enter management Special instructions for external sign input: 1 The connection of the V/P quick touch suggests that the PWM sign enter efficiently acknowledges the genuine PMW signal to assist the 3 system, and the PMW sign ought to be input from the 2 ports (PWM GND) of the terminal 2 When the V/P short contact is disconnected, the 0-5V analog sign enter is valid (the default is disconnected on the factory) When the analog quantity is input, the built-in potentiometer at the board can be used to regulate the rate If you prefer to connect an external zero For -5V analog signal input, it is best to unplug the jumper cap at the board to chop off the potentiometer divider signal, after which enter the 0-5V analog signal from the two ports (0-5 GND) of the terminal The maximum voltage should not exceed 5V three The forward and opposite rotation and the brake are grounded via a switch, which is low-level superb The exterior MCU also can give low-level alerts The front row of wiring terminals are weak latest alerts immediately input to the MCU grasp control, and cannot be touched or touched High voltage and robust current Interface Description: 1 V W 3-phase line output connected to brushless motor 2 5V GND The motherboard comes with 5V (current does not exceed 200MA) 3 VCC GND leading energy delivery (external DC energy supply) four SC velocity pulse sign output (only the interface is reserved, no longer for technical support) 5 DIR forward and reverse control preserve the low point wonderful (can be related to the ground exterior switch) 6 BRAKE brake control retains low point lively (can be linked to the ground with an external switch) 6 PWM speed management sign twin input terminal (on-board potentiometer pace control can also be switched by jumper to attach an external 0-5V analog quantity PWM duty cycle signal input speed control) To Full-chip technology, steady performance, and user-friendly design, all interfaces use terminal blocks, ordinary warmth sink, on-board velocity potentiometer, and can be used when the hand is powered on, saving time and fear Motherboard specifications: Product name: zs-x11f-2 Working voltage: 6 Drive current: rated 16A plus air-cooled heat dissipation 30A Maximum power: 380W Overcurrent protection: Yes Locked-rotor protection: Yes (after locked-rotor, the current will robotically drop and run at intervals) To Over-temperature protection: Yes (over-temperature strength is halved) To Maximum speed: 224000 RPM (2 pole motor), 74000 RPM (6 pole motor), 40000 RPM (12 pole motor), 35000 RPM (14 pole motor) Product size: length 63MM*width 45MM*height 31MM Weight: about 76g Precautions: 1 Reverse connection of the high-quality and destructive poles of the flexibility delivery on the motherboard will cause everlasting damage to a couple of the chips at the board (even if it does not work for 1 second) 2 There is sampling over-current protection on the output of the motor during typical operation Because the flexibility and recent of the module are very large, please do not artificially short-circuit the module when the module isn't operating normally Once the short-circuit, the circuit may be burnt and the tube may possibly burst, the 1st wiring test machine Please use small current and low voltage test, after ok, then practice high latest and high voltage Because it's a naked board module, please eavesdrop on the insulation of the wiring head It is strictly forbidden that stable voltage touches the board elements To three Do now not connect with the motor that is obviously inconsistent with the force module voltage, current, or strength

•
•
•
•
•
