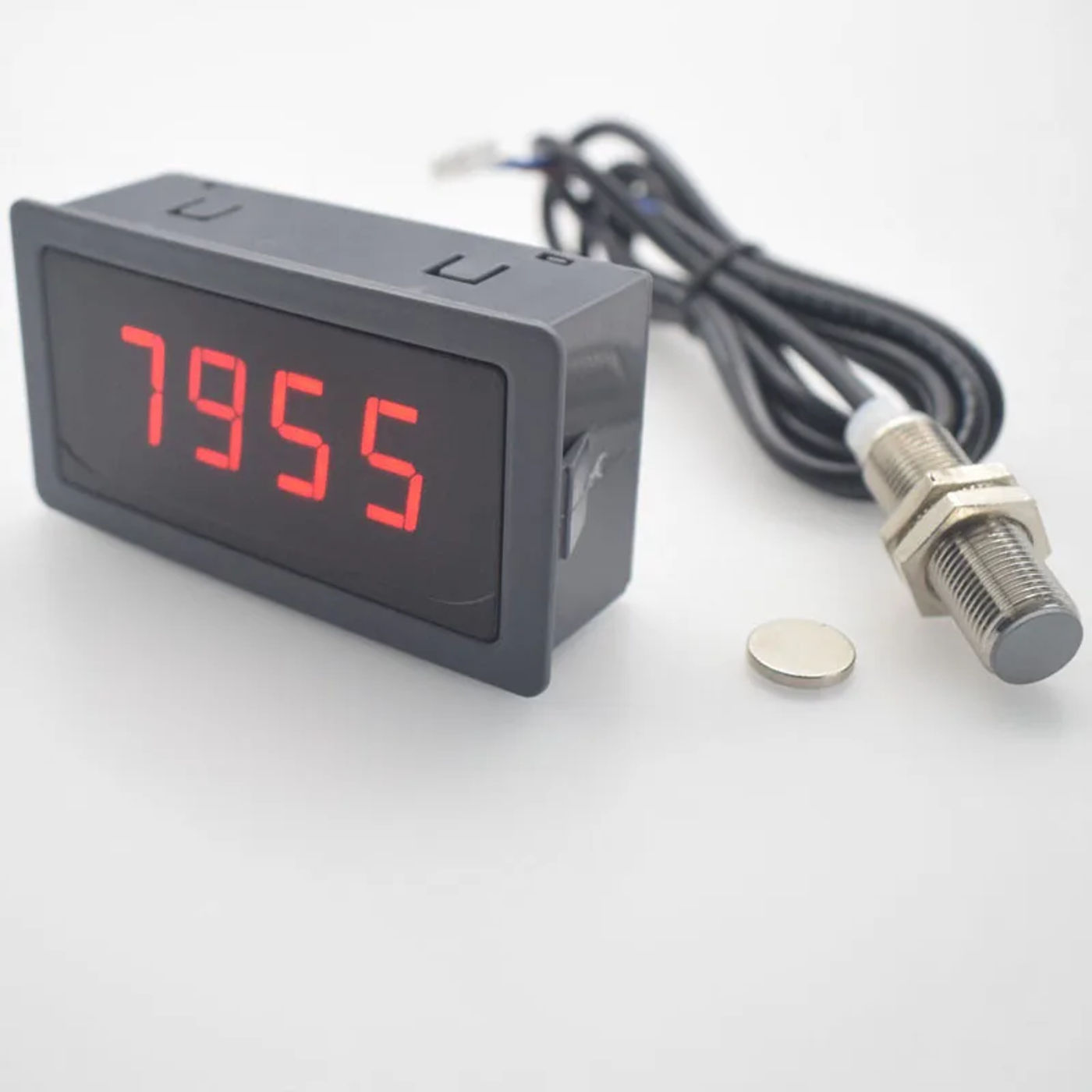

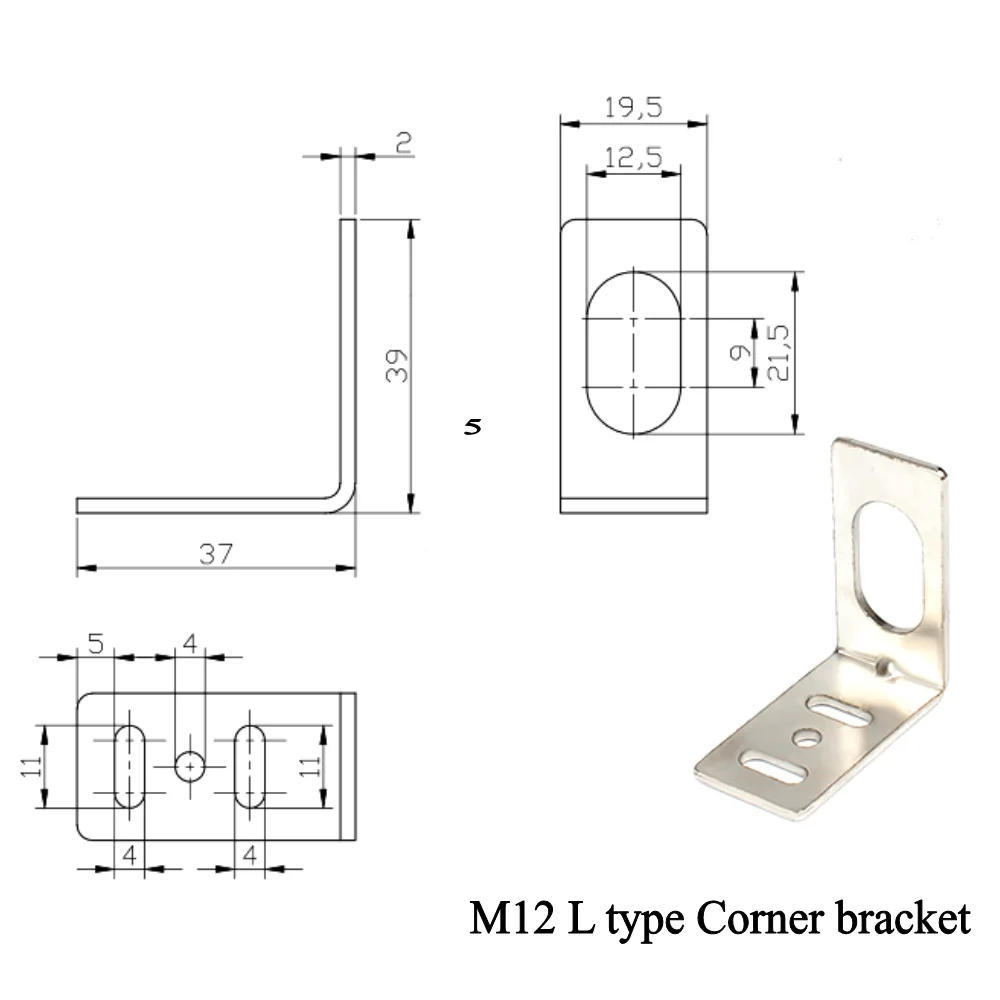

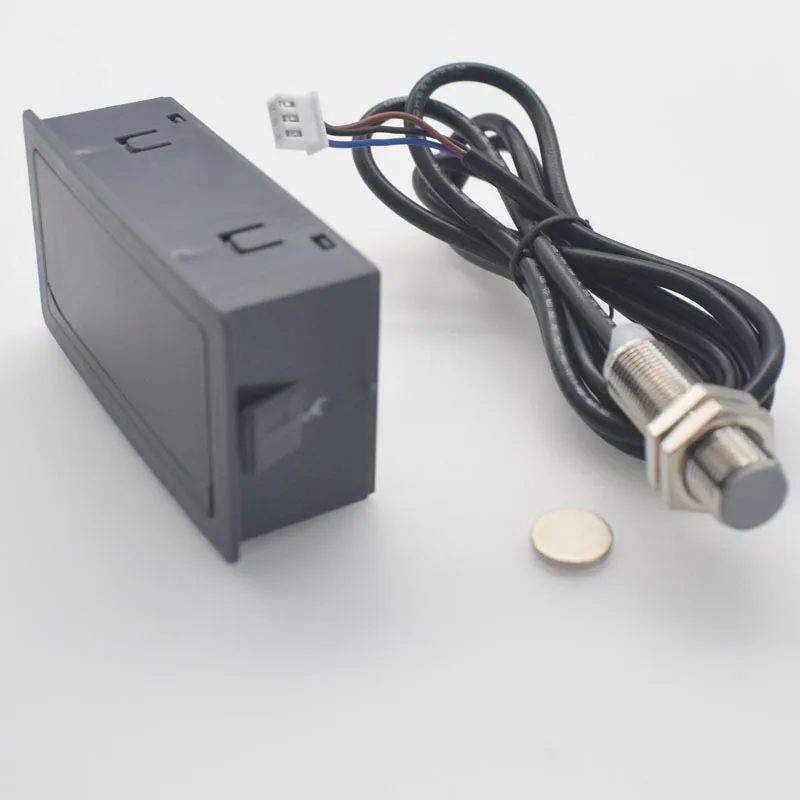

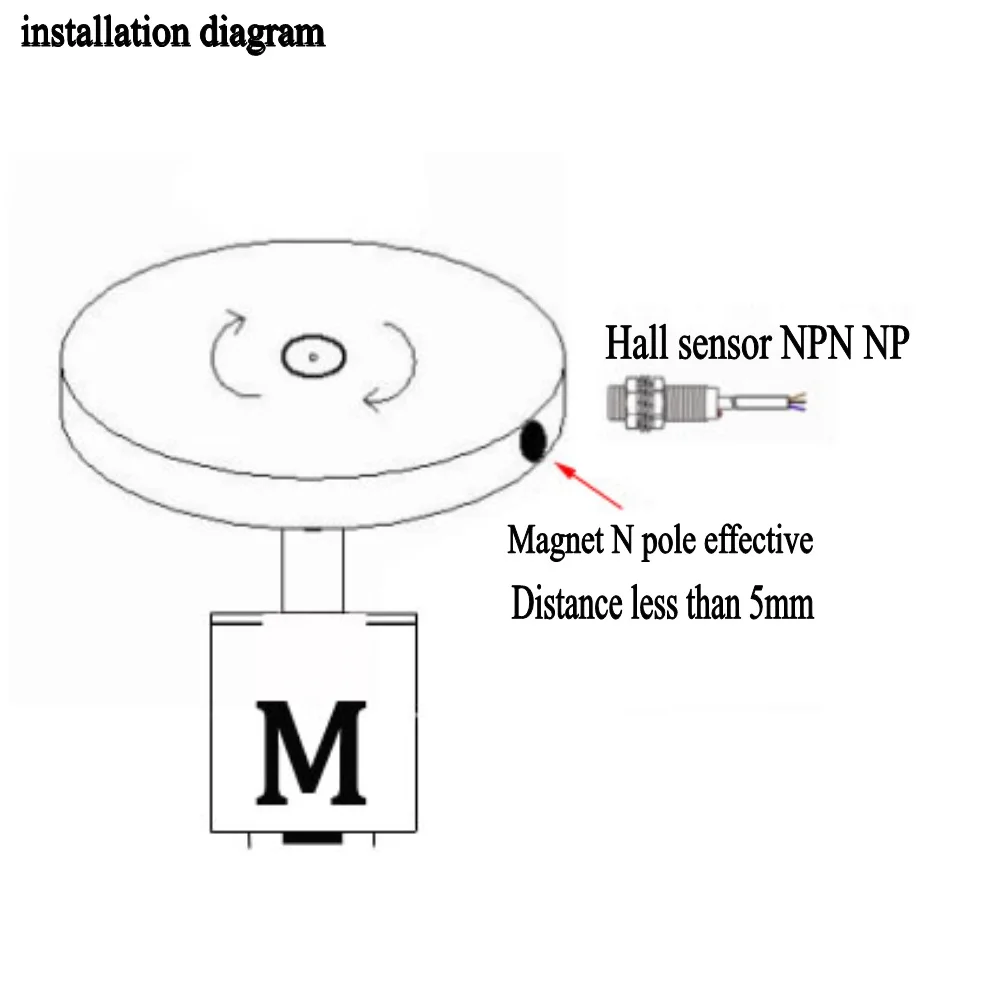

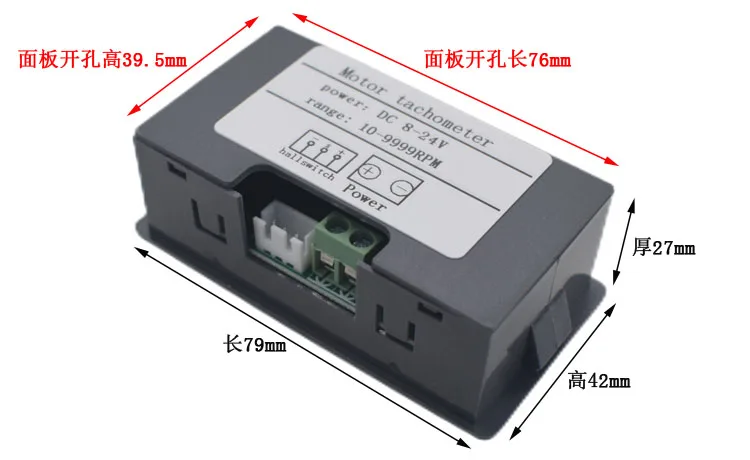

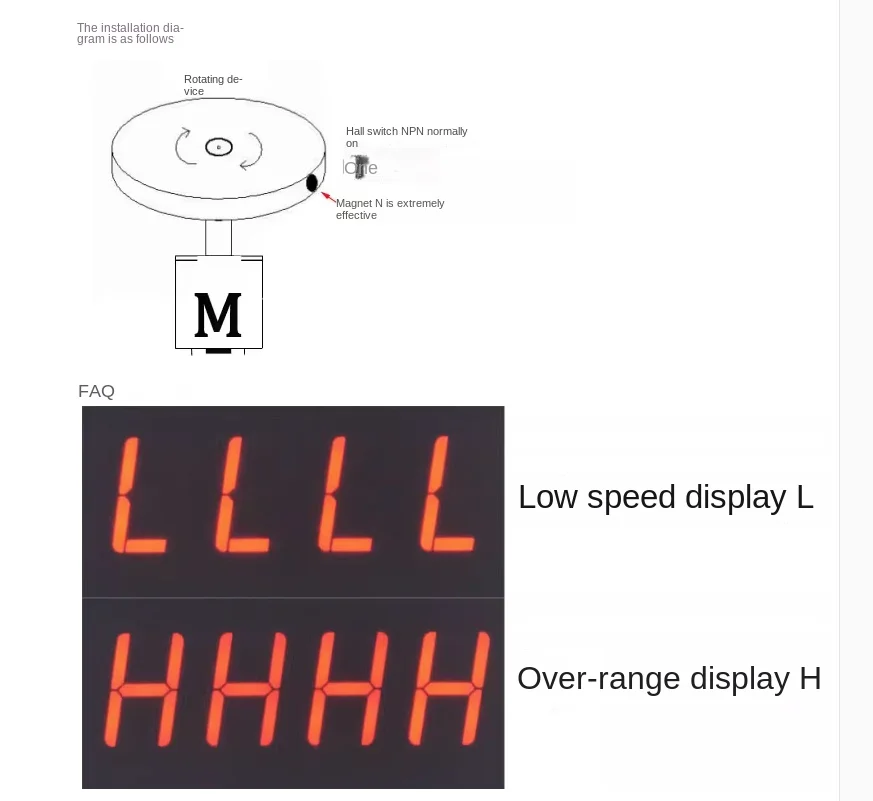

• Notice: L type bracket and the Tachometer and hall is offered separately , Choose the L type bracket not include the Tachometer and hall sensor Product parameters Input voltage: DC8-24V Hall sensor: NPN form 5V Measurement range: 10-9999RPM Measurement accuracy: ± 0% Display mode: 0 "Nixie tube Hall switch cord length: 1 meter, Module size: size * width * height 79mm * 42mm * 27mm Installation method: embedded Panel opening: size * width 76mm * 39 Magnet and Hall switch installation Pay consideration to the polarity of the magnet during installation If there is not any pace reveal close to the Hall switch, update the magnet at the different facet The installation should be agency to stop high-speed throwing out The fine distance between the front of the Hall swap and the magnet is<5mm, and the magnet N pole is efficacious The Hall swap and motor usally must be fixed with a bracket, and it's not allowed to carry the motor Hall swap for speed measurement The magnet is fixed on a large-diameter rotating shaft, and the rotating disk must rotate concentrically and horizontally as a lot as possible Improper shaking and excessive horizontal rotation can end in erroneous detection

•
•
•
•
•
