Description

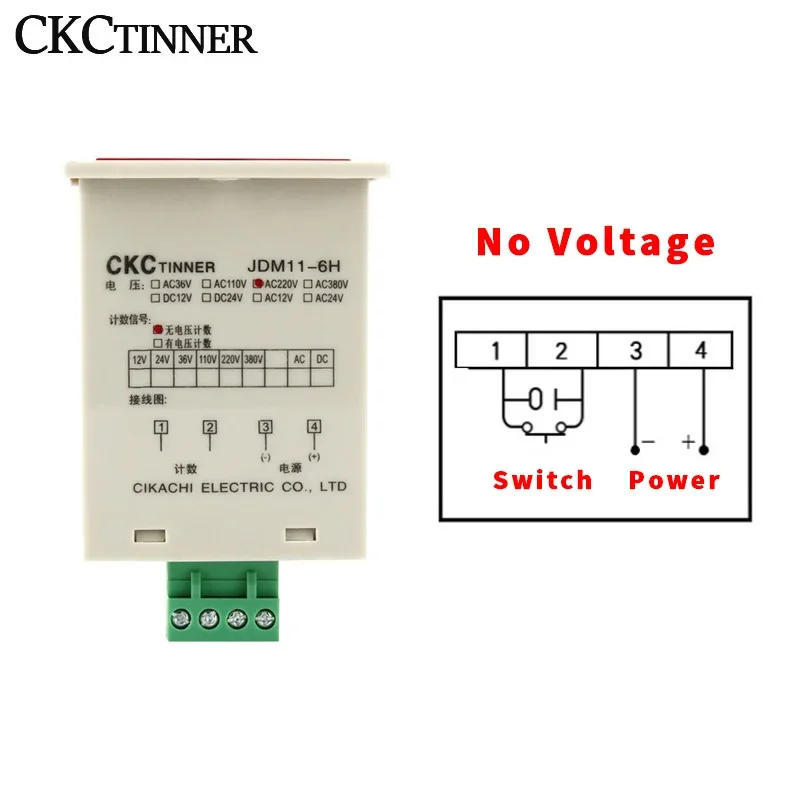

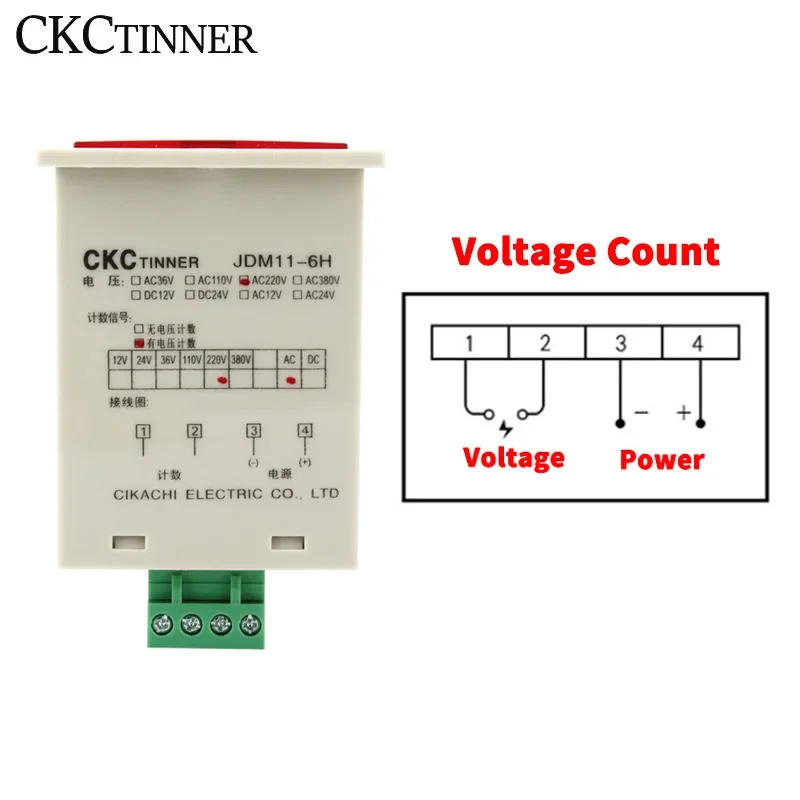

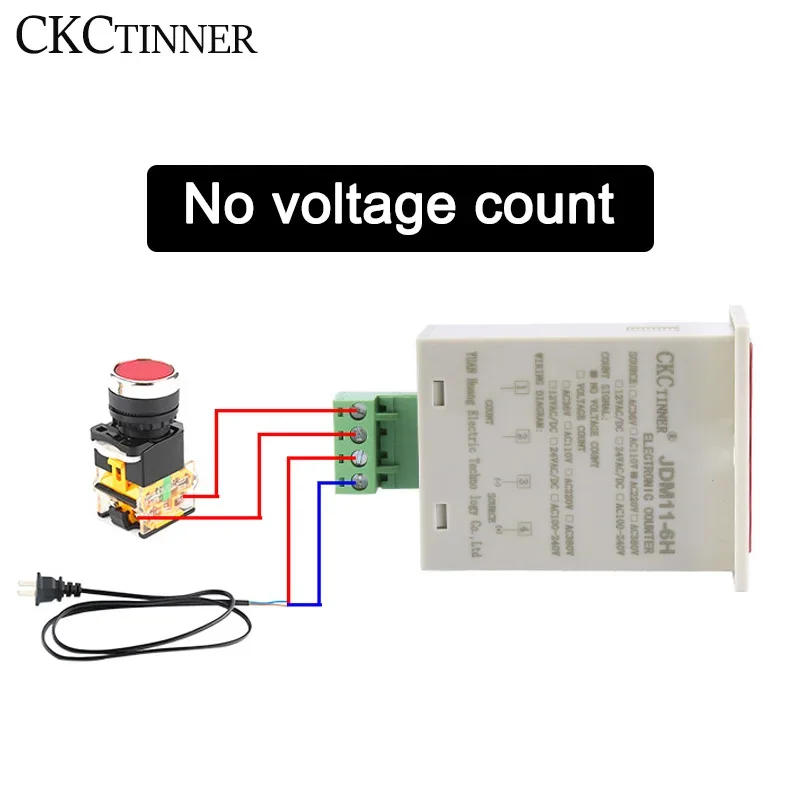

• Description Model number: JDM11-6H Supply voltage: DC12V DC24V DC36V AC110V AC220V AC380V Input Signal: Contact,level, sensor Max counting speed:10 instances per moment (50ms) No-power memory: 10 years min Power consumption: 3VA max Counting error: ≤1 Reset time: ≥0 Power reset: ≥1s Dielectric strength: 2000Vac, 50/60Hz for 1min Insulation resistance: 100MΩ min at 500 VDC Operating temperature: -10 to 40 °C

•
•
•
•
•
