Description

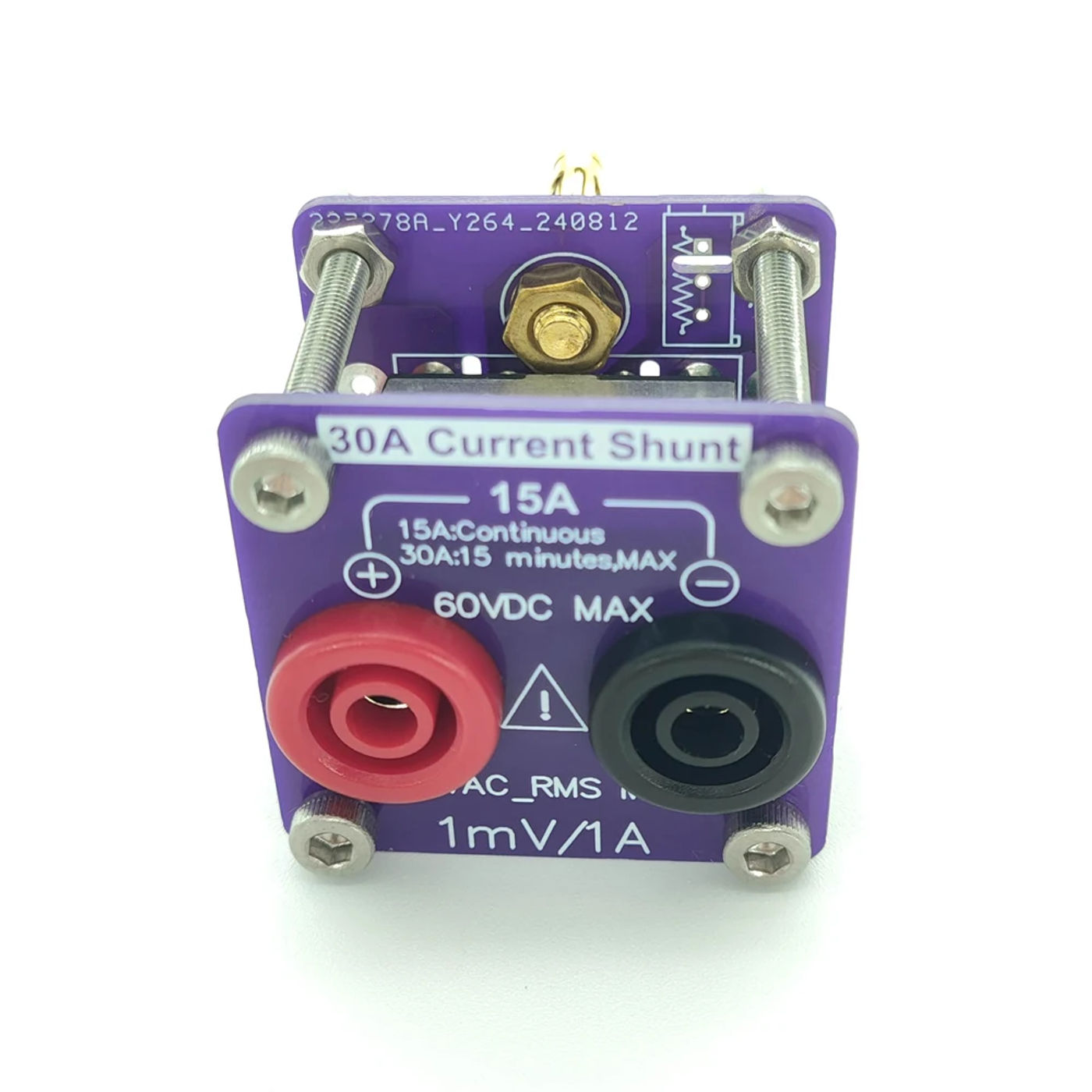

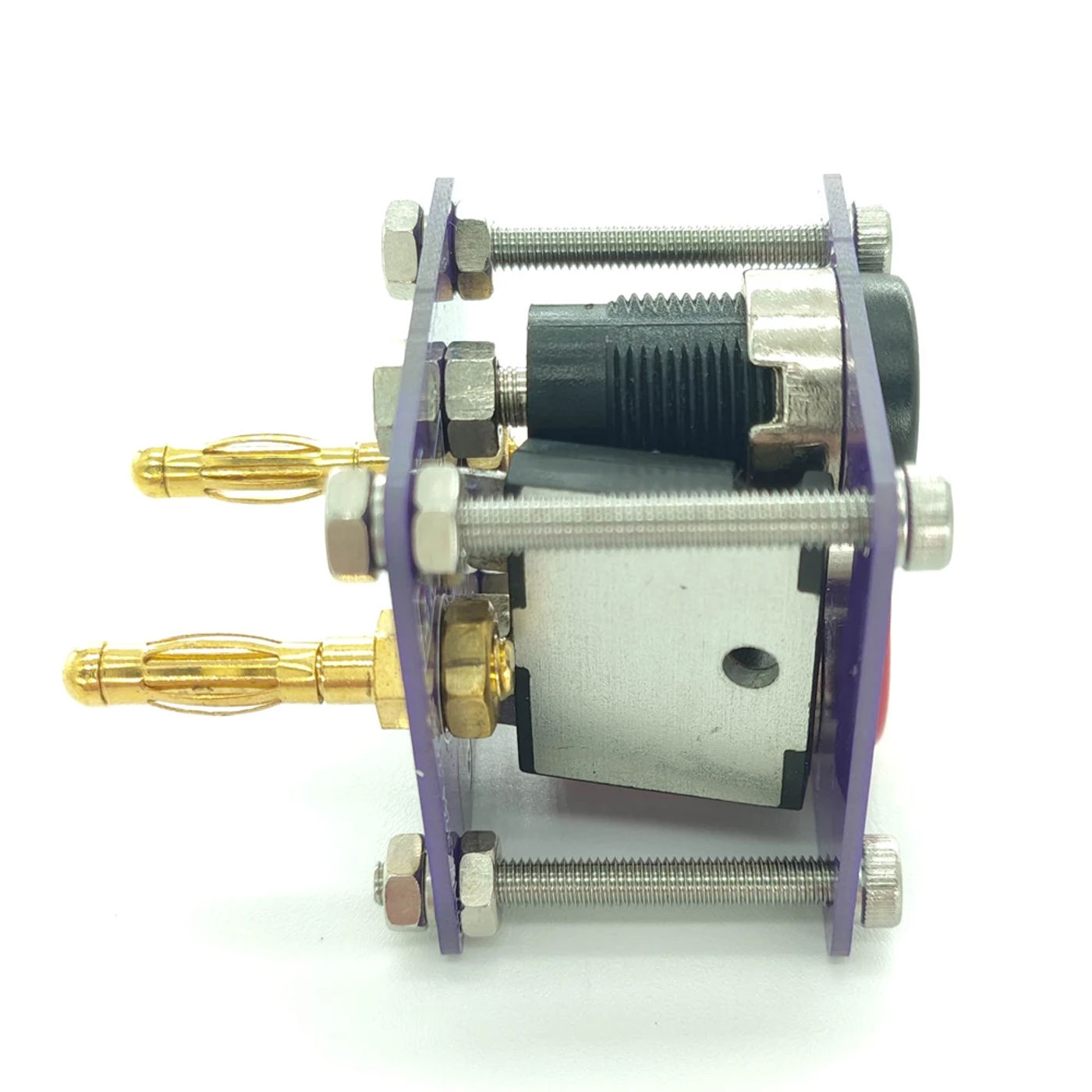

• Specification: Name: DIY 30A current shunts Technical parameters: 1 Max continual operating current: 15A 2 Max operating time can&;t exceed quarter-hour if operating current is 30A three Safe operating voltage: 30V AC or 60V DC 4 Accuracy: 0-1KHz 0%, 1-5KHz 10A 5% 5 Current Voltage proportion: 1mV/1A 6 Current enter port: 4mm safety banana socket 7 Voltage output port: 4mm Lantern Application: Many desktop and handheld multimeters can&;t verify current that's over 10A, even they can examine 10A, it can&;t final long time due to it's too scorching from internal sense resistor, which is likely to wreck the multimeter Other hand, many multimeters don&;t have latest level, or latest level is too small like 1A or 3A, then this 30A current shunts might be helpful it can change latest signal to voltage signal Since each multimeter has 100mV or mV level, we can use the 100mV or mV level to test increased recent now, it's no subject to check as high as 15A for long time This DIY 30A latest shunts used an accuracy 0% 1mR 4 wires sense resistor, enter is 1mV/1A, when checking out 15A current, the four wires sense resister simply fed on 0, so it won&;t be too sizzling and may make certain long time trying out with little voltage loss Package: 1pcsDIY 30A latest shunts

•
•
•
•
•
