Description

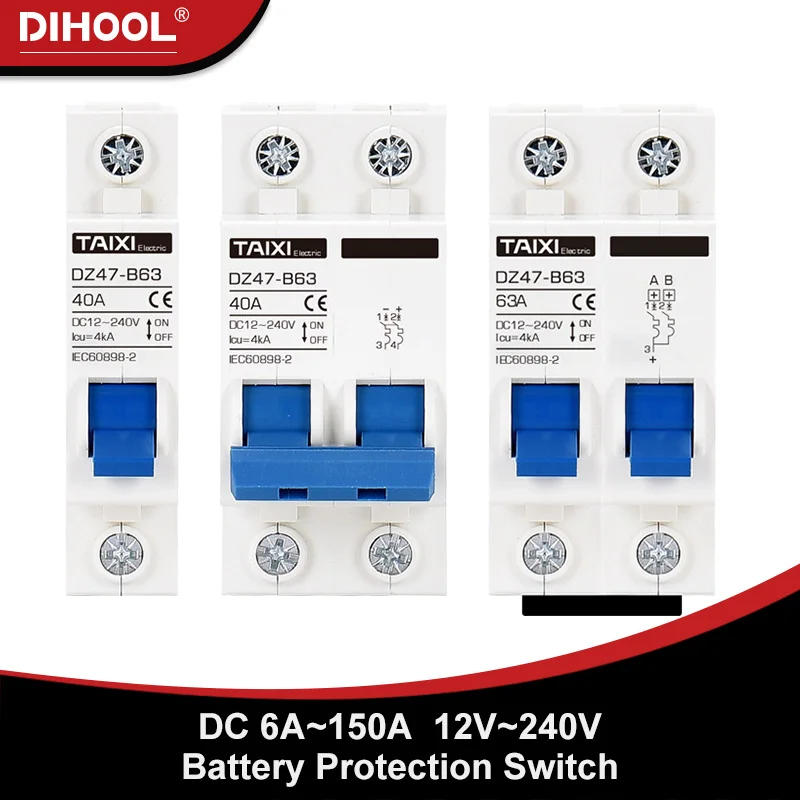

• DZ47-B Mini Circuit Breaker(type B MCB), devoted to the electrical motorcycle, and mainly used for over-load and short-circuit protection in DC circuits with rated voltage of 12V-240V for single-pole and rated latest of 150A In standard condition, it is going to switch hardly the electric equipments and lighting circuits This DZ47-B form B Circuit Breaker complies with the standards of GB10963 and IEC60898-1▌ Technical Parameters ● Rated current: 6,10,16,20,25,32,40,50,63,80,100,125,150A ● Rated working voltage: DC12V-240V ● Trip Curve: B-type curve (3ln ~ 5ln) ● Wiring: 6 ~ 63A, can be connected to max wires of 16mm²(6AWG); 80 ~ 150A, would be connected to max wires of 35mm²(2AWG) ● Operating ambient temperature:-30 °C to +70 °C ▌ Feature The newly designed flame-retardant shell and tremendous common inside ingredients can make certain a long-term sensible existence whereas growing the aesthetics and upgrading the grade The use of personalized coils and different components can efficiently protect the automobile circuit and stop injury to the circuit when the battery is short-circuited and overloaded ▌ Mounting Method1, Method one: DZ47B can be constant on DIN rail straight or positioned in a distribution box; 2, Method two: screws fixed, use 3mm or belown screws to repair circuit to wall or panel▌ Package Include1 x Battery Protection Switch(TIP:1P+1P/2P+2P will gift one bus bar)

•
•
•
•
•
