Description

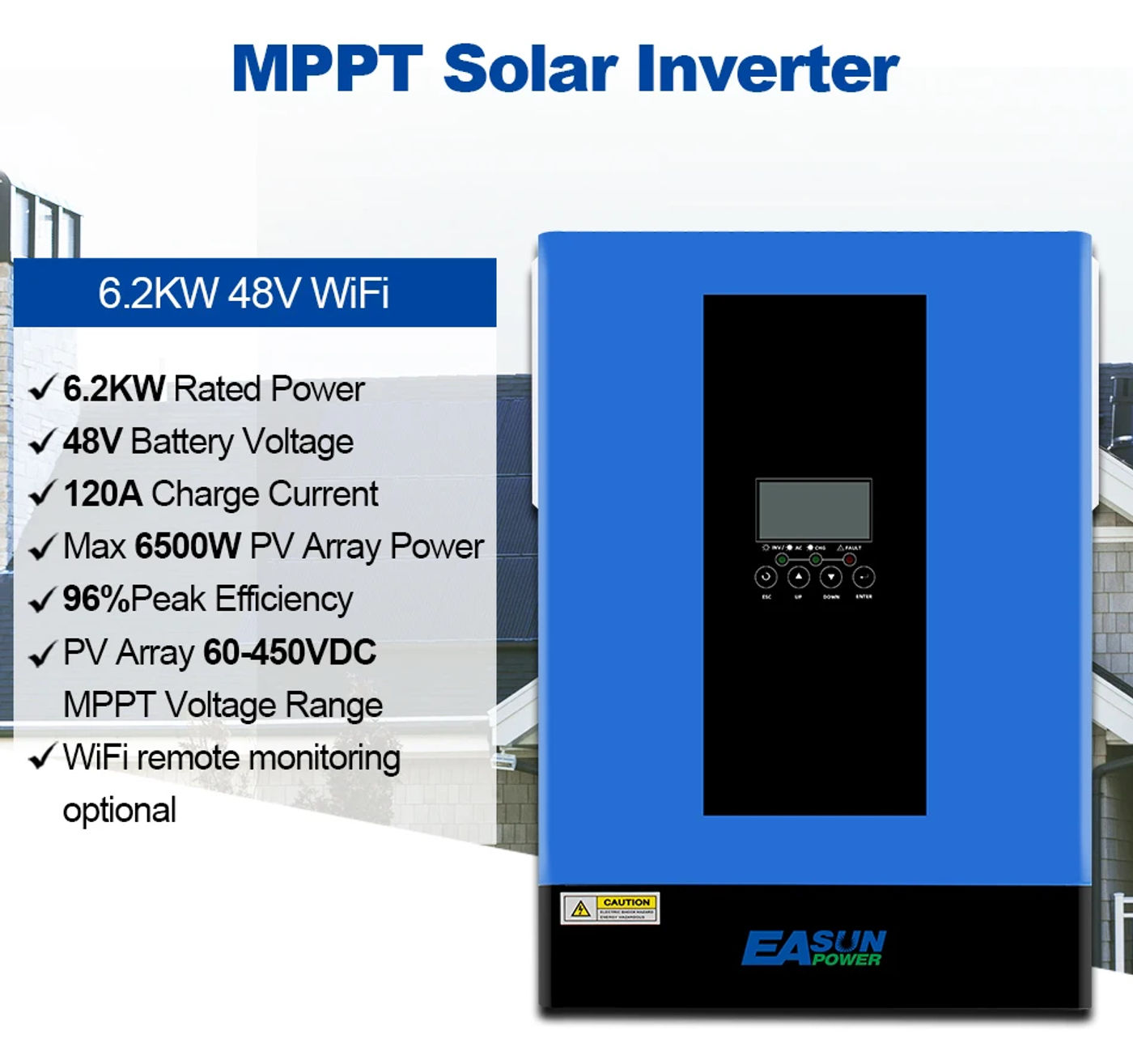

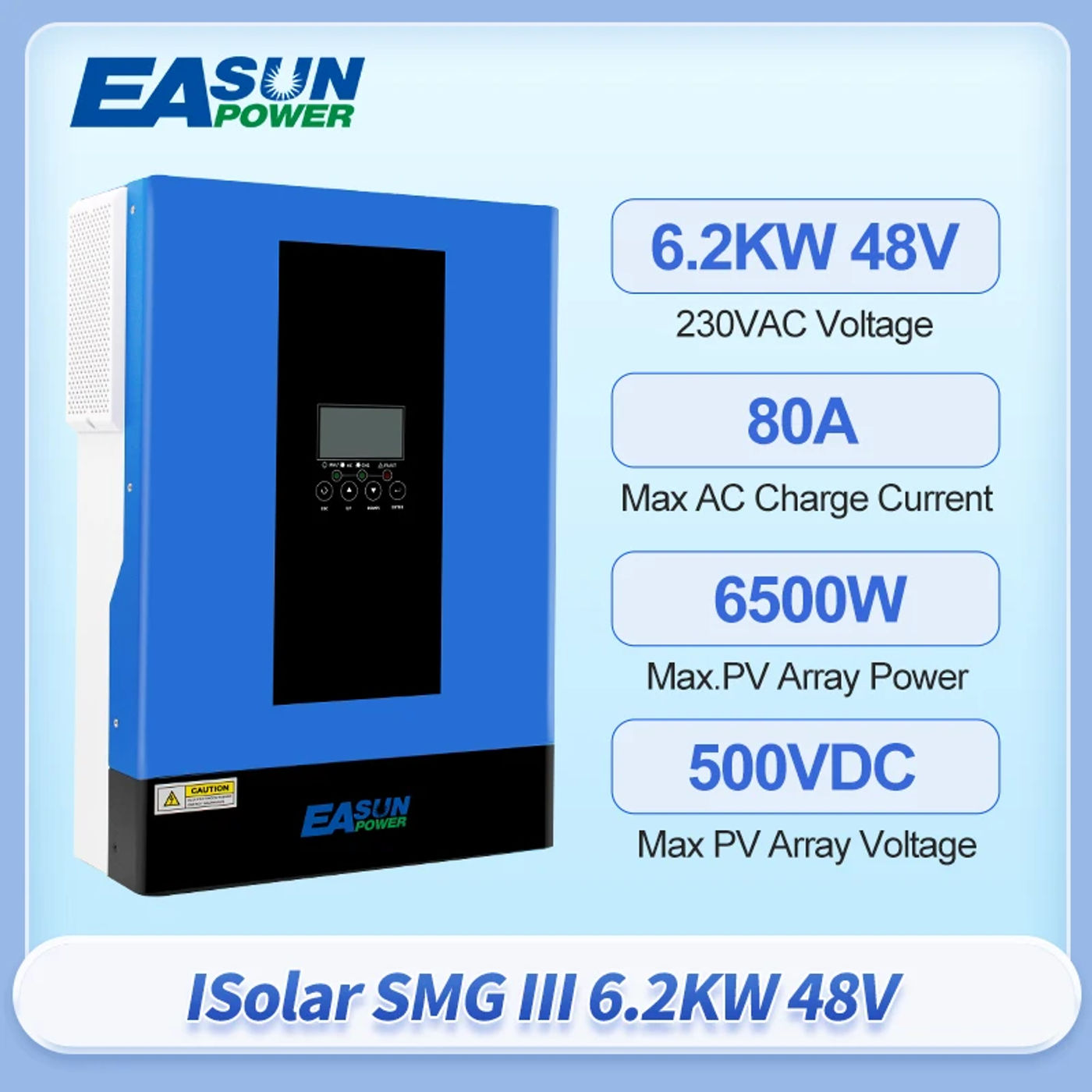

• Description: Tips: How to bypass VAT for EU country clients You can place orders from China to circumvent VAT ,if we have goods in stock in EU warehouse greater than one hundred fifty euros, we will deliver the goods from the EU warehouse for you,On the order page, you will find the value after VAT is diminished for you MODEL ISolar- SMG-111- 6 Capacity 6/6 Parallel Capability NO Lithium Battery activation YES ( By PV or Utility) Lithium Battery communication YES(RS485) INPUT Nominal Voltage 230VAC Acceptable Voltage Range 170-280VAC(For own Computer);90-280va(For Home Appliances) Frequency 50/60 Hz(Auto sensing) OUTPUT Nominal Voltage 220/230VAC+ 5% Surge Power 12400VA Frequency 50/60Hz Waveform Pure Sine wave Transfer Time 10ms(For own Computer);20ms(For Home Appliances) Peak Efficiency(PV to INV) 96% Peak Efficiency(Battery to INV) 93% Overload Protection 5s@>= 140% load; 10s@110%~140% load Crest Factor 3:1 Admissible Power Factor 0~1 (inductive or capacitive) BATTERY Battery Voltage 48VDC Floating Charge Voltage 54VDC OverCharge Protection 63VDC Charging Method CC/CV SOLAR CHARGER & AC CHARGER Solar Charger Type MPPT Max Array Power 6500W Max Array Open Circuit Voltage 500VDC PV Array MPPT Voltage Range 60VDC~ 500VDC Max Input Current 27A Max Solar Charge Current 120A Max Charge Current 80A Max Current (PV+AC) 120A PHYSICAL Dimensions,D x W x H(mm) 438*295*105 Package Dimensions,D x W X H(mm) 560*375*185 Net Weight(Kg) 9 Communication Interface RS232+ RS485 ENVIRONMENT Operating Temperature Range (-10°C to 50°C) Storage Temperature (-15°C ~ 50°C) Humidity 5% to 95% Relative Humidity ( Non-condensing )

•
•
•
•
•
