Description

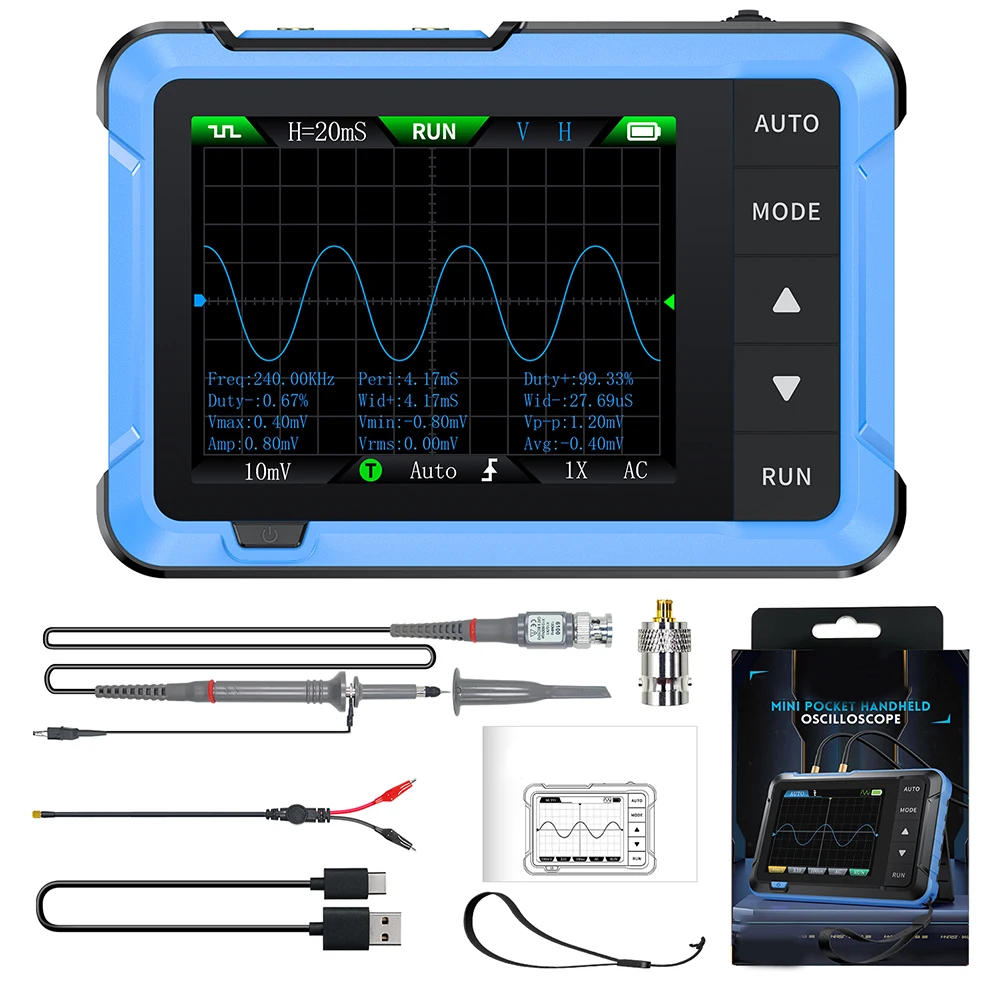

• Features: DS0-510 has a real-time sampling fee of 48MS/s, a bandwidth of 10MHz, and complete set off purposes (single, normal, automatic) It can be utilized freely for periodic analog signals and non-periodic electronic signals, and can measure voltages up to ±400V It is equipped with an effective one-button AUTO, which might demonstrate the measured waveform with out tedious changes It also comes with a wide range of function sign mills (50KHz) Equipped with a 2 320" 240 resolution high-definition LCD display screen and a integrated 1000mAh superb lithium battery, it can be used always for roughly 4 hours after being entirely charged Sampling fee 48MS/S Bandwidth 10M Vertical sensitivity 10mv/Div- 1ov/D i Time base range 50ns-205 Voltage vary X1: ±40V (Vpp: 80V), X10: ±400V (Vpp: 800V) Trigger mode automatic/normal/single Trigger edge: increasing edge/falling edge Coupling mode AC/DC Calibration square wave: frequency: 1K; Duty cycle: 5096; Amplitude: three Signal generator: Frequency: 0-50KHz Duty cycle: 0-100%6 (rectangular wave and sawtooth wave) Amplitude zero Waveform: sine wave, rectangular wave, sawtooth wave, half wave, complete wave, effective step wave, opposite step wave, exponential rise, exponential fall, DC signal, multi-audio, Sink pulse, Lorentz wave Display: 2 inches/PP1:320*2405WIA USB charging: 5V/1A Lithium battery capacity: 1000mAh Page display: ①Vertical unit: represents 1 wide grid in the vertical direction Represents voltage ②) Trigger mode indicator : Auto signifies automatic trigger, Single signifies single trigger, Normal indicates regular trigger③) Probe ratio: This ought to be per the 1X/10X switch atmosphere at the probe manage If the probe is in 1X gear, the oscilloscope also needs to be set to 1X tools 1X measures ±40V voltage, and 10X measures ±400V voltage④ Input coupling mode indicator , AC signifies AC coupling, DC indicates DC coupling⑤ Trigger voltage indicator ⑥ Trigger function indicator ⑦ Baseline indicator , this indicates the current function 0V voltage returns to the horizontal time base, indicating that the length of time represented by a enormous grid within the horizontal route returns) Touch the run pause indicator , RUN ability running, STOP ability pause @ set off edge indicator ⑩ V H: left and right control time base, up and down control channel vertical sensitivity; ,: left and appropriate control horizontal trigger movement, up and down control channel waveform up and down movement; 4·: left and correct control horizontal trigger movement, up and down control set off level movement "Press MODE control to switch Four battery power Specifications: Part name: DSO510 oscilloscope Material: as proven Size: 99x68 Color: black and blue Package content: DSO510 host*1 P6100 excessive voltage probe*1 Adapter*1 for Alligator clip probe*1 Charging cable*1 Lanyard*1 User manual*1 Note: ●After receiving the device, please use it after it is fully charged ●When utilizing the oscilloscope, listen in on the selection of gears The gears of the oscilloscope needs to be in step with the gears of the probe ●When measuring excessive voltage, do not contact any steel a part of the oscilloscope to avoid the danger of electrical surprise ●Try not to carry out excessive voltage trying out while charging When calibrating, you need to unplug the BNC probe or short-circuit the high quality and destructive poles of the probe ●USB firmware improve solely supports WIN10 and above It is forbidden to drag in information other than the launched firmware, otherwise it's totally likely to cause irreversible penalties ●Please use the voltage within the specification vary of the manual for charging

•
•
•
•
•
