Description

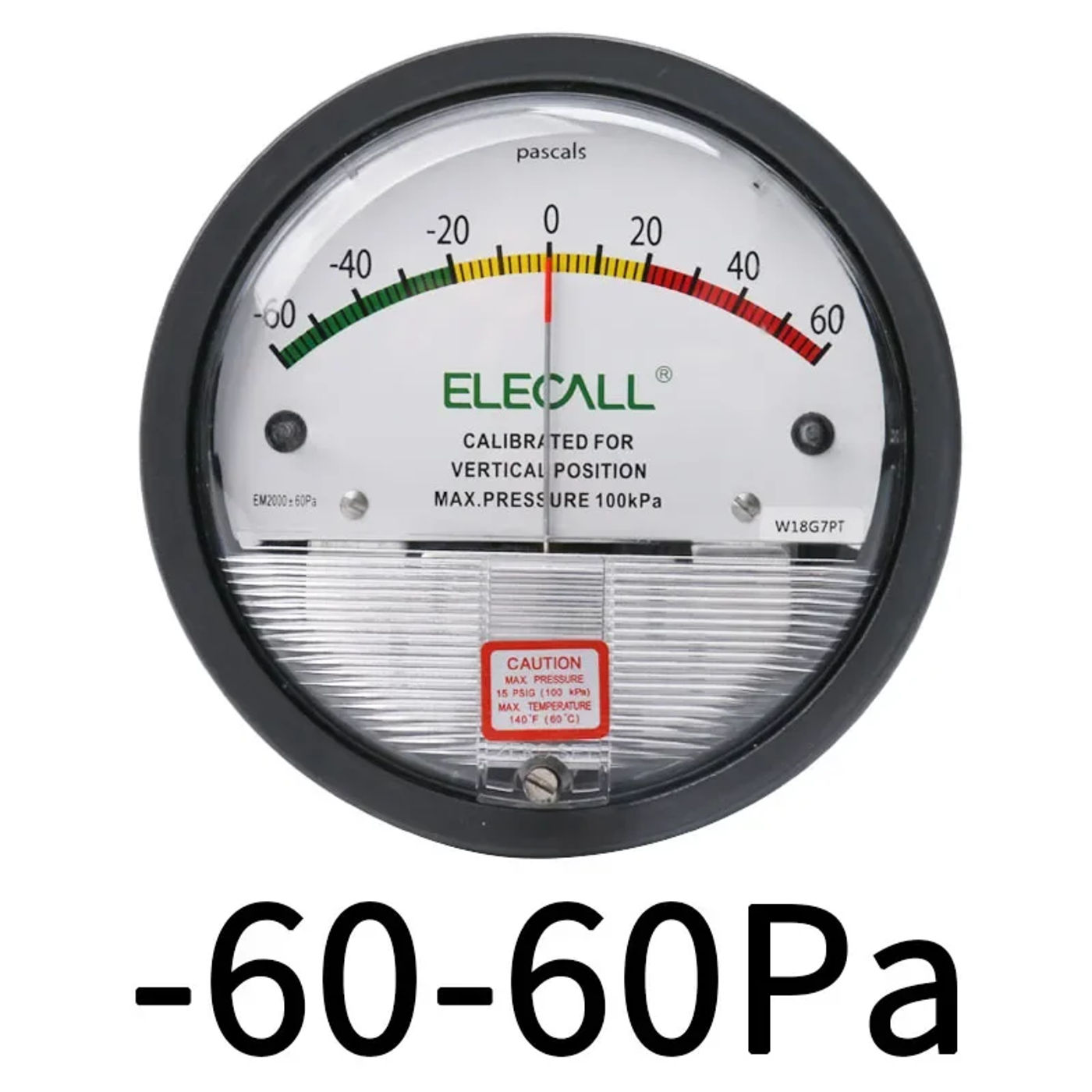

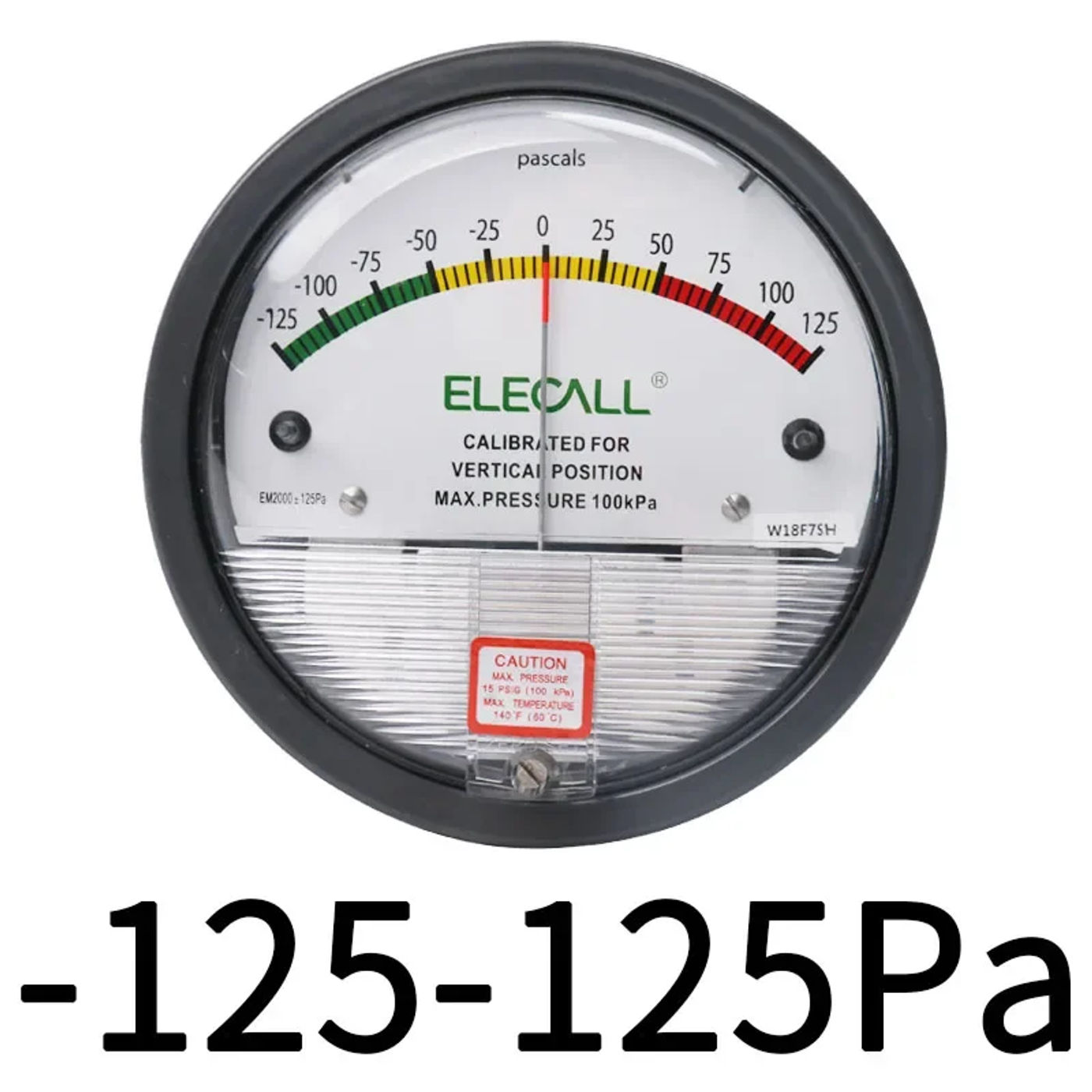

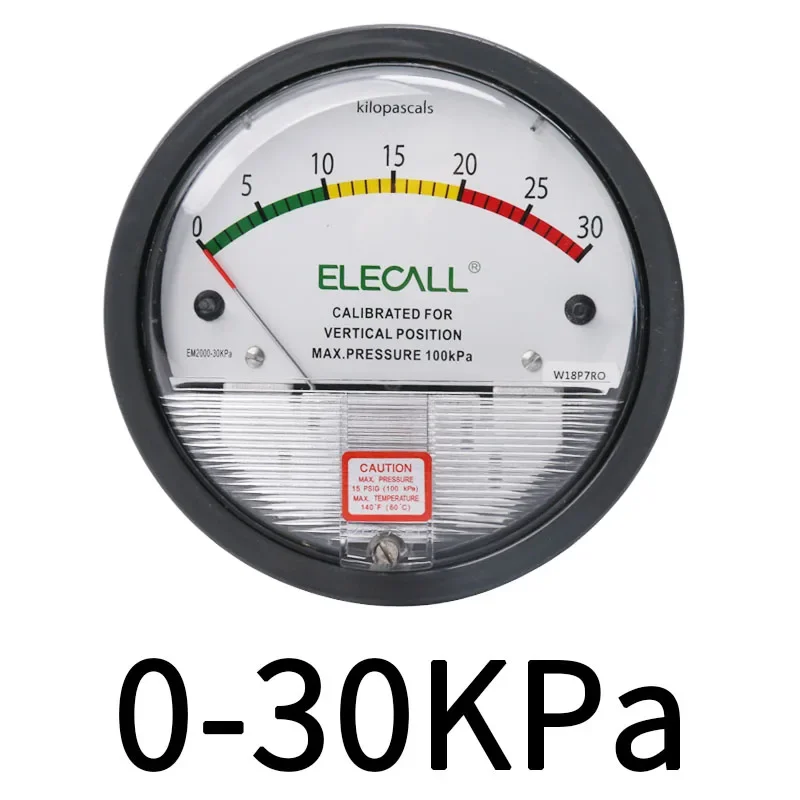

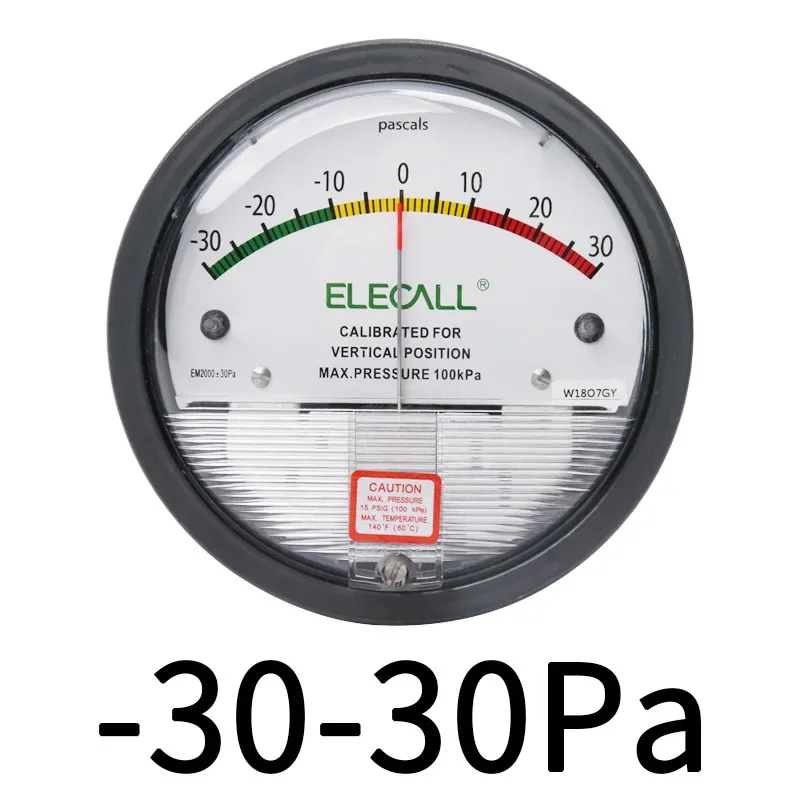

• ELECALL EM2000 -30PA~30KPA Micro Differential Pressure Gauge High Precision Air Pressure Meter BarometerSpecification Product Name: ELECALL micro differential strain gauge Temperature range:-7-60° Dimensions:120*55mm Rated pressure: -68-103kpa Weight:540g Overpressure: Rubber plug will break free when 172kap Range: Minimum0-60pa,Max 0-210kpa Material: Pressed forged aluminum Connection: High pressure and coffee pressure will be 1/8" spinal canal thread Accuracy: 21°:±2%FS(-125pa;250pa is 3%, -60pa is 4%) Connections: 1/8" female NPT excessive and low pressure taps, duplicated, one pair aspect and one pair backFeatures1 Virtually doing away with the friction generated by means of the rotation gear2 The inner table with out filling liquid No inertia, no flow pointer motion Excellent anti-vibration, anti-jitter functionality Excellent resistance to pressure overload, measurable, positive, adverse or differential pressure and Flexible installation Has an easy structure, small size, low energy intake and high precision, compatible for almost all software locations The software utilizing a bigger pressure by means of explosion-proof membrane and diaphragm connected overvoltage defense web page photographs is simply for reference, a part of a distinction would not influence the person experience, please comprehend it to the adaptation between various monitors, the picture won't replicate the actual shade of the thing forgive it Measure advantageous pressure: Connect the stress supply with one of the two high-pressure holes by pipe and plug the unconnected high-pressure holes to ventilate one or two low-pressure ventilation holes Measure unfavorable pressure Connect the low-pressure supply with one of the two low-pressure holes by pipe and plug the unconnected high-pressure holes to ventilate one or two high-pressure ventilation holes Connect the higher of the 2 stress resources with the lower of the two low pressure assets and plug the unconnected air outlet with a pipe Measure differential strain Connect the stress supply with one of the two high-pressure holes by pipe and plug the unconnected high-pressure holes to ventilate one or two low-pressure air flow holes Include1 x Differential Pressure Gauge

•
•
•
•
•
