Description

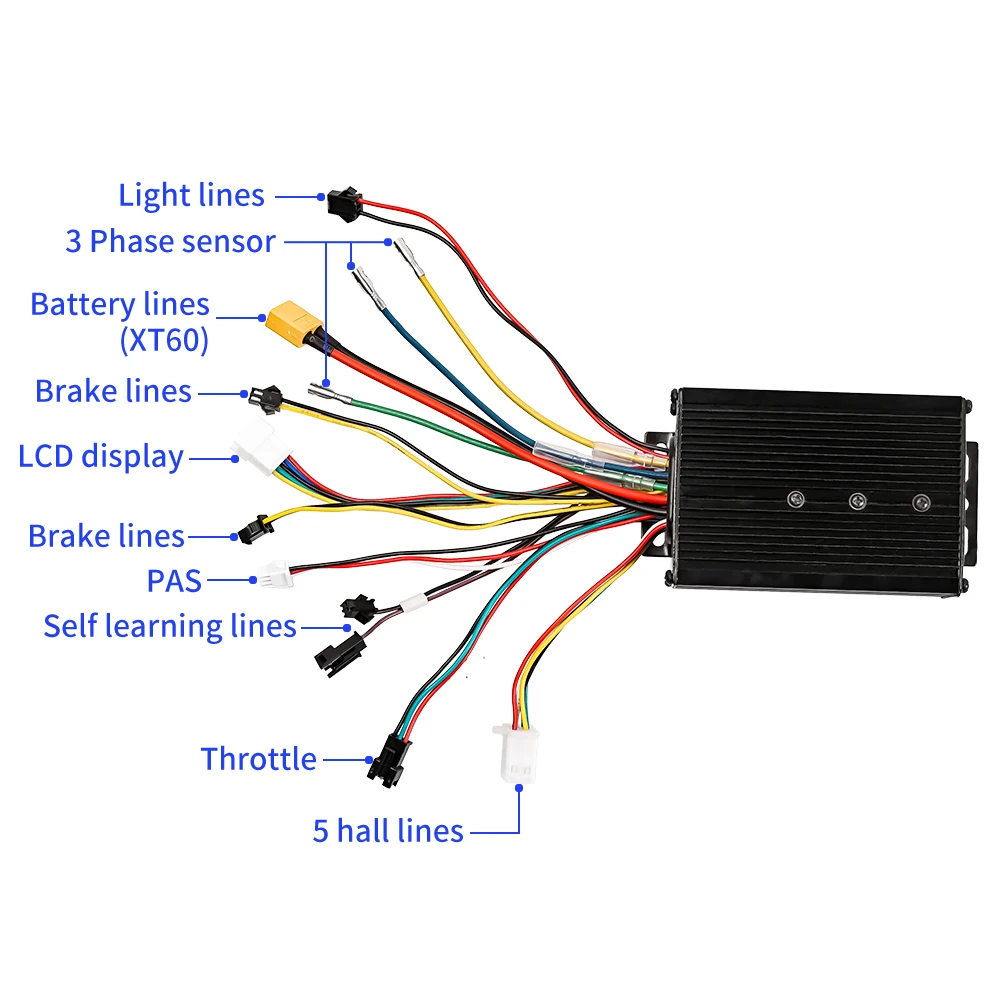

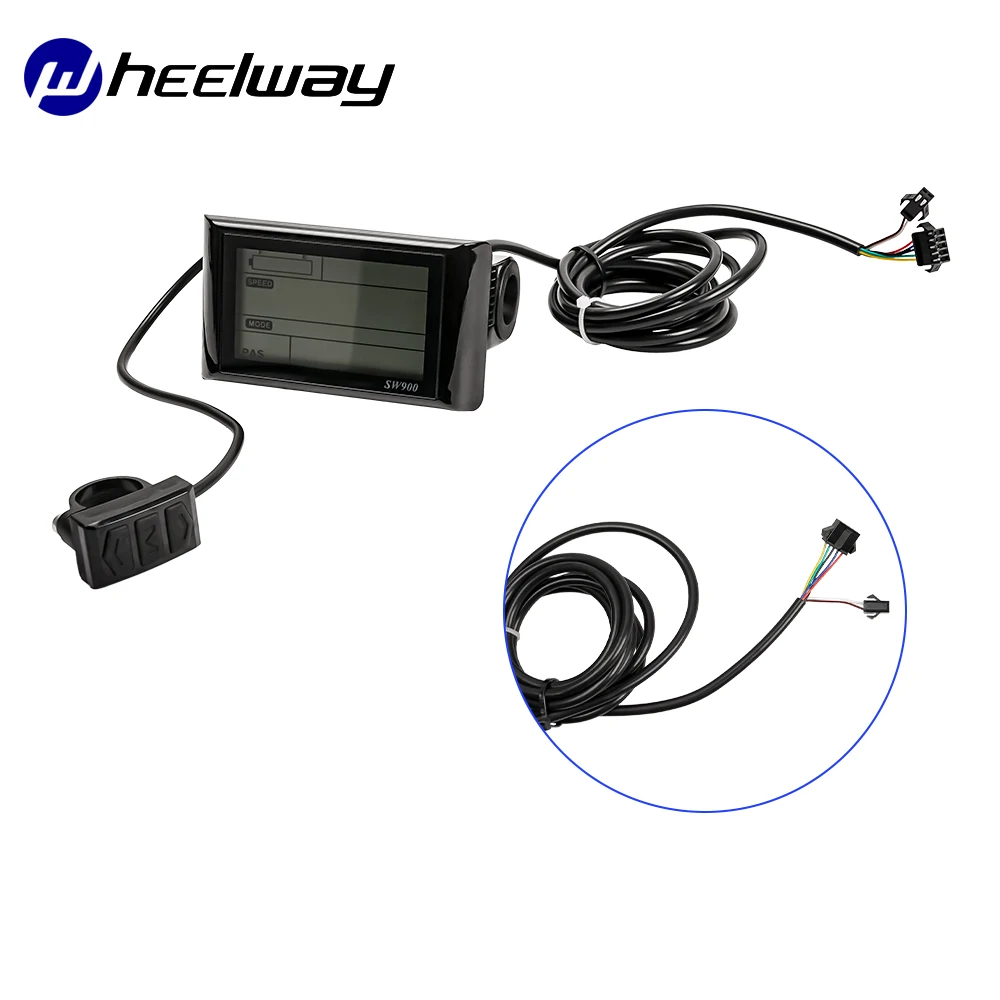

• Controller: 36V or 48V Universal This controller can working with out the PAS(Pulse Padel Assistant Sensor) Sine wave Controller (Has Self–learning Wires, can event with your motor more easily) Support hydraudic brake sensor or brake sensor connector Support LCD Control Panel Support 36V or 48V Light Control Support pace management Support Cruise Function Support speaker and led gentle Voltage: 36V/48V Wattage: 500W–1500W Throttle : 1–5V Casing material: Aluminium 1000W 1*Controller 1*Lcd reveal 1*Throttle LCD: P01: backlight brightness, level 1 is the darkest, level 3 is the brightest; P02: mileage unit, 0: KM; 1: MILE; P03: Voltage level: 24V, 36V, 48V, default 36V; P04: Sleep time: 0, no sleep; other numbers are sleep time, range: 1–60; unit minutes; P05: Power–assisted gear: 0, three gear mode: 1 gear 2V, 2 gear, 3V, three gear, 4V; 1, five equipment mode: 1 tools 2V, 2 gear, 2, three gear, 3V, 4 files, 3, five files, 4V; P06: Wheel diameter: unit, inch; accuracy: 0; P07: Number of speed magnets: Range: 1–100; P08: Speed limit: fluctuate 0–50km/h, 50 capacity unlimited speed, 1 Non–communication repute (instrument control): When the speed is greater than the set speed, the PWM output is became off; when the rate drops beneath the set speed, the PWM output is automatically grew to become on, and the using velocity is the present speed ±1km/h; Speed limit, velocity limit isn't always limited) 2 Communication fame (controller control): The force pace is maintained at the set cost Error: ±1km/h; (both help and speed limit) Note: The cost here's in line with kilometers When the unit surroundings is converted from kilometer to mile, the rate cost of the reveal interface could be robotically switched over to the right mileage value, but the pace limit cost records set at this menu under the mile interface No conversion, inconsistent with the particular demonstrate mile velocity restrict value; P09: 0 start, non–zero delivery setting, 0: zero start; 1: non–zero start; P10: Drive mode environment zero : Power drive (the booster position determines how much strength is output, and the swap is invalid) 1 : Electric power (driven by means of the rotary handle, the ability assist role is invalid at this time) 2 : The energy assist pressure and the electric drive coexist on the same time (the electrical force is invalid within the 0 start state) P11: Boost sensitivity surroundings Range: 1–24; P12: Boost birth strength setting Range: 0–5; P13: Power magnetic metallic disc kind environment 5,8,12 magnetic metallic 3 forms P14: Controller recent limit value atmosphere Default 12A Range: 1–20A P15: The function has now not been opened but P16: ODO clear setting Long press the up button for 5 seconds ODO clear

•
•
•
•
•
