Description

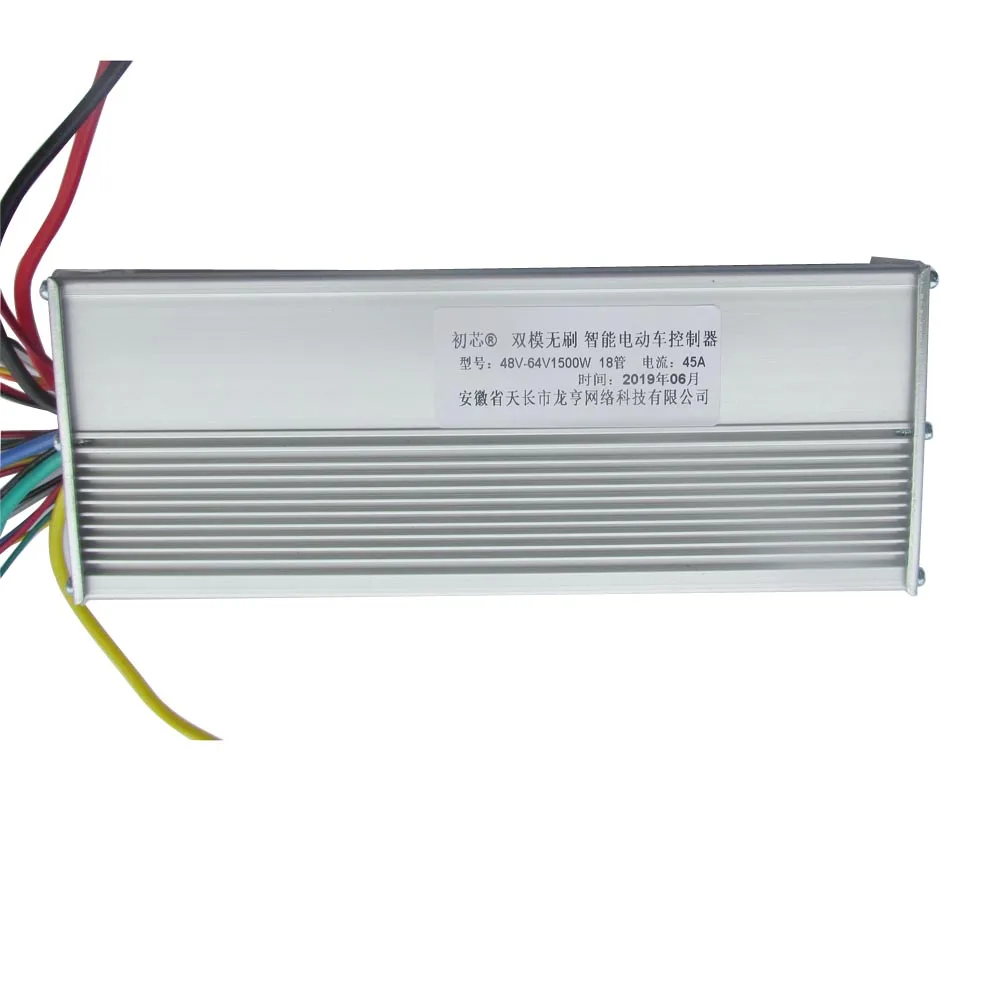

• 48V/60V/64V 1500W brushless controller can paintings with corridor sensor/without hall sensor Rated Voltage: 48-64V Low Voltage : 41V/52V±0 Rated Power: 1500W Limit Current: 45A Transistors: 18 1 instrumentation line （There are two tool wires, one is acceptable for pointer form instrument (green wire), and the other is suitable for liquid crystal form device (purple wire), choose wiring in keeping with diverse instruments） 2 motor line three battery line four electrical lock line 5 corridor line 6 line 7 low brake eight high brake line nine 3-speed line 10 line eleven line 12 Cruise speed line thirteen Anti-theft power line 14 Anti-theft alarm line 一 the motor line (color to color) 二 join the battery line(red:+ , black:-) 三 join the controller throttle line, electric lock(must connect） å›› join the corridor line 五 the 2 self-learning lines, the wheel will forward or opposite (1 wheel forward ,Separate the self-learning line 2 wheel reverse, Separate the self-learning line Docking the self-learning line again if wheel forward ,Separate the self-learning line) å…­ functions would be linked as needed

•
•
•
•
•
