Description

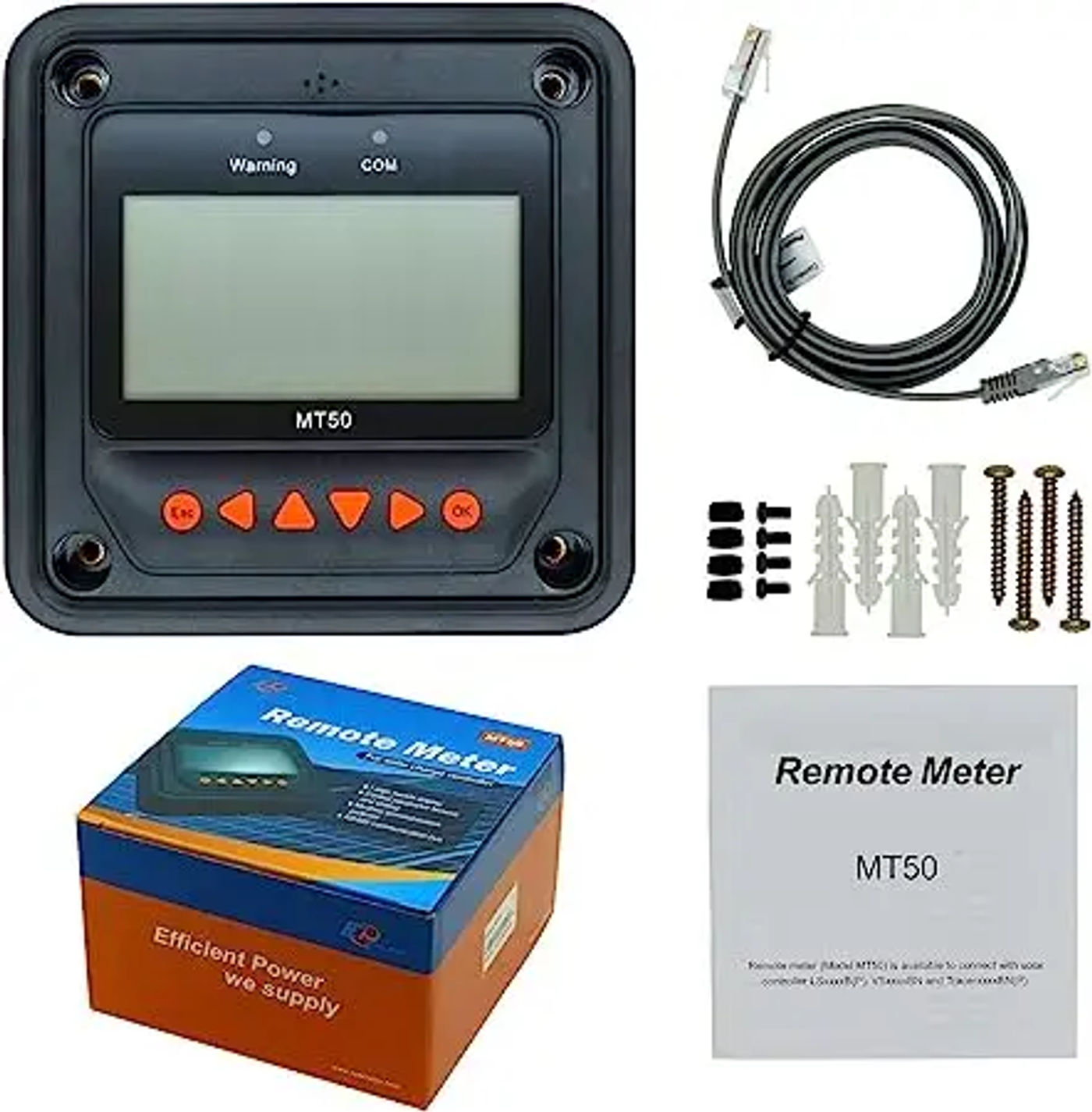

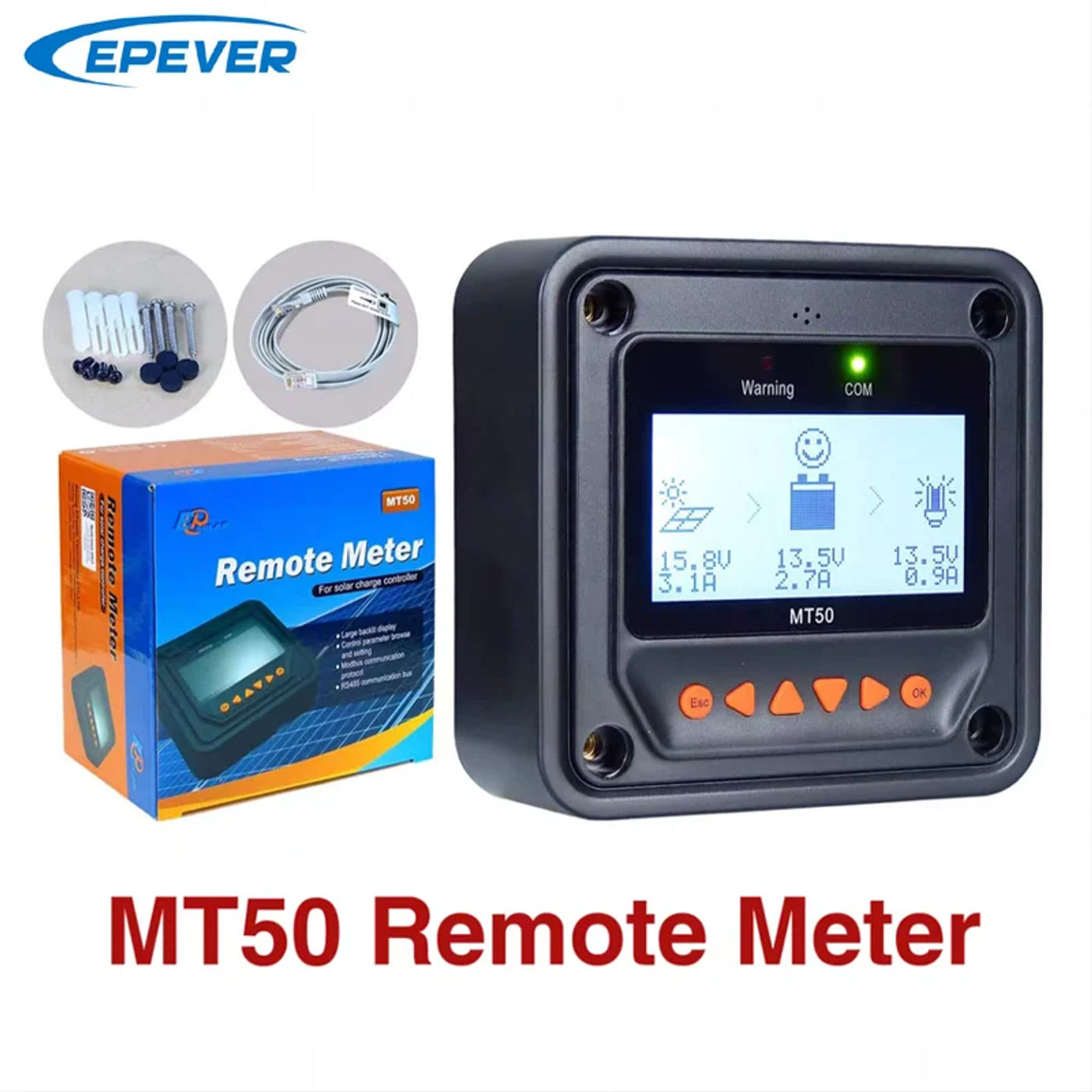

• MT50 Remote Meter Overview: MT50 is a new era of distant meters designed in keeping with the newest controller verbal exchange protocol and voltage technical criteria The MT50 distant meter, using the controllers equipped with RJ45 port, can visual display unit the controller’s real-time operating repute and program the parameters Features: For Tracer-AN/BN/BP, TRIRON-N, XTRA-N, LS-B, VS-BN, iTracer, eTracer Automatic title and diaplay the type, mannequin and applicable parameter records of controllers Real-time show the operational records and dealing popularity of the connection instruments in digital, graphic and textual kinds through a large-screen multifunction LCD Direct, convenient and speedy operation of six nevigation operate keys Both information and gear flowing in the similar lead, no need for exterior energy Real-time data monitoring and distant load switchover of the controllers, and knowledge browse and amendment of system parameters, charge control parameters and load management parameters Real-time reveal and acoustic alarm of failure information of the relationship instruments Longer communication distance according to RS485 Electrical Parameter Self-consumption Backlight and acoustic alarm ON＜65mA Backlight ON＜23mA Backlight OFF＜15mA Mechanical Parameter Faceplate dimensions ninety eight x ninety eight mm Frame dimensions 114 x 114 mm Connector sort RJ45 Meter cable Standard 2m, Max 50m Meter weight Simle package:0/Standard package:0 Environmental Parameter Ambient temperature -20℃~70℃ When the battery type is "USE," the Lithium battery voltage parameters keep on with the following logic: Over Voltage Disconnect Voltage>Over Charging Protection Voltage(Protection Circuit Modules(BMS))+0; Over Voltage Disconnect Voltage>Over Voltage Reconnect Voltage=Charging Limit Voltage ≥Equalize Charging Voltage=Boost Charging Voltage ≥ Float Charging Voltage>Boost Reconnect Charging Voltage: Low Voltage Reconnect Voltage > Low Voltage Disconnect Voltage ≥Discharging Limit Voltage Under Voltage Warning Reconnect Voltage>Under Voltage Warning Voltage Discharging Limit Voltage; Boost Reconnect Charging voltage> Low Voltage Reconnect Voltage; Low Voltage Disconnect Voltage ≥ Over Discharging Protection Voltage (BMS)+0 Package List:

•
•
•
•
•
