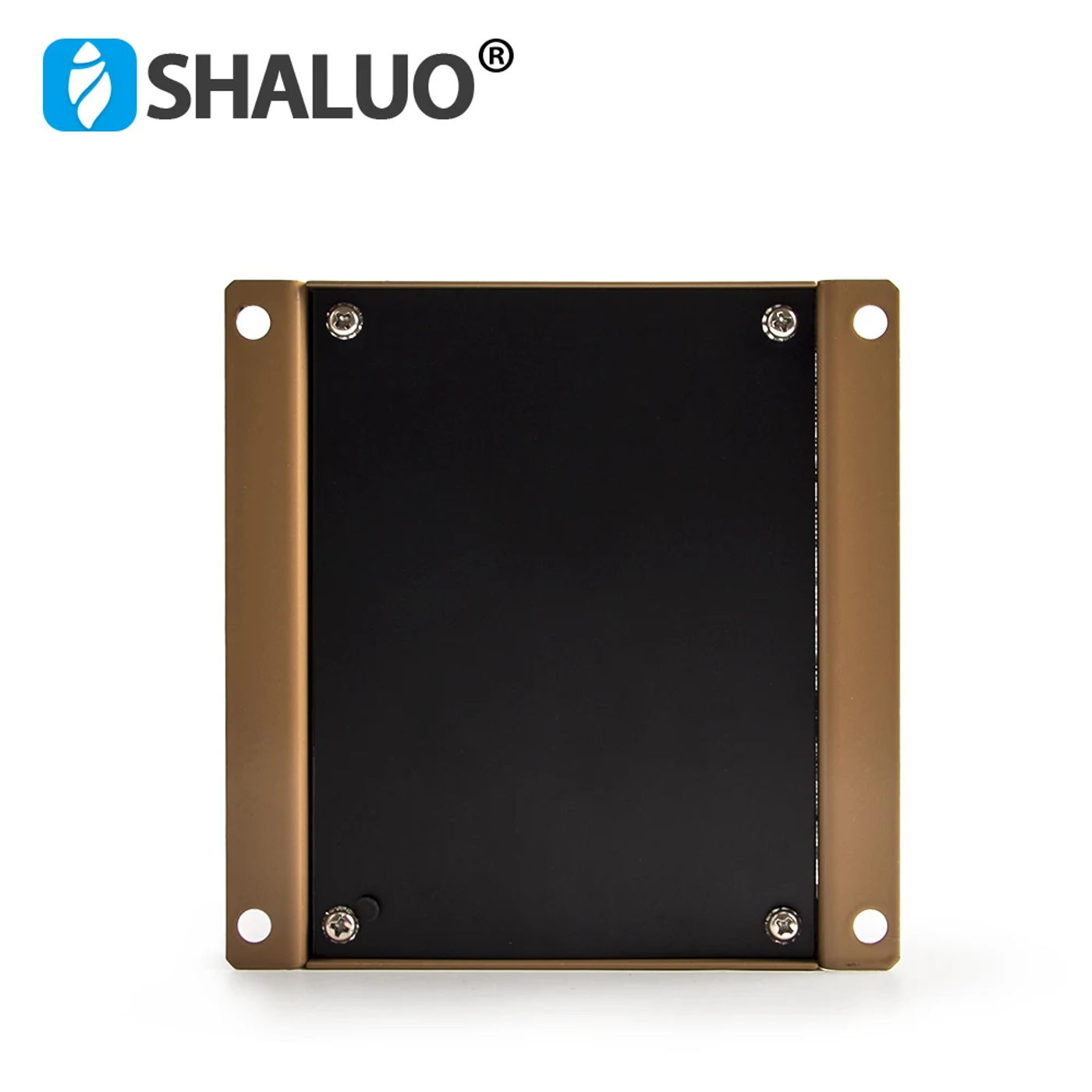

• ESD5500E Generator Speed Controller Module 5500E Electric Speed Governor speed control unit ESD5500E esd5500e diesel generator velocity governor controller ALL PARTS MADE IN CHINA Description---- The ESD5500E/5520ESeries velocity control unit is an all electronic gadget designed to regulate engine speed with rapid and precise reaction brief load changes *ESD5520E is designed for CUMMINS EFC sequence *Isochronous Operation/Steady Stability---- +/-0% or better *Supply----12 or 24 VDC Battery Systems(transient&reverse voltage protected) *Power Consumption----50 ma continual plus acutator recent *Maximum Actuator Current at 25celsius (77celsius F)----10 Amps continuous Input Supply 12 or 24 VDC Battery System (Transient and Reverse Voltage) Polarity Negative Ground (Case Isolated) Power Consumption 50 ma continual plus actuator latest Actuator Current Range @ 25 Deg C - (Inductive Load) Min Amps; Max 10Amps continuous Speed Sensor Signal zero Volts RMS Performance Isochronous Operation/Steady State Stability ±0% or better Speed Range/Governor 1K to 7 Hz continuous Speed Drift with Temperature ±1 Max Idle Adjust CW 60% of set pace Idle Adjust CCW Less than 1200 Hz Droop Range 1-5% legislation Droop Adj Max (K-L Jumpered) four hundred Hz, ±75Hz Per 1 replace Droop Adj Min (K-L Jumpered) 15Hz, ±6Hz Per 1 change Speed Trim Range ±200 Hz Remote Variable Speed Range 500 - 7 Hz Or any part there of Terminal Sensitivity J a hundred Hz, ± 15Hz / Volt @ five K Impedance Terminal Sensitivity L 735 Hz, ±60 Hz / Volt @ sixty five K Impedance Terminal Sensitivity N 148 Hz, ±10 Hz / Volt @ 1 Meg Impedance Terminal Sensitivity P 10 VDC Supply @ 20 ma Max Environmental Ambient Operating Temperature Range -40 to +85 Deg C Relative Humidity Up to 95% All Surface Finishes Fungus Proof and Corrosion Resitant Reliability Vibration 1G at 20 to one hundred Hz Testing 100 percent Functionally Tested Physical Dimensions See outline (FIGURE 1) Weigh1 1 lbs(545 grams) Mounting Any position, Vertical Preferred

•
•
•
•
•
