Description

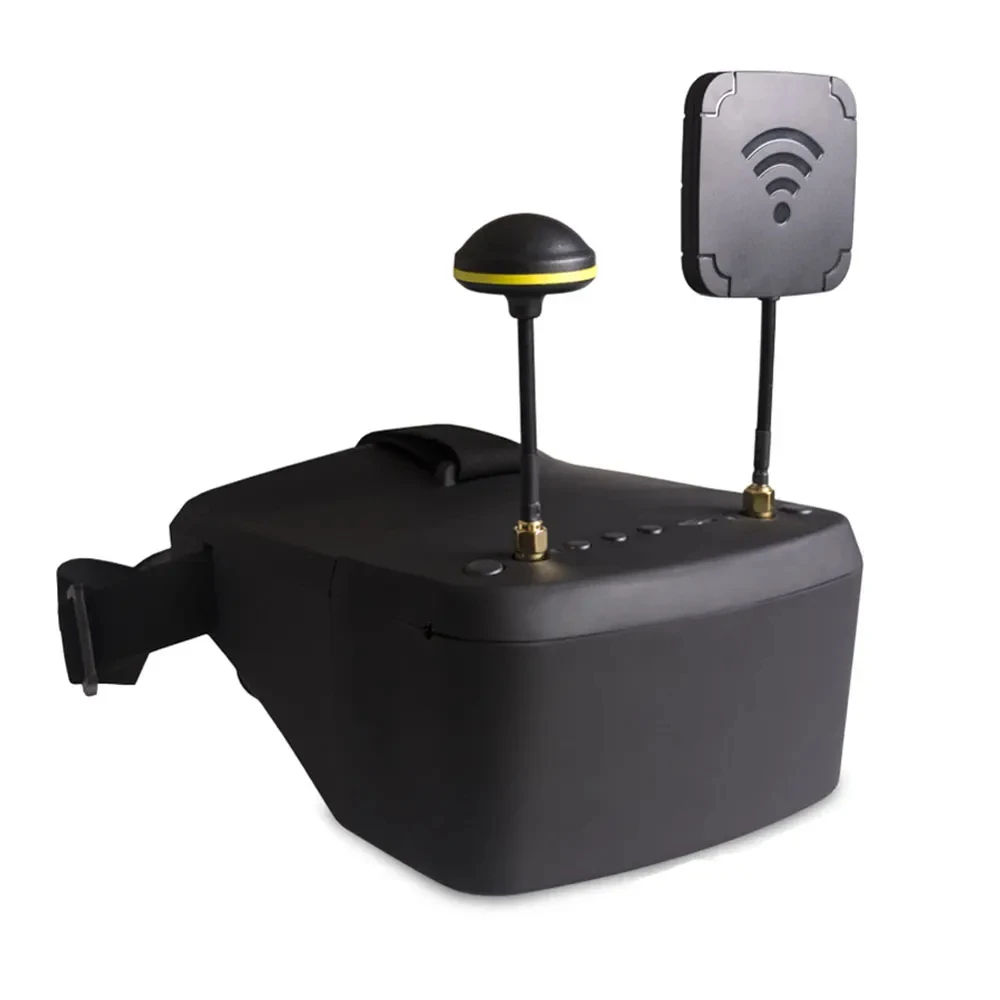

• Description: LS - 800D is an exceptional pair of FPV goggles at a low cost Compared with other FPV goggles, it has a much bigger and clearer demonstrate - 5 inch 854 x 480; its integrated DVR helps up to 128GB micro SD card for recording 720 x 480 movies More importantly, two sets of chips are dedicated to showing and recording respectively, so you are able to have an enjoyable aerial view with maximum fluency Main Features: five inch large screen, 854 x 480 HD display, 82-degree FOV for FPV racing Built-in DVR supports recording 720 x 480 movies and as much as 128GB micro SD card Separated chips for exhibiting / recording, which guarantees no latency and no frame misplaced Maximum signal coverage with twin receivers and antennas + channel auto looking 3 2000mAh LiPo battery presents up to 2h operation time after every single complete fee Specifications: Display Screen size: five inches Resolution: 854 x 480 ( no blur after enlarge through the lens ) Brightness: 450cd / sq. meter Screen type: LED-backlit LCD for outdoors Aspect ratio: 16:9 FOV: eighty two diploma Lens: 3x enhance of the picture DVR Video recording: 720 x 480 ( AVI ) Supported micro SD card: up to 128GB ( Class 10 required ) Connectivity Diversity receiver: 2 x RX5808 Sensitivity: -90dBm Frequency: 5 Number of channels: 40 Auto searching: sure Antenna: 14dBi flat, 14dBi mushroom Interface: micro USB Type-B, 3 video input Power Supply Built-in battery: 3 2000mAh LiPo Operation time: 2 hours Charger: 5V 2A Charge time: 4 hours Specification: Model Name 5 FPV Goggles LCD Screen Screen size:5Inch Resolution:800*480 Display Ratio: 16:9 View Angle: 6 o&;clock Brightness: 300cd/m² with excessive brightness backlight LED Video put off Video time-delay less than 20ms Lens 2 Fresnel Lens, 92% transparent rate no distort of light Interface Antenna 2 X RP-SMA male USB To charge the battery AV Jack External video alerts input or inner Audio sign output Card slot TF-Card, Support up to64G(C10 recommend) DVR REC size: VGA / D1 / HDSelectable REC sound:ON / OFFSelectable REC time: OFF / 3min / 5min / 10minSelectable Frame rate: 30 Frames Compress format: MJPEG Record fileformat:AVI Languages English and Chinese Power Supply Power adapter: DC5V/2A (USB interface) Battery: 3/2000mAh, DVR module ON:Each full payment revive around2 working time DVR module OFF:Each complete fee revive around3 working time Power Consumption: *Normal mode: The gadget operating current of 400mA at 3; *Record Mode : The machine working current of 620mA at 3; * Built-in battery maximum price latest of 500mA; Wireless Frequency Table(MHz) CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8 Band A 5865 5845 5825 5805 5785 5765 5745 5725 Band B 5733 5752 5771 5790 5809 5828 5847 5866 Band E 5705 5685 5665 5645 5885 5905 5925 5945 Band F 5740 5760 5780 5800 5820 5840 5860 5880 Band R 5658 5695 5732 5769 5806 5843 5880 5917 Body Dimension:180mm * 140mm *84mm Weight: 393g(with headband, no longer incorporated antennas)

•
•
•
•
•
