Description

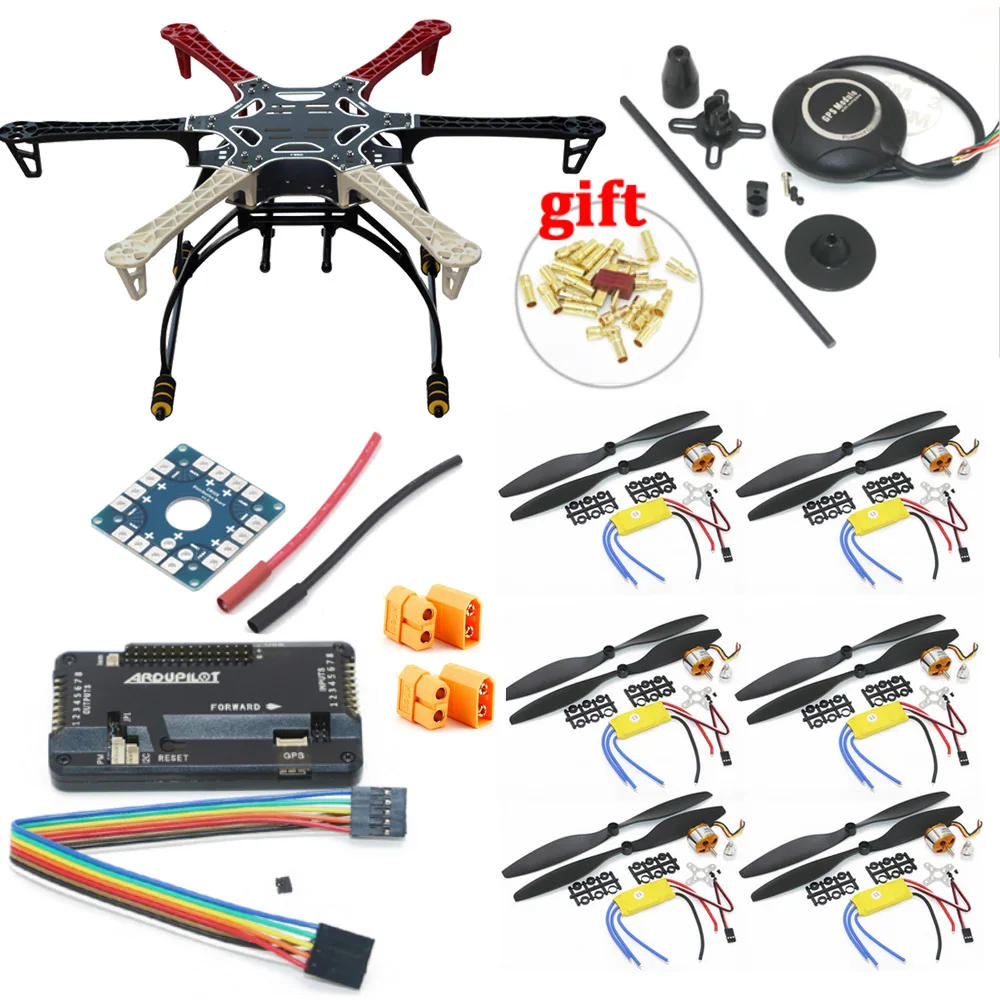

• HJ550 is a chain of "Firewheel" Multicopter body from HJ It is very appropriate for RC newbie althougn HJ550 have uncomplicated design, with built-in circuit board for ESC strength distribution, seldom components yet stable structure to let user extra easier for upkeep The mounting holes design can match for various controller board e KK, FF, MK, MWC in the RC market, it would fulfill diverse type of user want e FPV Please note that the thickness of the four motor hands are 5mm, pls use M3x8 screw for motor solving Recommanded Combination: Motor: A2212/2216/2814 800KV~1000KV ESC: 20A ~ 30A Propeller Size: 10x4 in or 10x4 in Battery: 4s 2000mah ~ 3600mah Lipo Material: glass fiber + ABS plastic Color: crimson + black + white Weight: 424 grams Wheelbase: 550 mm Takeoff weight: 1200 - 2400 grams Propeller: 9443, 1045 Recommended battery: 3S - 4S LiPo Recommended motor: 2212, 2216 Recommended ESC: 20A -40A, Complete set includes: Arm x 6+ Upper hide x 1+ Lower cover x 1+ Force arm screw 36+ Motor screw 24 APM V2 description: - This version removes the 1 6P SM06B GPS interface of V2 old version, and alter it into DF13-4P I2C exterior compass interface - Put DF13-5P GPS interface with exterior compass interface, handy for the relationship of GPS and externalcompass - V2 I2C interface adjustments to multifunctional MUX interface - Modified version added isolation resistor, when the OSD interface used with telemetry, the interfaces is efficiently avoided - V2 edition three strength delivery adopts IPS79133, 6V face up to voltage, output current 100mA, deserve to delivery power for 6 IC, barely insufficient power delivery ability, smooth to be burnt dwon The new edition adopts US LP2985-3, 16V withstand voltage, extra reliable, redcucing the possibility of Bad Gyro fitness APM V2 Flight Controller - Needle: staight - Power supply: LP2985-3 - Max voltage: 16V - Add a 47uF tantalum capacitor - Port: MUX (UART0, UART2, mnnI2 and OSD are optional, OSD is the defaulted output) Jumper cap choose: - Built-in compass: plug the jumper cap within the MAG pin header - External compass: pull up the jumper cap from the MAG pin header

•
•
•
•
•
